Industrial Standalone 10V/220V ethylene oxide(ETO) Chlorine(CL2) / Ammonia(NH3) gas detector/alarm Analyzer
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Model Number | QB2000F |
| Price | $358.00/Pieces >=1 Pieces |
| Packaging Details | in carton |
| Supply Ability | 5000 Piece/Pieces per Month |
| Special Features | Remote Control | Usage | Auto |
|---|---|---|---|
| Application | Chemical Factory, Gas Station, Gas Monitoring System | Power | AC220V, AC110V |
| Screen | 128*64 Dot Matrix Ultra-large High Bright Liquid-crystal Display | Gas | Ethylene Oxide(ETO) Chlorine(CL2) / Ammonia(NH3) |
| Alarms | 100db Sound And 3 Colors LED Flashes | Material | Cast Aluminum |
| Relays | 4 Relays For Valve And Other Device | Name | 120*80*40mm |
| Net Weight | 1600g | Port | Shenzhen, Tianjing, Qingdao |
Industrial Standalone 10V/220V ethylene oxide(ETO) Chlorine(CL2) / Ammonia(NH3) gas detector/alarm Analyzer

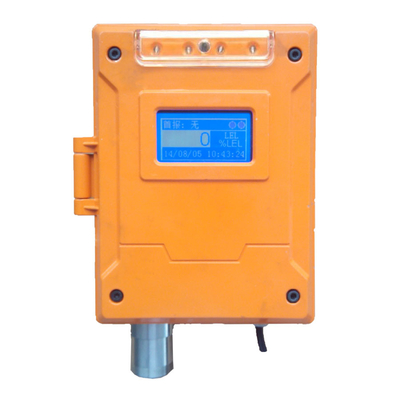

QB2000F All-in-One wall-mounted gas alarm is designed to monitor the gas leakage in the non-explosive environment continuously by adopting imported electrochemical gas sensors for toxic gas, oxygen while catalytic combustion sensor for combustible gas.

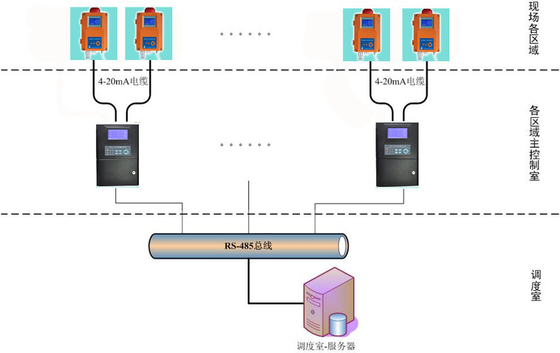

The alarm controller has excellent sensibility, quite good accuracy, linearity and receptivity; Big English LCD displays the real-time concentration of the leakage gas. With 2 relay output, once the concentration exceed the preset alarm point(threshold) it will start the acoustic-optical alarm and it can drive the external equipment like exhaust fans.; Through 4-20mA signal output, it can be directly connected into the factory DCS system, through RS4845 signal output, it can be connected with factory’s principle computer.
Adopts advanced 16 digit ultra-low power consumption embedded micro controller.
128*64 dot matrix ultra-large Chinese liquid-crystal display
Adjustable H-alarm and L-alarm values
Displaying the time of first alarm.
Real-time display
Replaceable sensor module design
Automatic calibrating to ensure the detecting accuracy.
200 pieces alarm record can be stored automatically
Password management
The internal battery backup can work continuously for 24 hours(no alarming status)
Range: refer to the attached chart
Detected Gas: Combustible gas, toxic gas as well as oxygen.
Accuracy: +-3% F.S
Response time: T90<30S.
Display:128*64 dot matrix ultra-large high bright liquid-crystal display
Alert: high bright LED, 100dB buzzer increases the frequency with the increasing of leakage gas value.
Alarm set-points: The first alarm(low alarm) the alarm value can be set by users.
The second alarm(high alarm) the alarm value can be set by users.

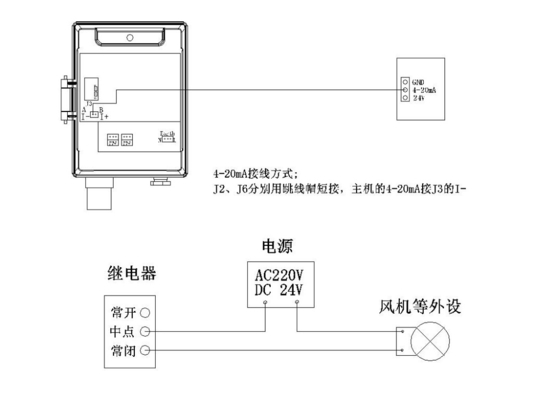

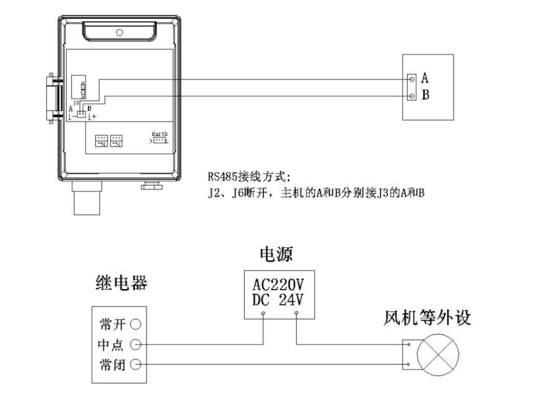

Signal output:4-20mA or Rs485(optional)
Relay Output: 2 relay output, AC220V output(AC220V 2A)
Working temperature:-20-50℃
Working humidity:<=95% RH
Power supply: AC220V+-15%,50HZ
The internal battery backup can work continuously for 24 hours(no alarming status) but more than 8hours for combustible gas.(Optional)
Ingress protection: IP65.
Weight: about 1200g(including the battery)
| Detector Model | Gas Detected | Range | Range Optional | Resolution | Responding Time |
| CO Detector | CO | 0-1000ppm | 0-500/2000/5000ppm | 1ppm | 20s |
| O2 Detector | O2 | 0-25%VOL | 30%VOL | 0.1%VOL | 20s |
| O3 gas Detector | Ozone | 0-100ppm | 0-10ppm | 0.01ppm | 20s |
| H2S gas Detector | H2S | 0-100ppm | 0-50/200/1000ppm | 1ppm | 30s |
| H2 gas Detector | H2 | 0-1000ppm | 0-5000ppm | 1ppm | 30s |
| Chlorine gas Detector | CL2 | 0-20ppm | 0-10/100ppm | 0.1ppm | 30s |
| Ammonia gas Detector | NH3 | 0-100ppm | 0-50/500/1000ppm | 1ppm | 30s |
| SO2 Gas Detector | SO2 | 0-20ppm | 0-50/1000ppm | 0.1ppm | 30s |
| NO gas Detector | NO | 0-250ppm | 0-500ppm | 0.1ppm | 30s |
| NO2 gas Detector | NO2 | 0-20ppm | 0-50/100ppm | 0.1ppm | 30s |
| CH2O gas Detector | CH2O | 0-50ppm | 0-5/10ppm | 0.01ppm | 30s |
| HCL gas Detector | HCL | 0-20ppm | 0-20/100ppm | 0.5ppm | 30s |
| combustible gas Detector | LPG, LNG, methane | 0-100%LEL | 0-100%LEL | 1% | 30s |
| For the gas that is not covered here though, please don’t hesitate to contact us. | |||||
