QB2000 controller panel with auto storage 500 records capable of managing gas detector for security and protection
| Place of Origin | Henan, China |
|---|---|
| Brand Name | cce |
| Model Number | QB2000 |
| Price | $100.00 - $300.00/Sets |
| Packaging Details | Carton box with gross weight 5.5kg |
| Supply Ability | 5000 Set/Sets per Month |
| IP Grade | IP54 | Alarming Point | Set By Yourself |
|---|---|---|---|
| Size | 25*36*10cm | Weight | Around 4.5kg |
| Power Suppy | AC220V 50HZ | Detector Controlled | 1-24 Detectors Are Available |
| Transmission Distance | <1000m | Color | Black Or Whilte |
| Relay Output | No More Than 3 | Product | QB2000 Controller Panel |
| Port | Qingdao/Shanghai/Tianjin |
QB2000 controller panel with auto storage 500 records capable of managing gas detector for security and protection
QB2000 controller panel is a multi-point monitoring of the latest design with simple operation and it combines with any gas detectors to form an industrial gas detection system.
QB2000 controller panel embeds micro processor as control unit, when the detected gas density in the air reaches or exceeds the pre-set value, the controller will give out audio-visual alarm immediately to remind you take safety precautions and alert the corresponding valve, exhauster and other equipment to avoid explosion, fire, toxic gases to protect the safety of life and treasures.
This system applies to metallurgy, petrol, petrifaction, chemistry, light industry, coking, municipal administration, gas, pharmaceutical, sewage dealing and many other special industry and field that need proofing for fire, explosion, and toxic gas leakage.
Characteristics of QB2000 controller panel:
1.high-performance sensor
2.128*64 dot matrix big screen liquid digital display
3.With English Instruction Manual and pictures easy to operate various gas detector together to fix display the detected gas density in distance high sensitivity, and quick response
4.Automatic compensation for temperature drift and time drift
5.The up and low alarm points of each channels can be set separately 8 channel 4-20mA signals output
6. RS485, RS232 communication port can upload data to computers & 4 Relay output and the relay setting is programmable
Technical index of QB2000 controller panel:
| Product name | QB2000 controller panel |
| Model | QB2000 |
| Capacity | 1-8 detector is available |
| Operation temperature | -20~+50 degree |
| Humidity | <90%RH No condensation |
| Acuracy | ≤±3% F.S |
| Response | T90<30s |
| Alarm | Audible and visual alarm > 110db |
| Alarm values | The first alarm value The alarm value can be set by users. The second alarm value The alarm value can be set by users |
| Alarm output | 2 relay output(AC 200V 3A resistive load) |
| Power supply | AC220v, 50HZ < 4W |
IP grade | IP54 |
Explosion-prrof grade | EX D ib II CT6 |
| Size | 25*38*10cm |
| Net weight | Around 4.5kg |

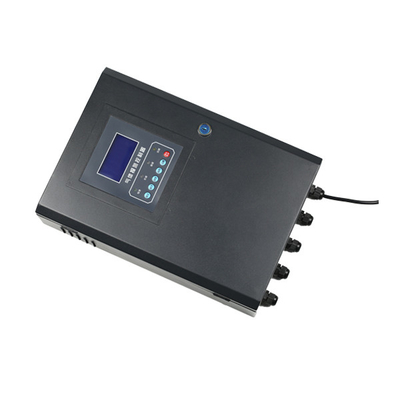

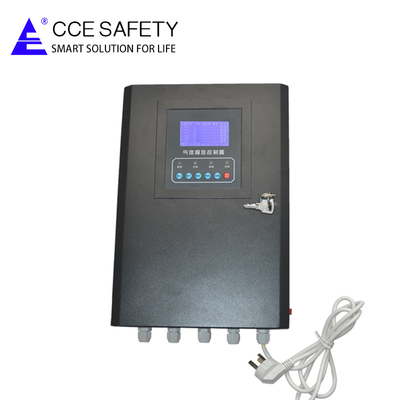

single chanel QB2000 controller panel
multi chanel QB2000 controller panel
Henan Chicheng Electric Co., Ltd is a ISO9001-2000 certified high-tech manufacturer in Zhengzhou, Henan province, marketing a range of portable and fixed gas detection products, industrial process automation control, safety protection and analytical instrument.
We are just looking for the supplier who would like to cooperate us for win-win strategy. We'd like to build business relationship with the power generating plant,chemical industry,oil storage dept.,sewage treatment dept.,ship-building factory,glass factory,oil exporation ,oil and gas transferring,oil refinning,metallurgy,mining well,turnel,underground utilitizes.
After-sale service:
a.All products will have been strictly Quality Checked before packing.
b.All products will be well packed before shipping.
c.All our products have 1 year warranty.And we sure the product will be free from maintenance within warranty period.
a. Customer brand(law allowance) can be made on the sticker.
b. Customized gas detection tools are welcomed
c. Customized color box.
d. Any your idea gas detection tool we can help you to design and put it into production

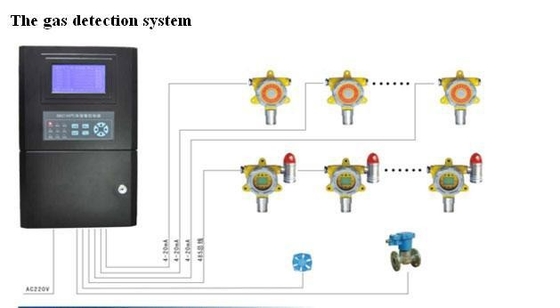

QB2000 controller panel controls and monitors the gas detectors. When the concentration of gas exceeds the preset value, both detector and qb2000 controller panel alarms. And at the same time, qb2000 controller panel drive exhant fan and other security device to prevent the explosion,fire or toxic accident.
And we have QB2100 type,whose function is more enormous than qb2000 type.
