2019 New Touch Screen Fire Alarm Control Panel QB3100 for Gas Detectors
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Certification | CE |
| Model Number | QB3100 |
| Price | $300.00 - $800.00/Sets |
| Packaging Details | standard in carton |
| Supply Ability | 5000 Set/Sets per Month |
| Type | Gas Detection Control Panel | Customized Support | OEM, ODM |
|---|---|---|---|
| Capacity | 1-16 Detectors Is Available | Digital Signal | 4-20mA Or RS485 |
| Response | T90<30s | Display Mode | LED Digital Display |
| Alarm Output | 2 Relay Output(AC 200V 3A Resistive Load) | Power Supply | AC220v, 50HZ < 4W. |
| IP Grade | IP44 | Size | 25x38x10cm |
| Net | 3.0kg | Port | Chinese Main Ports |

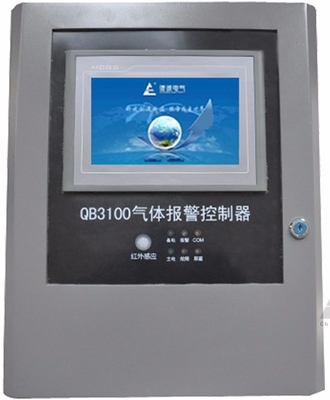

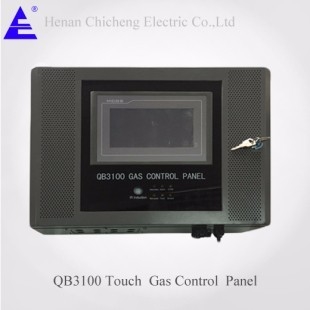

QB3100 Touch Screen Fire Alarm Control Panel for Gas Detectors
QB3100 is a new fire alarm control panel with touch screen, easy for operation and can be used with the gas detectors. The gas touch-control panel and the detectors make up of an industrial gas alarm system. The gas touch-control panel has RS485 signal or 4-20mA signal, so that it can be connected with the PC-PLC for remote monitoring, local monitoring, and field monitor, which improve the monitoring real-time and accuracy.
Features:
- With 32 digit embedded micro processor, all the day to day functions are available from the front panel.
- System is expandable. For 4-20mA analogue signal the capacity can be 16 channels and for RS485 signal, the capacity can be 1 to 48 channel. With unique bar graph display per channel provides an instant representation of gas concentrations
- Intellectual Management: the gas controller integrates fully with different gas detector, different range and different gas unit.
- Alarm set-points can be set per channel individually.
- Intelligent system for zero calibration online.
- Search for the online detectors automatically.
- 4 non-contact relay output, programmable
- 999 records of alarm, failure
- Alarm mute and alarm reset
- 1 channel of RS485 output for connection with the upper system.
- Mounted way: 19" rack mounted or wall mounted
- Unit: %LEL, ppm, %VOL
- Accuracy: +- 3%F.S
- Response:<=30S
- Display:240*128 dot matrix LED display actual data and system state
- Alarm : LED displays the alarm and failure, audible alarm for gas alarm and system failure.
- Output signal: Non-potential contact(3A/AC220V)
- Working ways: the trouble-free operation
- Environment: Temperature:-10~ 50 degree, humity:<=95%RH
- Power supply: AC220V+ - 15%
- Standby power: 5AH continuous power
- Power: <=30W
- Cable required: >= RVVP 2*1.5mm2, 3*1.5mm2 or 4*2.5mm2.
- Distance: <=1000m
- Size: 280*450*90mm
- Net:5.5kg
Established in 2004, Henan Chicheng Electronics Co.,Ltd is speclized in the R&D, manufacture, marketing of gas detector device in China, we can always supply you professional technical support and solutions.
With ISO9001-2000 Certified, Chicheng products are mainly divided into household gas alarm, portable single/multi gas detector, industrial fixed gas detecting transmitter, etc.
Henan Chicheng has a mission to offer proper device and excellent all-round services to customers from automotive production plants, petrochemical, gas, pharmaceutical and metallurgical industries.
Sincerely welcome customers worldwide. OEM and ODM welcome !
