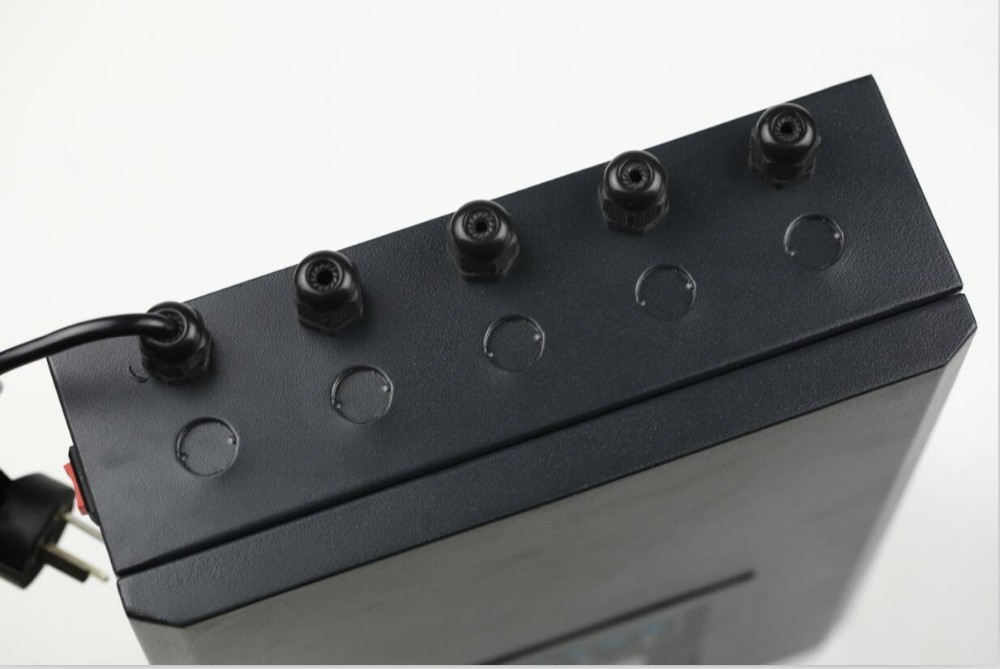

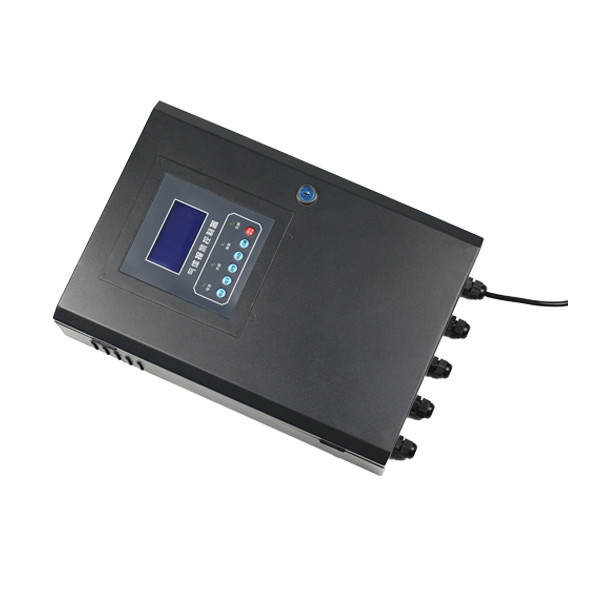

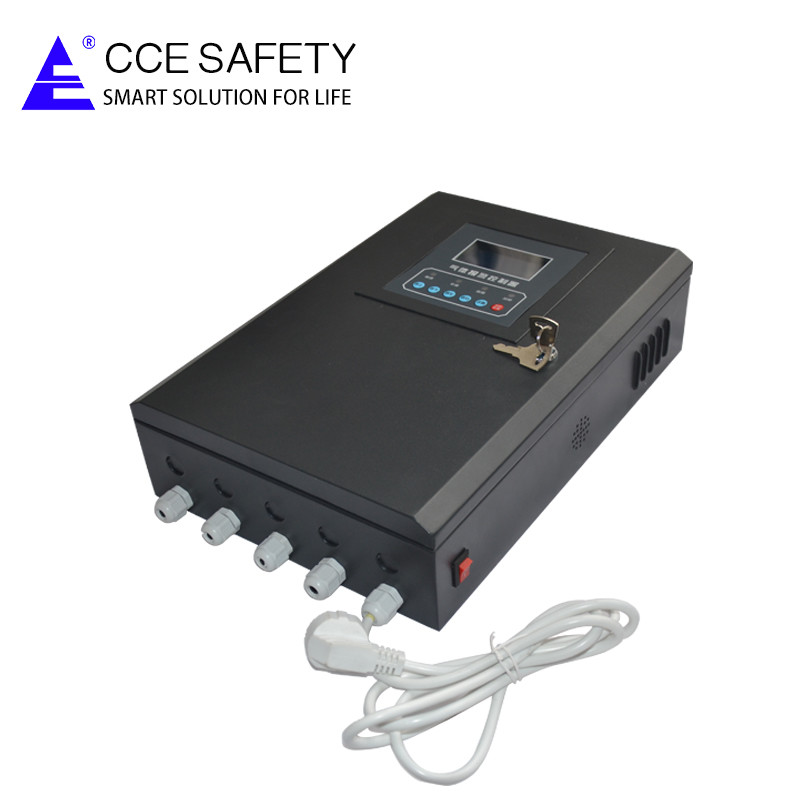

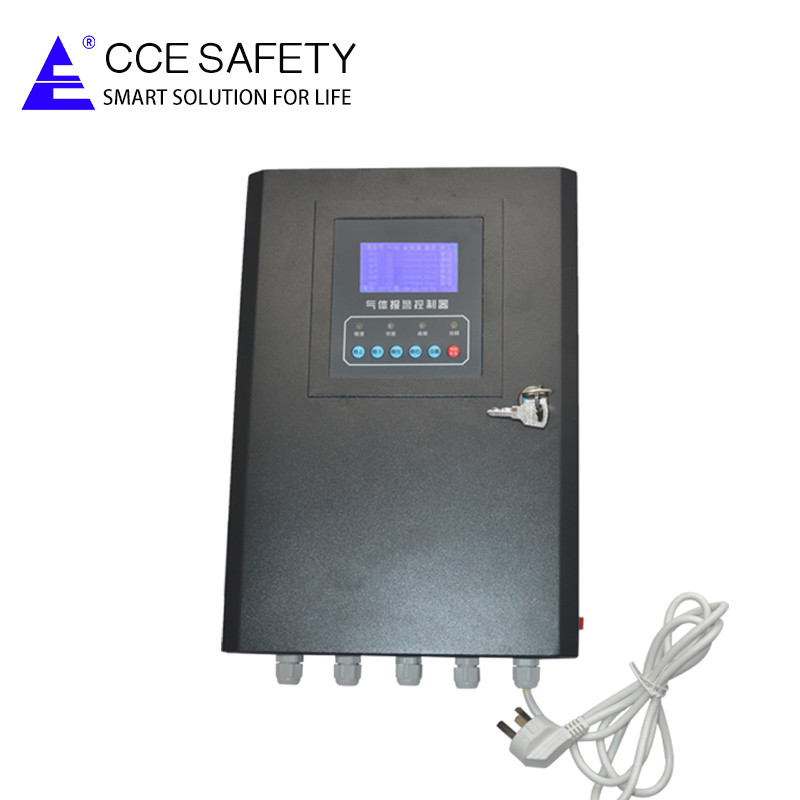

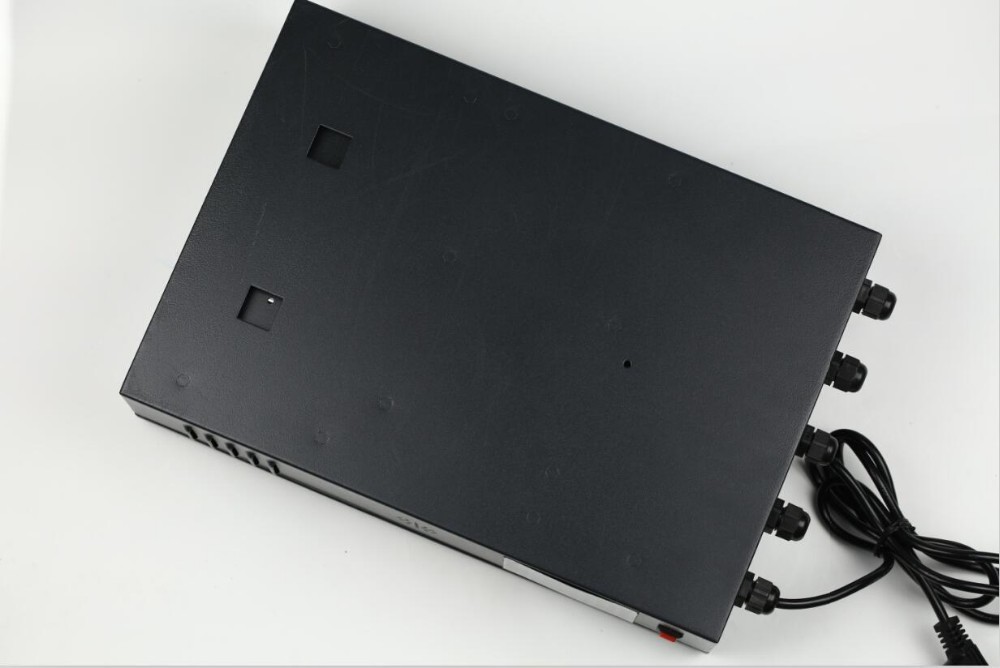

QB2000 Gas detection system alarm controller-Multi-channels
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Chicheng |
| Certification | CE |
| Model Number | QB2000 |
| Price | $150.00 - $350.00/Pieces |
| Packaging Details | in standard carton package with foam pad |
| Supply Ability | 5000 Piece/Pieces per Month |
| Port | China Main Port |
|---|
QB2000 gas alarm controlleris a multi-point monitoring of the latest design with simple operation and it combines with any gas detectors to form an industrial gas detection system. This system controller embeds micro processor as control unit, high-performing catalytic air-sensitive element, high-precision imported electrochemical sensor as detector which has high sensitivity and quick response. When the detected gas density in the air reaches or exceeds the preset value, the controller will give out audio-visual alarm immediately to remind you take safety precautions and alert the corresponding valve, exhauster and other equipment to avoid explosion, fire, toxic gases to protect the safety of life and treasures.
This system applies to metallurgy, petrol, petrifaction, chemistry, light industry, coking, municipal administration, gas, pharmaceutical, sewage dealing and many other special industry and field that need proofing for fire, explosion, and toxic gas leakage.
Characteristics:
- high-performance sensor
- 128*64 dot matrix big screen liquid digital display
- With English Instruction Manual and pictures easy to operate
- various gas detector together to fix
- display the detected gas density in distance
- high sensitivity, and quick response
- Automatic compensation for temperature drift and time drift
- The up and low alarm points of each channels can be set separately
- 8 channel 4-20mA signals output
- RS485, RS232 communication port can upload data to computers
- 4 Relay output and the relay setting is programmable.
Technical Index:
Capacity: 1-48 detectors is available
8 detector of 4-20mA
48 detectors of RS485output
Detect scope:see attached chart
Detected gases: Combustible gas, toxic gas and oxygen
Operation condition:-20~+5 degree; Humidity<90%RH
Accuracy: ≤±3% F.S
Response time: T90<30s
Display mode: LED digital display
Alarm: Audible and visual alarm > 110db
Alarm values: The first alarm value The alarm value can be set by users.
The second alarm value The alarm value can be set by users.
Transmission cable(RVVP): 2-wires type detector 2x1.5mm2 length the transmission distance:<1000m
3-wires type detector 3x1.5mm2 length the transmission distance:<1000m.
Alarm output: 2 relay output(AC 200V 3A resistive load)
Power supply:AC220v, 50HZ < 4W.
IP grade : IP44
Size: 25x38x10cm
Net: 3.0kg
| Name | Detected Gas | Detecting Scope | Selectable Range | Distinguishability | Response Time |
| CO Detector | CO | 0-1000PPm | 0-500/2000/5000PPm | 1PPm | ≤20 s |
| O2 Detector | O2 | 0-25%VOL | 30%VOL | 0.1%vol | ≤20 s |
| O3 Detector | O3 | 0-5PPm | 0-10PPm | 0.01PPm | ≤20 s |
| H2S Detector | H2S | 0-200PPm | 0-50,100,1000PPm | 1PPm | ≤30 s |
| H2 Detector | H2 | 0-1000PPm | 0-5000PPm | 1PPm | ≤30 s |
| CL2 Detector | CL2 | 0-20PPm | 0-10,100PPm | 0.1PPm | ≤30 s |
| NH3 Detector | NH3 | 0-200PPm | 0-50,100,500PPm | 1PPm | ≤30 s |
| SO2 Detector | SO2 | 0-100PPm | 0-50,1000PPm | 0.1PPm | ≤30s |
| NO Detector | NO | 0-100PPm | 0-500PPm | 0.1PPm | ≤30s |
| NO2 Detector | NO2 | 0-100PPm | 0-20,50PPm | 0.1PPm | ≤30 s |
| CH2O Detector | CH2O | 0-50PPm | 0-5,10PPm | 0.01PPm | ≤30 s |
| HCL Detector | HCL | 0-50PPm | 0-20,100PPm | 0.5PPm | ≤30 s |
| EX Detector | EX | 0-100%LEL | 0-100%LEL | 1% | ≤30 s |
| Please contact our company for the information for the gas types and parameters not listed here | |||||
