Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output

  • Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output
  • Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output
  • Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output
  • Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output
  • Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output
  • Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output
  • Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output
Place of Origin Henan, China
Brand Name chicheng
Model Number QB2000N
Price $200.00 - $400.00/Pieces
Packaging Details in standard export carton package
Supply Ability 5000 Piece/Pieces per Month
Product Details
Type Industry Gas Detector Usage Online Fixed CO, Ammonia,lpg Gas Detector
Material Stainless Steel Output Signal 4-20mA Or RS485
Ex-proof Grade Ex DIICT6 GB IP Grade IP66
Sensor Catalytic Combustion And Electro-chemical Sensor Working Temperature -20~60 Degree
Detected Way Natural Diffusion Size Of External Carton 27*23*13cm
Warranty Free Calibration And Warranty Within A Year Port Tianjin, Qingdao, Shanghai, HK Etc.
Leave a Message
Product Description
QB2000N is a fixed gas detecting transmitter, with 4-20 mA or RS485 ModBus RTU output proportional to the gas leakage concentration with original imported catalytic combustion or electrochemical sensor. It monitors gas leakage by natural diffusion.

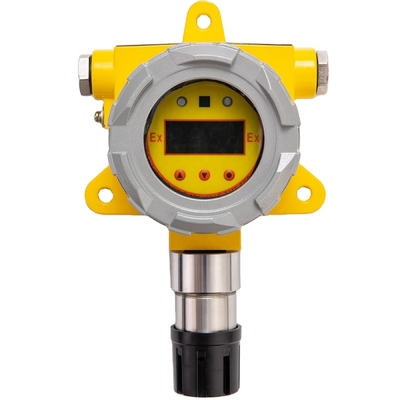

Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 0
Features:
♦4-20mA analog output for direct communication to DCS system ♦Relay output for connecting external device ♦LCD display screen(LED display screen optional) ♦Advantage: Sensor module(block) design on -spot replacement s and automatically distinguish sensor fault and current display fault simultaneously. ♦Password verification for repeat operation, avoid fault operations. ♦-40～+70℃ following compensation for accurate detecting. ♦Twp grade visual alarms on-site and Relay (connected with audible/visual alarms or drive exhaust device). ♦User-selectable alarm setpoint(s).
Detailed Images

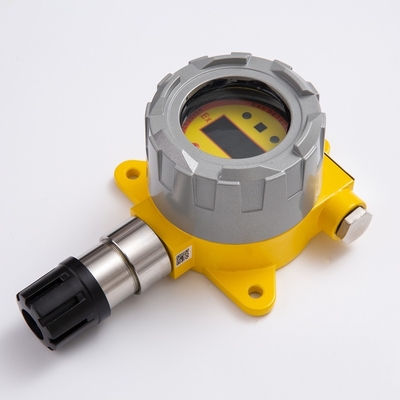

Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 2

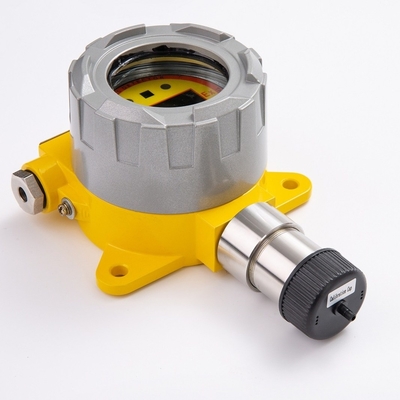

Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 4

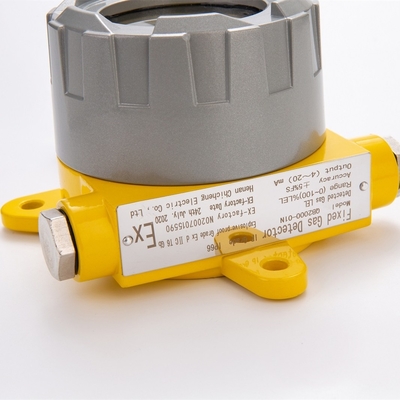

Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 6

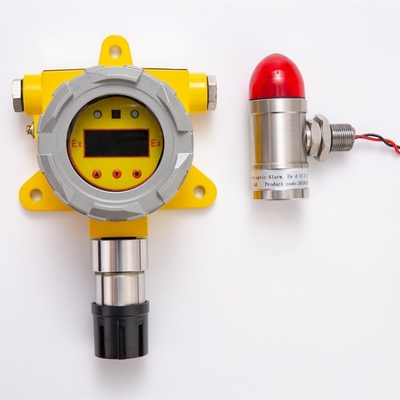

Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 8
Model
QB2000N fixed Ozone gas detector
Sensor type
Honeywell/CITY gas sensor
Detected gas
0-30%VOL gas (other gas range, please check the table)
Resolution
0.1%VOL
Operating Temperature
-20℃~+60℃
Output signal
4 to 20mA standard signal(RS485 output optional)
Power supply
16~30V DC
Mounting Screw thread
M20*1.5 or G1/2.
Explosion proof class
Ex d IICT6Gb
Certificate
CE/ATEX/SIL/CNEX

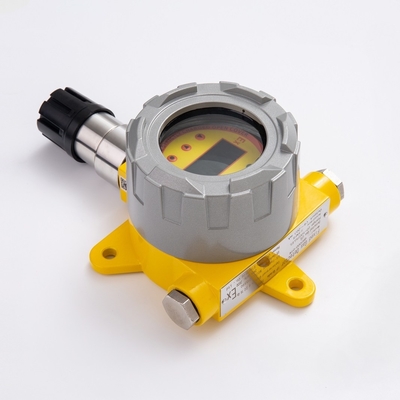

Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 10

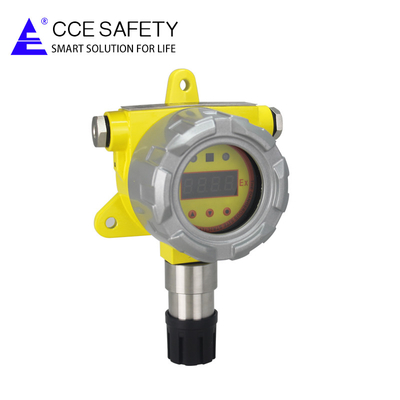

Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 12
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 14
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 16
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 18
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 20
Recommend Products
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 22
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 24
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 26
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 28
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 30
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 32
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 34
Installation cases
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 36
Parking lot case
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 38
For refrigerant gas detection
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 40
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 42
For chemical factory
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 44
For coal mine case
Online Fixed Ammonia gas, lpg gas, carbon monoxide leak detector monitor with 4-20mah relay output 46
FAQ
Q1:Are you a trading company or manufacturer ? A1:We aremanufacturer.
Q2:What about the payment method? A2:T/T, Paypal, Western Union, L/C is available.
Q3:Does your company accept customization? A3:We do customizing service for customers.
Q4:What about the Shipment? A4:We'll choose proper transportation mode based on the weight of goods, usually arrange shipment by air express such as DHL,FEDEX,TNT or UPS.
Q5:What about after-sale service? A5:12 months warranty for all kinds of products.

Q6.Do you have any MOQ limit? A6: We don’t have a MOQ limit, 1 pc are also welcome.
