Gold and silver mining industry online toxic HCN gas leak detector transmitter with high accuracy
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Chicheng |
| Model Number | QB2000N |
| Price | $260.00 - $340.00/Pieces |
| Packaging Details | in standard export carton package |
| Supply Ability | 5000 Piece/Pieces per Month |
| Detected Gas | HCN Gas | Sensor | Electro-chemical Gas Sensor |
|---|---|---|---|
| Relay | 2 Relay | Working Temperature | -20~60 Degree |
| Output Signal | 4-20mA Or RS485 | Ex-proof Grade | Ex DIICT6 GB |
| Certificate | ATEX/CE/SIL/CNEX | IP Grade | IP66 |
| Size Of External Carton | 27*23*13cm | Warranty | Free Calibration And Free Warranty Within A Year |
| Port | Tianjin, Qingdao |

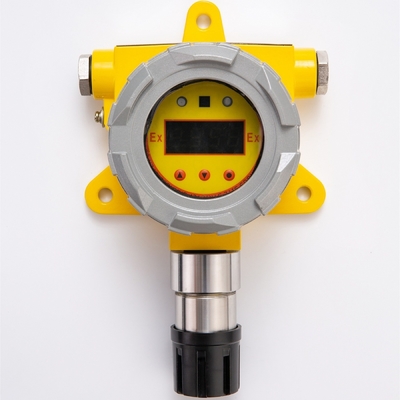

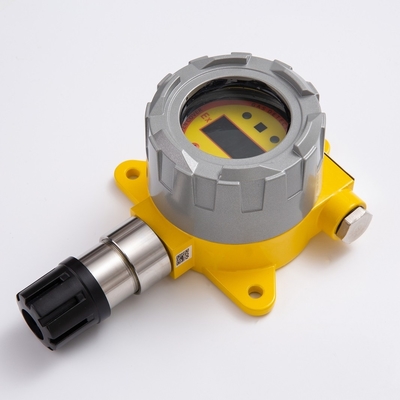

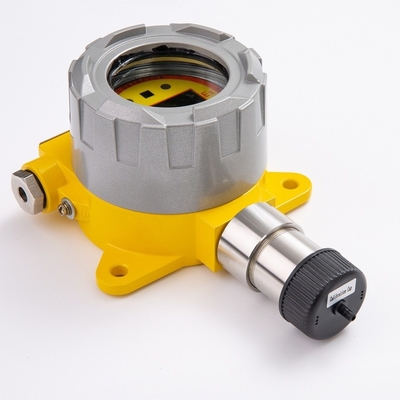

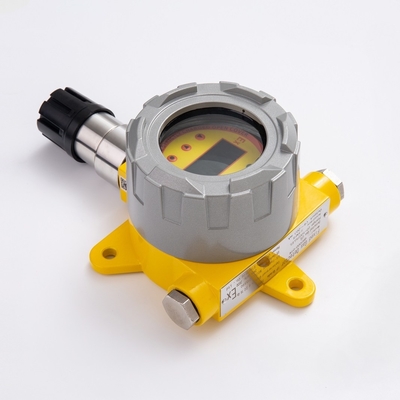

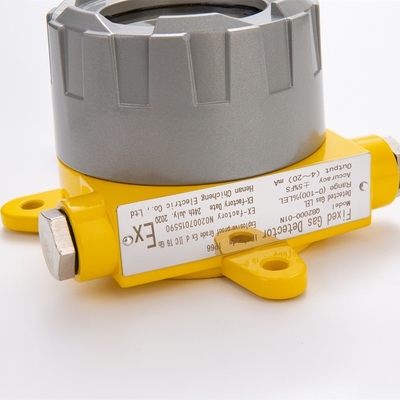

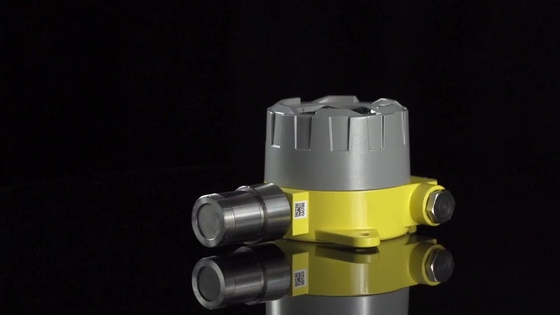

Gold and silver mining industry online toxic HCN gas leak detector transmitter with high accuracy
Product Description
Gold and silver mining industry online toxic HCN gas leak detector transmitter with high accuracy QB2000N is Industrial grade LCD/LED gas leack detector, with 4-20 mA or RS485 ModBus RTU output proportional to the gas leakage concentration with original imported electro-chemical sensor. It has been widely used in brewery, petrol, chemistry, metallurgy, artifice, gas transportation, biological medicine and water procession etc.
The online gas detector monitors gas leakage by natural diffusion.It can be directly connected with DCS systems or Central unit. With relay output, once the concentration exceed the preset alarm point(threshold), it will start the acoustic-optical alarm on the central unit and drive the external equipment like exhaust fans.
Features
- Changable Sensor mould
- Relay output for connecting external device
- LCD display screen(LED display screen optional)
- Password verification for repeat operation, avoid fault operations.

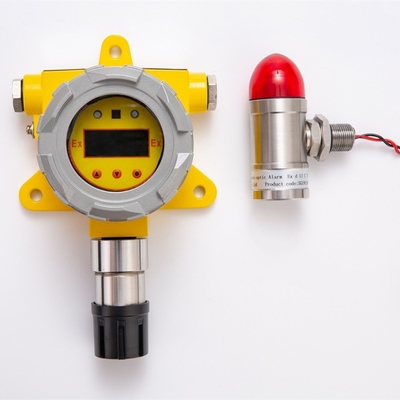

- Second grade visual alarms on-site and Relay(connected with audible/visual alarms or drive exhaust device).
- selectable alarm setpoint.
Technical Specification
- Sensor type: Electrochemcial gas sensor.
- Detected HCN gas range:0-20ppm
- Resolution:0.1ppm
- Accuracy:≤ ± 3% F.S
- Response time:T90<30s.
- Output signal: 4 to 20mA standard signal(RS485 output optional)
- Power supply: 16~30V DC.
- Ambient Parameter: Temperature:-20°C~+60°C.
- Humidity: < 90%(without condensating)
- Type of cable: 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2 for 4-20mA signal OR 4*1.5mm2 for RS485 signal
- Transmition Distance:<=1000meter
- Mounting Screw thread: G1/2.
- Weight:1200g.
- Anti-explosion Grade: Ex d IICT6Gb
- Certificate:ATEX/ SIL/CNEX/ CE
- Protection Grade:IP66.
Gas Reference Table
| Detector Model | Gas Detected | Range | Range Optional | Resolution | Responding Time |
| CO Detector | CO | 0-1000ppm | 0-500/2000/5000ppm | 1ppm | 20s |
| O2 Detector | O2 | 0-25%VOL | 30%VOL | 0.1%VOL | 20s |
| O3 Detector | O3 | 0-10ppm | 0-100ppm | 0.01ppm | 20s |
| H2S Detector | H2S | 0-100ppm | 0-50/200/1000ppm | 1ppm | 30s |
| H2 Detector | H2 | 0-1000ppm | 0-5000ppm | 1ppm | 30s |
| CL2 Detector | CL2 | 0-20ppm | 0-10/100ppm | 0.1ppm | 30s |
| NH3 Detector | NH3 | 0-100ppm | 0-50/500/1000ppm | 1ppm | 30s |
| SO2 Detector | SO2 | 0-20ppm | 0-50/1000ppm | 0.1ppm | 30s |
| NO Detector | NO | 0-25ppm | 0-500ppm | 0.1ppm | 30s |
| NO2 Detector | NO2 | 0-20ppm | 0-50/100ppm | 0.1ppm | 30s |
| CH2O Detector | CH2O | 0-50ppm | 0-5/10ppm | 0.01ppm | 30s |
| HCL Detector | HCL | 0-20ppm | 0-20/100ppm | 0.5ppm | 30s |
| Combustible Gas Detector | EX | 0-100%LEL | 0-100%LEL | 1% | 30s |
| For the gas that is not covered here though, please don’t hesitate to contact us. | |||||
Product Details
Company Introduction
More than 10 years industrial experience ODM & OEM service
1-3 year warranty 3000 square meter factory area
10 production lines 50 experience R&D engineers
Packing & Delivery
Packaging: Carton box or Aluminum box on your requirement
Delivery: Sample order in stock and 3-7 working days for bulk production.
Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
FAQ
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
d. Your other ideas about gas detection tools, we can help you design and put them into production.
e. Different language versions, such as English, Russian, Chinese, etc. according to customers requirement.
———————————————————————————————————————————
