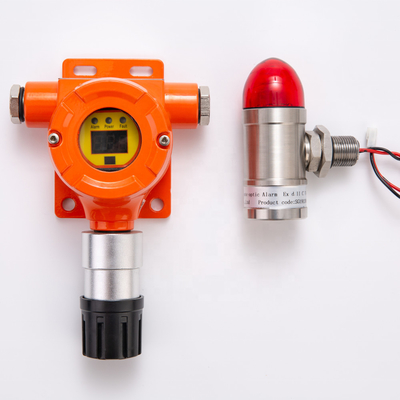

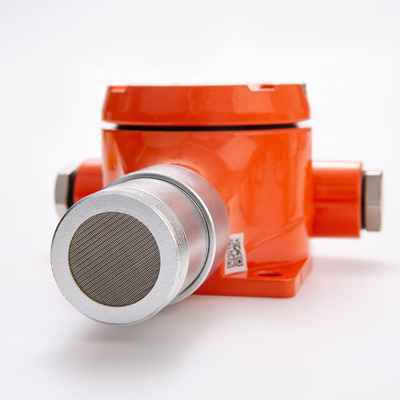

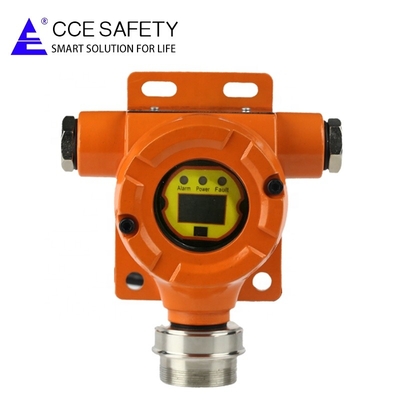

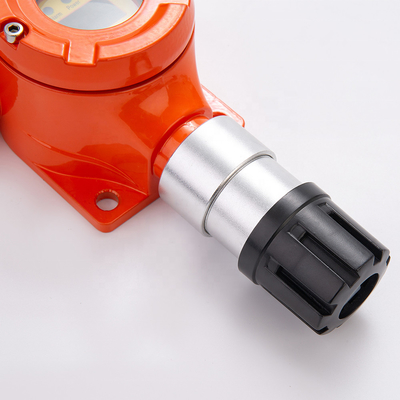

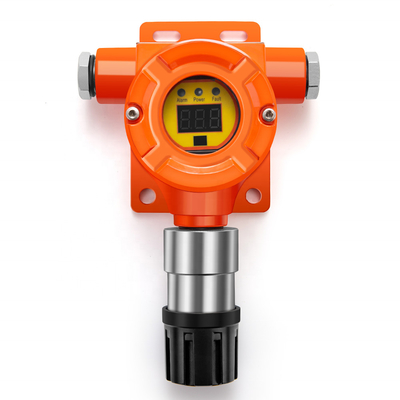

Explosion-proof combustible gas leakage meter, LPG gas leakage detector with low cost
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CHICHENG |
| Certification | CE |
| Model Number | QB10N |
| Price | $80.00 - $120.00/Sets |
| Packaging Details | each set lpg gas leak detector alarm will be packed with the export standard carton package |
| Supply Ability | 5550 Set/Sets per Month lpg gas leak detector alarm |
| Product Name | Low Cost Lpg Leakage Detector | Detected Gas | LPG/ Natural/ Methane Gas |
|---|---|---|---|
| Model | QB10N | Display | LED Or Tri-color LEDs |
| Anti-explosion Class | Ex D IICT6Gb | Signal Output | 4-20mA/ RS485 |
| Response Time | T90<30s. | Operating Voltage | 10V~30V DC |
| Relay Output | 1 Relay | Detection Method | Diffusion Type |
| Port | Qingdao |
Explosion-proof combustible gas leakage meter, LPG gas leakage detector with low cost
Product description
Explosion-proof combustible gas leakage meter, LPG gas leakage detector with low cost QB10N is used to monitor the combustible gas in the oil exploitation or other industrial site . This series has two output for choice, 4-20mA or RS485 communication signal.
Product Features
1. Adopts the original imported catalytic combustion sensors and advanced digital processing system.
2. High accuracy, stable, anti-toxic and anti-interference.
3. Self-test technology in the sensor, automatical alert for short circuit, power supply fault, etc.
4. 4-20mA analog output for direct communication to DCS system, RS485 ModBus output for central unit.
5. Can be set with IR remote controller without open the upper enclosure.
6. Highlight segment digital display real-time concentration
7. Temperature compensation to ensure accuracy.
8. Built-relay switch output

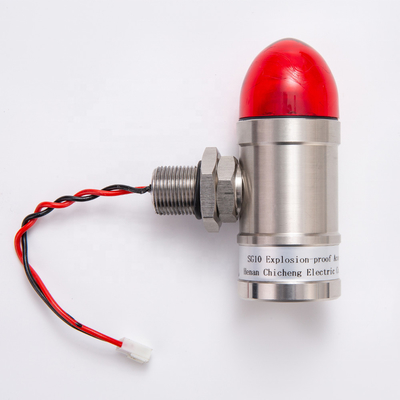

9. Can be connected with audible-visual alarm.
10. Over-range protection for catalytic sensor
Product Technical Parameters
| Product Name | low cost lpg leakage detector |
| Model | QB10N |
| Detected Gas | Methane gas 0-100%LEL |
| Response | T90<30S |
| Operating temperature | -20℃~+70℃ |
| Humidity | < 90%(without condensating) |
| Operating Voltage | 10DC~30VDC |
| Output Signal | 4-20mA (3wires), RS485(4wires) |
| Relay interface | 1 channel 30V 3A |
| IR remote controller distance | 3 meter |
| Anti-explosion class | Ex dIICT6 Gb |
Product detailed
Project Cases
Company introduction
More than 10 years industrial experience
ODM & OEM service available;
1-3 year warranty;
3000 square meter factory area;
10 production lines;
50 experience R&D engineers;
Internantional Fairs & Visiting customers
Packing and delivery:
Packaging
Carton box or Aluminum box on your requirement
Fast delivery
Sample order in stock and 3-7 working days for bulk production.
Payment
You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping
DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
