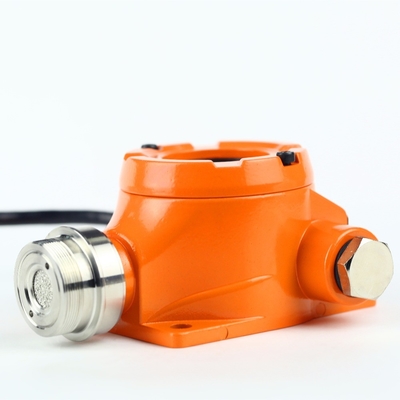

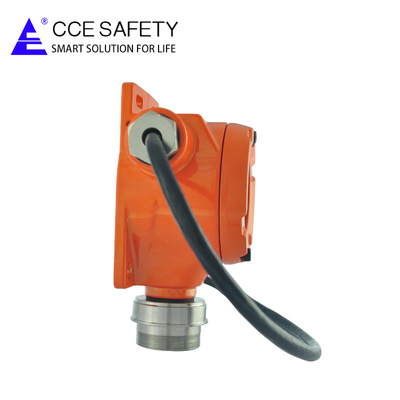

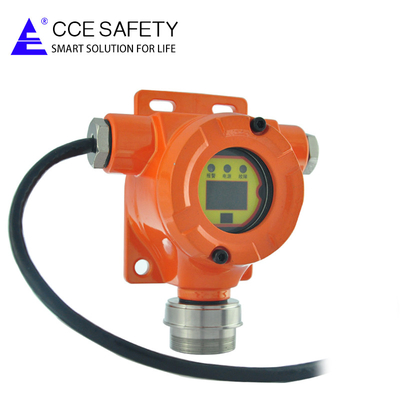

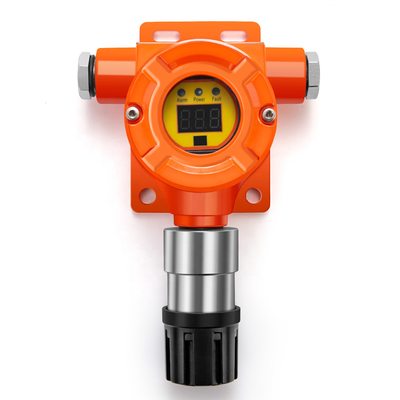

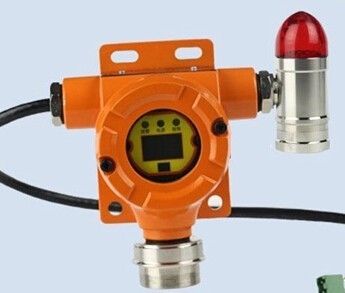

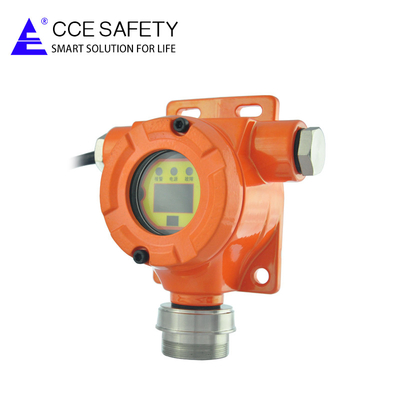

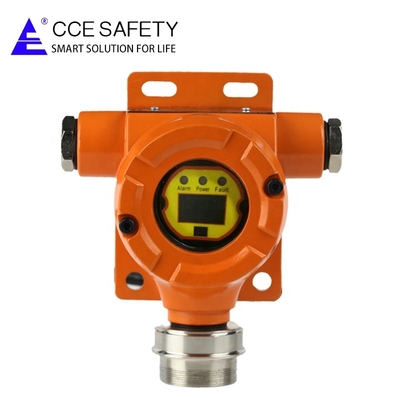

Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas

  • Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas
  • Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas
  • Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas
  • Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas
  • Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas
  • Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas
  • Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas
Place of Origin Henan, China
Brand Name chicheng
Certification CE
Model Number QB10N
Price $120.00 - $200.00/Pieces
Supply Ability 5000 Piece/Pieces per Month
Product Details
Type Industry Gas Detector Customized Support OEM, ODM
Model QB10N Material Cast Aluminum
Output Signal 4-20mA Or RS485 Voltage 10VDC-30VDC
IP Grade IP66 Sensor Catalytic Combustion Sensor
Working Temperature -20~60 Degree Detected Way Natural Diffusion
Carton Box 16*15.5*8.5 Cm Warranty Free Calibration And Warranty Within A Year
Leave a Message
Product Description
QB10T/QB10N Combustible Gas Leak Detector is used to monitor the combustible gas in the industrial site and firefighting place.This series has two output for choice, 4-20mA or RS485 communication signal. The products comply with GC15322.1-20h03.
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 0
Features:
♦4-20mA analog output for direct communication to DCS system ♦Relay output for connecting external device ♦LCD display screen(LED display screen optional) ♦Advantage: Sensor module(block) design on -spot replacement s and automatically distinguish sensor fault and current display fault simultaneously. ♦Password verification for repeat operation, avoid fault operations. ♦-40～+70℃ following compensation for accurate detecting. ♦Twp grade visual alarms on-site and Relay (connected with audible/visual alarms or drive exhaust device). ♦User-selectable alarm setpoint(s).
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 2
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 4
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 6
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 8
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 10
Sensor type: catalytic combustion sensor for combustible gas
Detection method: natural diffusion type
Operating voltage: 10VDC ~ 30VDC
Display: bright LED or tri-color LEDs
Response time: T90 ≤ 30s
Output signal: 4-20mA (3 wires) or RS485 (4 wires)
Ambient Parameter: Temperature:-20℃~+ 70℃ Humidity: < 90%(without condensating)
Anti-explosion Class: Ex d IIC T6 Gb
Relay Interface: 1 channel 30V 3A
IR remote controller distance: 3m
Recommend Products
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 12
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 14
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 16
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 4
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 20
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 22
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 24
Installation cases
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 26
Parking lot case
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 28
For refrigerant gas detection
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 30
For chemical factory
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 32
For coal mine case
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 34
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 36
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 4
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 40
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 42
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 44
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 4
Wall mounted 4-20ma CO2, Hazardous gas leakage detector and monitor for cylinder gas 48
FAQ
Q1:Are you a trading company or manufacturer ? A1:We aremanufacturer.
Q2:What about the payment method? A2:T/T, Paypal, Western Union, L/C is available.
Q3:Does your company accept customization? A3:We do customizing service for customers.
Q4:What about the Shipment? A4:We'll choose proper transportation mode based on the weight of goods, usually arrange shipment by air express such as DHL,FEDEX,TNT or UPS.
Q5:What about after-sale service? A5:12 months warranty for all kinds of products.

Q6.Do you have any MOQ limit? A6: We don’t have a MOQ limit, 1 pc are also welcome.
