♦4-20mA analog output for direct communication to DCS system ♦Relay output for connecting external device ♦LCD display screen(LED display screen optional) ♦Advantage: Sensor module(block) design on -spot replacement s and automatically distinguish sensor fault and current display fault simultaneously. ♦Password verification for repeat operation, avoid fault operations. ♦-40～+70℃ following compensation for accurate detecting. ♦Twp grade visual alarms on-site and Relay (connected with audible/visual alarms or drive exhaust device). ♦User-selectable alarm setpoint(s).
All Products

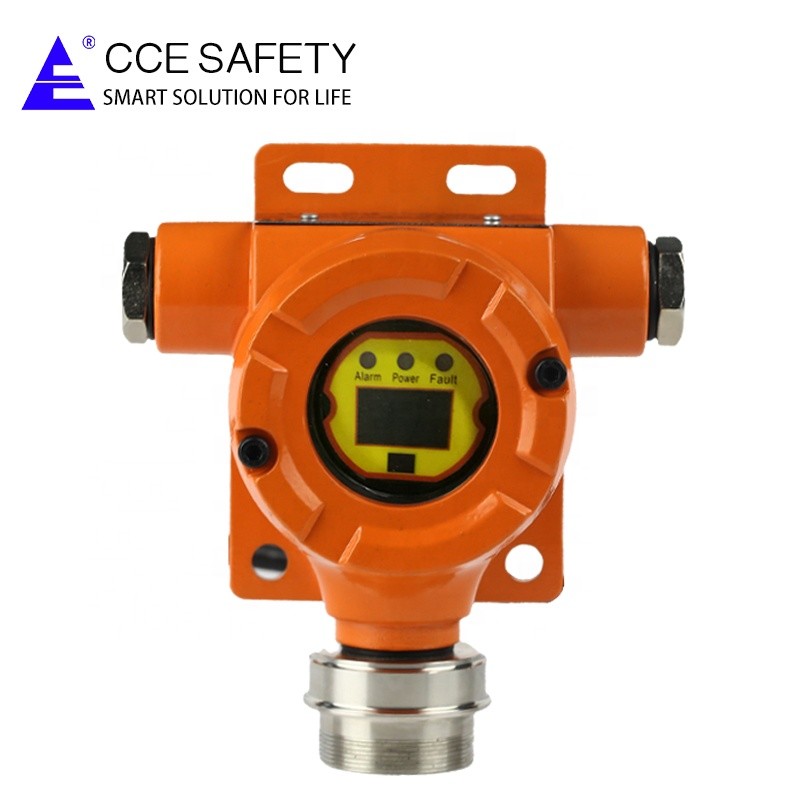

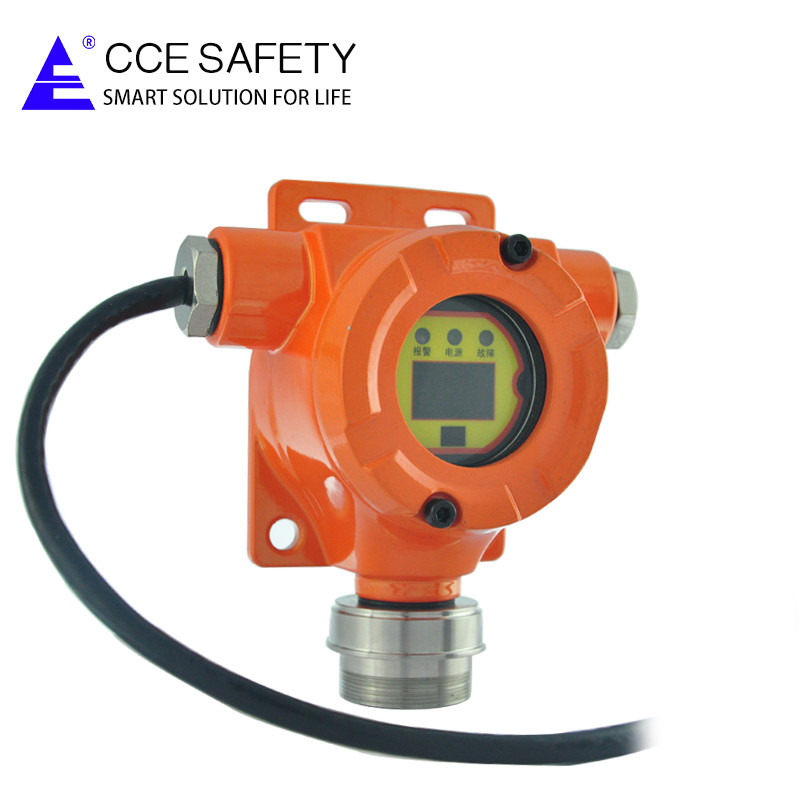

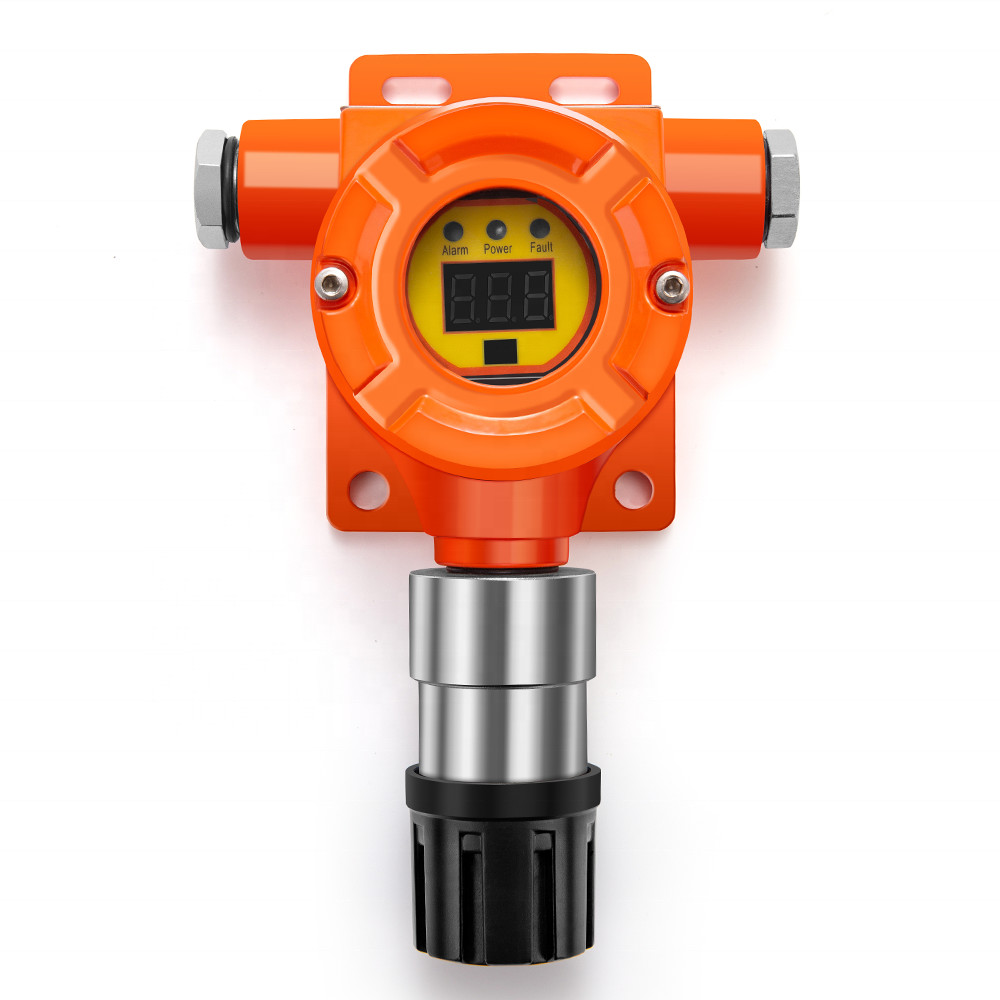

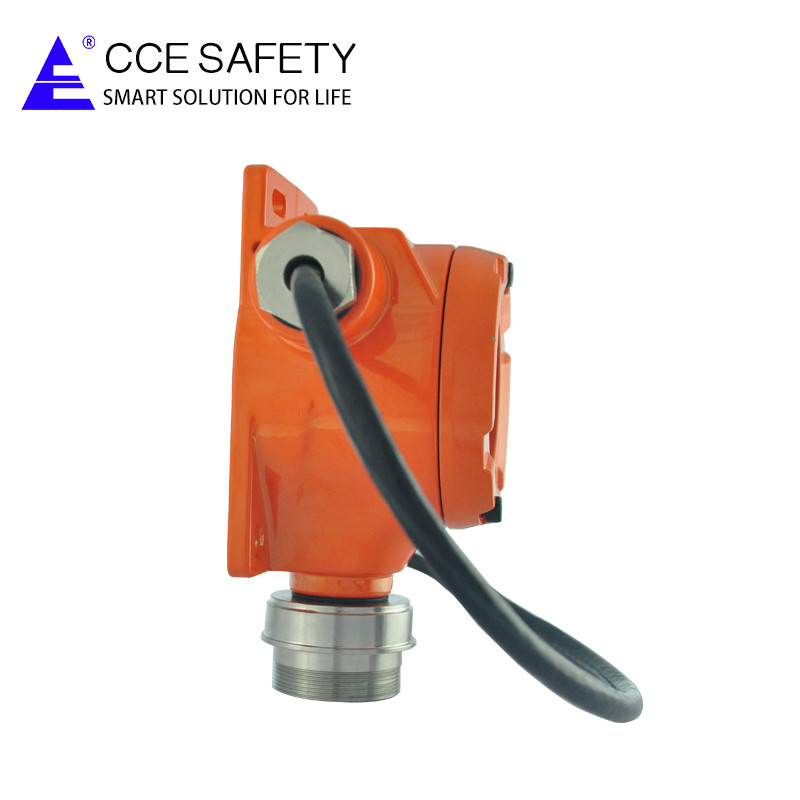

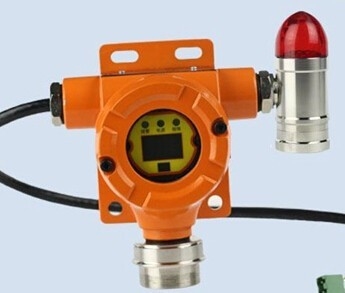

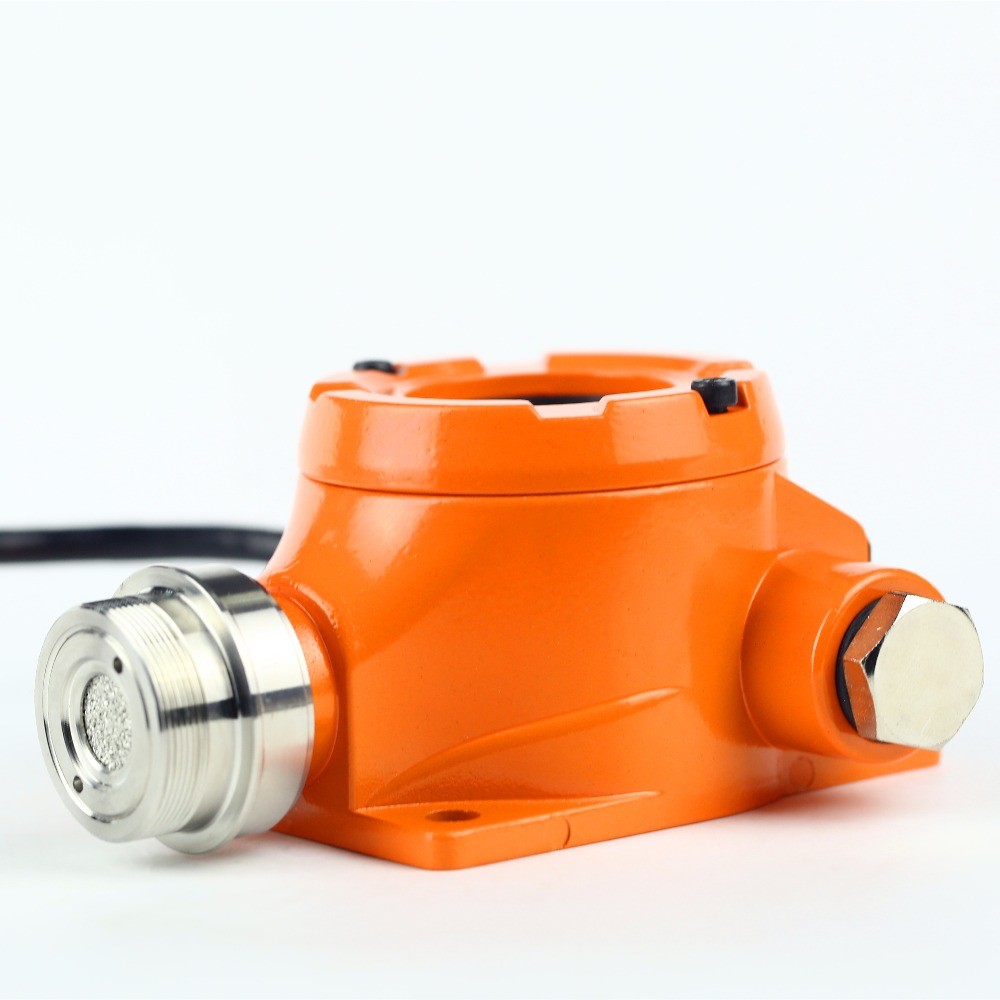

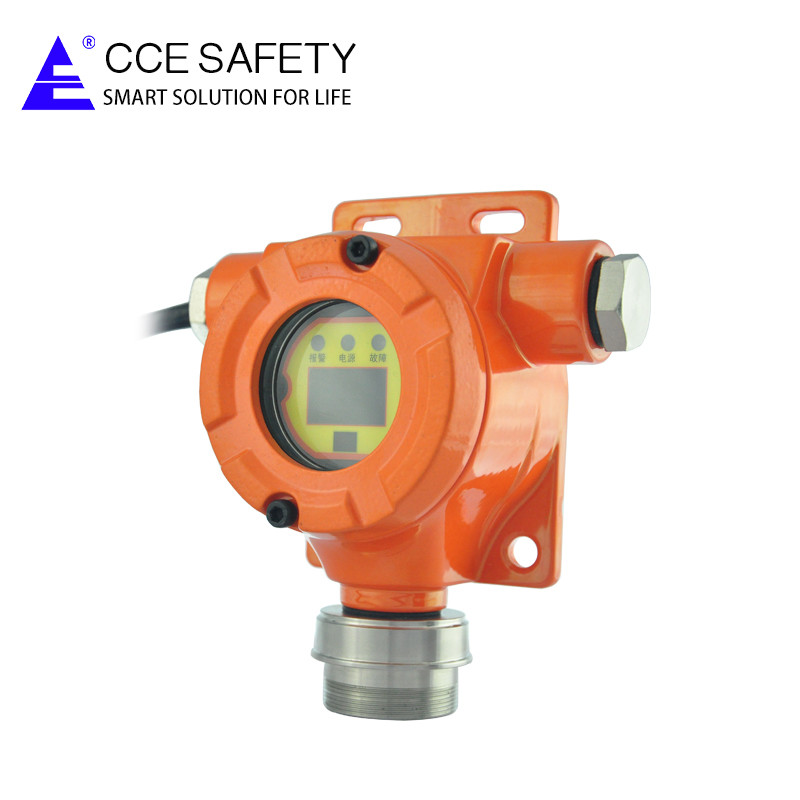

Fixed CO, CH4, Combustible gas leak detection monitor
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Certification | CE |
| Model Number | QB10N |
| Price | $120.00 - $200.00/Pieces |
| Packaging Details | in standard export carton package |
| Supply Ability | 5000 Piece/Pieces per Month |
Product Details
| Type | Industry Gas Detector | Customized Support | OEM, ODM |
|---|---|---|---|
| Model | QB10N | Material | Cast Aluminum |
| Output Signal | 4-20mA Or RS485 | Voltage | 10VDC-30VDC |
| IP Grade | IP66 | Sensor | Catalytic Combustion Sensor |
| Working Temperature | -20~60 Degree | Detected Way | Natural Diffusion |
| Carton Box | 16*15.5*8.5 Cm | Warranty | Free Calibration And Warranty Within A Year |
| Port | Tianjin, Qingdao, Shanghai, HK Etc. |
Product Description
QB10T/QB10N Combustible Gas Leak Detector is used to monitor the combustible gas in the industrial site and firefighting place.This series has two output for choice, 4-20mA or RS485 communication signal. The products comply with GC15322.1-20h03.
Features:
Sensor type: catalytic combustion sensor for combustible gas
Detection method: natural diffusion type
Operating voltage: 10VDC ~ 30VDC
Display: bright LED or tri-color LEDs
Response time: T90 ≤ 30s
Output signal: 4-20mA (3 wires) or RS485 (4 wires)
Ambient Parameter: Temperature:-20℃~+ 70℃ Humidity: < 90%(without condensating)
Anti-explosion Class: Ex d IIC T6 Gb
Relay Interface: 1 channel 30V 3A
IR remote controller distance: 3m
Detection method: natural diffusion type
Operating voltage: 10VDC ~ 30VDC
Display: bright LED or tri-color LEDs
Response time: T90 ≤ 30s
Output signal: 4-20mA (3 wires) or RS485 (4 wires)
Ambient Parameter: Temperature:-20℃~+ 70℃ Humidity: < 90%(without condensating)
Anti-explosion Class: Ex d IIC T6 Gb
Relay Interface: 1 channel 30V 3A
IR remote controller distance: 3m
Recommend Products
Installation cases
Parking lot case
For refrigerant gas detection
For chemical factory
For coal mine case
FAQ
Q1:Are you a trading company or manufacturer ? A1:We aremanufacturer.
Q2:What about the payment method? A2:T/T, Paypal, Western Union, L/C is available.
Q3:Does your company accept customization? A3:We do customizing service for customers.
Q4:What about the Shipment? A4:We'll choose proper transportation mode based on the weight of goods, usually arrange shipment by air express such as DHL,FEDEX,TNT or UPS.
Q5:What about after-sale service? A5:12 months warranty for all kinds of products.
Q6.Do you have any MOQ limit? A6: We don’t have a MOQ limit, 1 pc are also welcome.
