Stationary ozone gas leak detector used in disinfection against virus with DC24V for continuous inspection
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Chicheng |
| Certification | CE,ATEX,CCC,SILII |
| Model Number | QB2000N |
| Price | $465.00/Units 1-4 Units |
| Supply Ability | 5000 Set/Sets per Month |
| Special Features | Remote Control, Waterproof / Weatherproof | MOQ | 1 |
|---|---|---|---|
| Voltage | DC24V | Model | QB2000N |
| Protection Grade | IP66 | Color | Yellow |
| Material | Cast Aluminum | Gas Detected | Ozone Gas |
| Sensor | Electrochemical Sensor | Weight | Around 1200g |
| Approval | CE,ATEX,SILII |
Stationary ozone gas leak detector used in disinfection against virus with DC24V for continuous inspection
The O3 gas it's ideal disinfectant to clean the virus. Much spaces such as gyms, sports centers, meeting room etc adopt ozone generator to do disinfectant work.
2. O3 is helpful to do disinfectant work but itself is harmful to people health. When ozone disinfectant work is being done, it must be sure there is no person in that space and people are forridden to enter that space at least 30 minutes after disinfection.
Stationary ozone gas leak detector is a fixed gas detecting transmitter, with 4-20 mA or RS485 ModBus RTU output proportional to the ozone gas leak concentration with original imported electro-chemical sensor. It monitors ozone gas leak by natural diffusion.
Stationary ozone gas leak detector has no screen,visual and audible alarm.So it's designed to be connected with control panel which is far away from the working site. This design help save cost.
It has been widely used in industry or ozone generating plant etc.
Features of stationary ozone gas leak detector:
1.4-20mA analog output for direct communication to DCS system, RS485 ModBus output for central unit
2.Relay output for connecting external device
3.User-selectable alarm setpoint(s).
4.Sensor module(block) design on -spot replacement s and automatically distinguish sensor fault and current display fault simultaneously.
5.Password verification for repeat operation, avoid fault operations.
6.-40~+70℃ following compensation for accurate detecting.
7.Second grade visual alarms on-site and Relay(connected with audible/visual alarms or drive exhaust device).

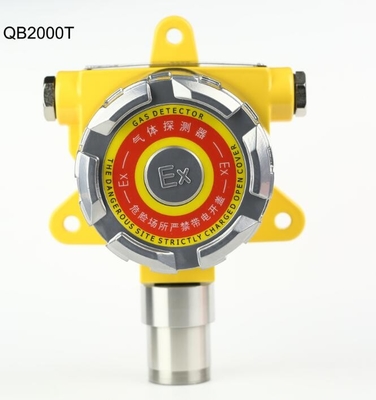

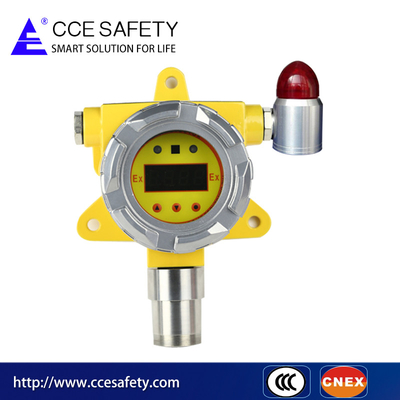

Note: QB2000N is with the digital display screen but QB2000T is without the digital display screen. The visual and audible alarm is optional.
Our QC auditors perform aging test for continuously 48 hours strictly to ensure quality before shipping
Technical parameters of stationary ozone gas leak detector:
| Product name | stationary ozone gas leak detector |
| Gas detected | ozone gas |
| Model | QB2000N |
| Sensor type | Electrochemical sensor |
| Accuracy | <= + 3% F.S |
| Response time | T90<30s |
| Working current | ≤50 Ma |
| Output signal | 4 to 20mA standard signal(RS485 output optional) |
| Power supply to the detector terminals | 16~30V DC |
| Ambient air | Temperature:-20℃~+60℃ Humidity: < 90%(without condensation) |
| Type of cable | 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2 for 4-20mA signal or 4*1.5mm2 for RS485 signal, external diameter >=10mm |
| Transmitting Distance | <=1000meter |
| Mounting Screw thread | G1/2 |
| Weight | 1200g |
| Anti-explosion Class | Ex d IICT6Gb |
| Protection Class | IP66 |
| Material | Shell for detector:Cast aluminum; Shell for sensor: stainless steel |
