QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA or RS485 output to control panel

Place of Origin Henan, China
Brand Name chicheng
Model Number QB2000N
Price $120.00 - $300.00/Units
Packaging Details cartons
Supply Ability 2000 Unit/Units per Week
Product Details
Type Fixed LPG Gas Detector Product Name LPG Gas Detector 24vdc
Sampling Method Diffusion IP Grade IP66
Accuracy 3% F.S Power Supply 16-30V DC
Protection Grade Ex D IIC T6 Gb Mounting Screw Thread M20 X 1.5O Or G1/2
Sensitivity 1ppm T90 <30S
Weight 1200g Port Chinese Main Port
Leave a Message
Product Description

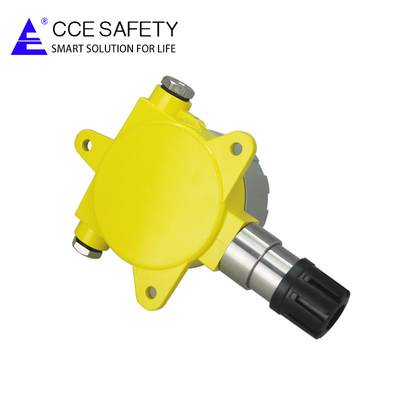

QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel

Fixed LPG gas detector product description



QB2000N is Industrial grade LCD/LED gas leack detector, with 4-20 mA or RS485 ModBus RTU output proportional to the gas leakage concentration with original imported electro-chemical sensor. It has been widely used in petrol, chemistry, metallurgy, artifice, gas transportation, biological medicine and water procession etc.

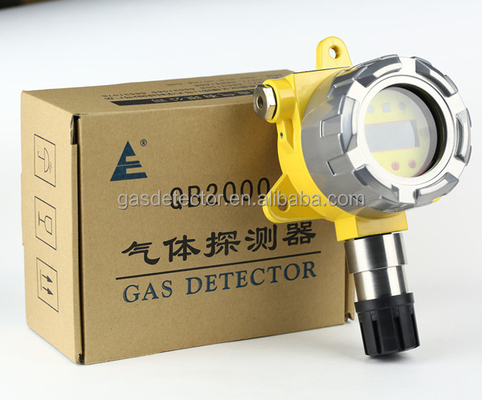

 QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 0QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 2

The online gas detector monitors gas leakage by natural diffusion.It can be directly connected with DCS systems or Central unit. With relay output, once the concentration exceed the preset alarm point(threshold), it will start the acoustic-optical alarm on the central unit and drive the external equipment like exhaust fans.



Fixed LPG gas detector product features

  • Changable Sensor mould
  •  Relay output for connecting external device
  •  LCD display screen(LED display screen optional)
  •  Password verification for repeat operation, avoid fault operations.
  •  Second grade visual alarms on-site and Relay(connected with audible/visual alarms or drive exhaust device).
  • selectable alarm setpoint



Fixed LPG gas detector technical specifications

  • Sensor type: original imported electro-chemical sensor for toxic gas, and catalytic combustion sensor for combustible gas.
  •  Resolution:1%LEL, 1%VOL, 1ppm or 0.1ppm
  •  Accuracy:≤ ± 3% F.S
  • Response time:T90<30s.
  • Output signal: 4 to 20mA standard signal(RS485 output optional)
  •  Power supply: 16~30V DC.
  •  Ambient Parameter: Temperature:-20°C~+60°C.
  • Humidity: < 90%(without condensating)
  • Type of cable: 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2  for 4-20mA signal OR 4*1.5mm2 for RS485 signal
  • Transmition Distance:<=1000meter
  • Mounting Screw thread: G1/2.
  • Weight:1200g.
  • Anti-explosion Grade: Ex d IICT6Gb
  • Protection Grade:IP66.



Detector Model

Gas Detected

Range

Range Optional

Resolution

Responding Time

CO Detector

CO

0-1000ppm

0-500/2000/5000ppm

1ppm

20s

O2 Detector

O2

0-25%VOL

30%VOL

0.1%VOL

20s

O3 Detector

O3

0-10ppm

0-100ppm

0.01ppm

20s

H2S Detector

H2S

0-100ppm

0-50/200/1000ppm

1ppm

30s

H2 Detector

H2

0-1000ppm

0-5000ppm

1ppm

30s

CL2 Detector

CL2

0-20ppm

0-10/100ppm

0.1ppm

30s

NH3 Detector

NH3

0-100ppm

0-50/500/1000ppm

1ppm

30s

SO2 Detector

SO2

0-20ppm

0-50/1000ppm

0.1ppm

30s

NO Detector

NO

0-25ppm

0-500ppm

0.1ppm

30s

NO2 Detector

NO2

0-20ppm

0-50/100ppm

0.1ppm

30s

CH2O Detector

CH2O

0-50ppm

0-5/10ppm

0.01ppm

30s

HCL Detector

HCL

0-20ppm

0-20/100ppm

0.5ppm

30s

Combustible Gas Detector

EX

0-100%LEL

0-100%LEL

1%

30s

For the gas that is not covered here though, please don’t hesitate to contact us.

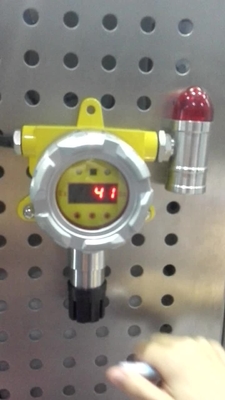

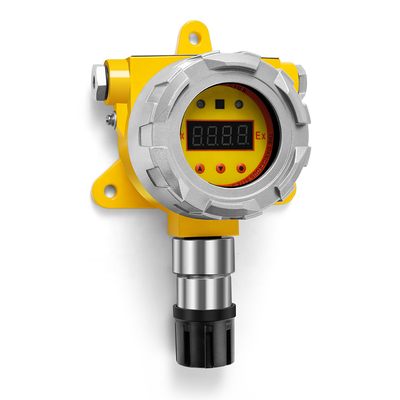

QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 4QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 6QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 8

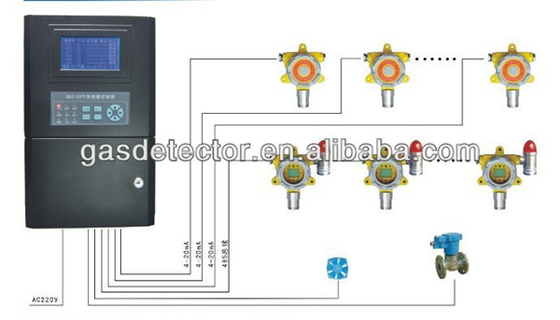

Fixed LPG gas detector product application


QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 10

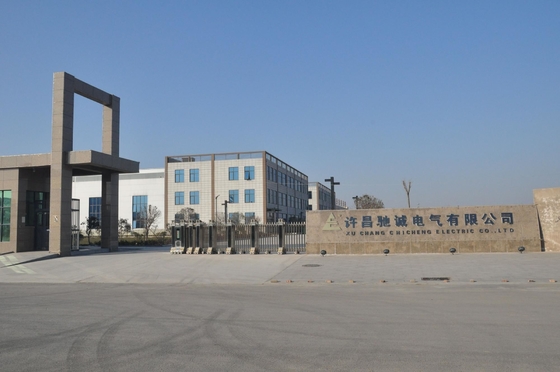

Company profile

More than 10 years industrial experience

ODM & OEM service

1-3 year warranty



3000 square meter factory area

10 production lines

50 experience R&D engineers

QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 12QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 14QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 16QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 18QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 20QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 22

Related Products

  1. Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc

    Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.

     QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 24



Fixed LPG gas detector Packing & delivery

 Packaging: Carton box or Aluminum box on your requirement

Delivery: Sample order in stock and 3-7 working days for bulk production.

Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.

Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.

You can also choose your own shipping forwarder.

QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 26QB2000N Fixed LPG Gas Detector 24vdc with 4-20mA  or RS485 output to control panel 28

FAQ:

1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.


2. What is the lead time?

A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.

3. Do you have any MOQ limit?

A: We don’t have a MOQ limit, 1 pc are also welcome.

4. Do you offer guarantee for the products?

A: Yes, we offer one or two year guarantee for the products.

5. Do you accept drop shipping?

A: Yes, it’s available.

6. What will your ODM&OEM service cover?

A: a. Customer brand and logo print (law allowed) can be made on the sticker.

b. Customized color and special function of gas detection tools.
