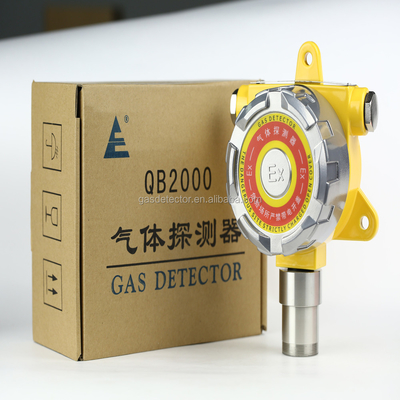

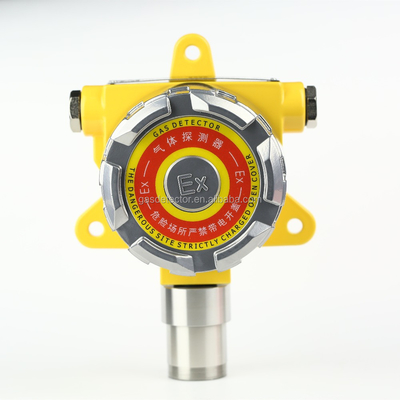

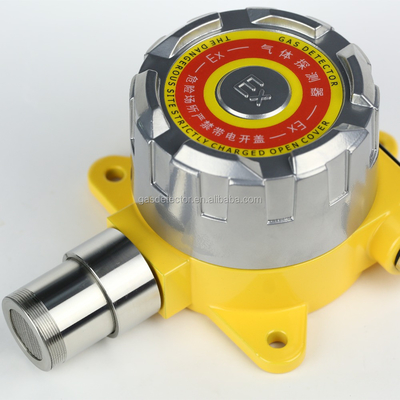

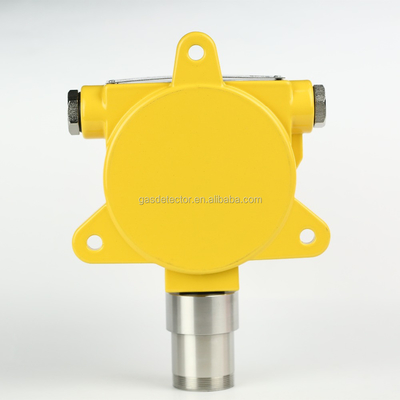

Fixed co gas leak detector with relay output to start the ventilation system
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Model Number | QB2000N |
| Price | $120.00 - $180.00/Pieces |
| Packaging Details | carton box |
| Supply Ability | 3000 Unit/Units per Month |
| Product | Gas Leak Detector With Relay Output | Signal Output | 4-20mA |
|---|---|---|---|
| Color | Yellow | Voltage | DC24V |
| Material | Cast Aluminum | Screen | LED |
| Gas Detected | Co | Protection Grade | IP66 |
| Sensor | Electrochemical Sensor | Weight | Around 1780g |
| Port | Shenzhen |
Fixed co gas leak detector with relay output to start the ventilation system
Our QB2000 is used for car test.
When you test the car, a lot of excessive co will be produced, to keep the good air quality,and keep worker safe in the test room, online fixed co gas leak detector with relay output is necessary to start the ventilation system.
Gas leak detector with relay output can sound an alarm by visual and audible signals to operators in the area where the leak is occurring, giving them the opportunity to leave.
It is important because there are many gases that can be harmful to organic life, such as humans or animals.
Features of gas leak detector:
1.4-20mA analog output for direct communication to DCS system
2.Relay output for connecting external device
3.User-selectable alarm setpoint(s).
4.Sensor module(block) design on -spot replacement s and automatically distinguish sensor fault and current display fault simultaneously.
5.Password verification for repeat operation, avoid fault operations.
6.-40~+70℃ following compensation for accurate detecting.
7.Second grade visual alarms on-site and Relay(connected with audible/visual alarms or drive exhaust device).
Our QC auditors perform aging test for continuously 48 hours strictly to ensure quality before shipping

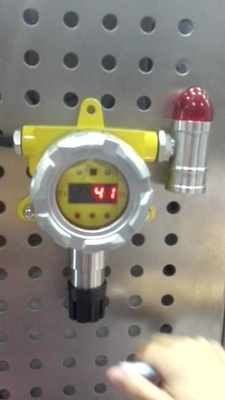

With relay output, once the concentration exceeds the preset alarm point(threshold) it will start the acoustic-optical alarm on the central unit and drive the external equipment like exhaust fans to dilute the co gas concentration.
Technical parameters of gas leak detector:
Product name | gas leak detector with relay output
|
Model | QB2000N |
Sensor type | Electro-chemical sensor |
Range | 0-1000ppm |
| Resolution | 1ppm |
Accuracy | <= + 3% F.S |
Response time | T90<30s |
Working current | ≤50 Ma |
Output signal | 4 to 20mA standard signal(RS485 output optional) |
Power supply to the detector terminals | 16~30V DC |
Ambient air | Temperature:-20℃~+60℃ Humidity: < 90%(without condensation) |
Type of cable | 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2 for 4-20mA signal or 4*1.5mm2 for RS485 signal, external diameter >=10mm |
Transmitting Distance | <=1000meter |
Mounting Screw thread | G1/2 |
Weight | 1200g |
Anti-explosion Class | Ex d IICT6Gb |
Protection Class | IP66 |

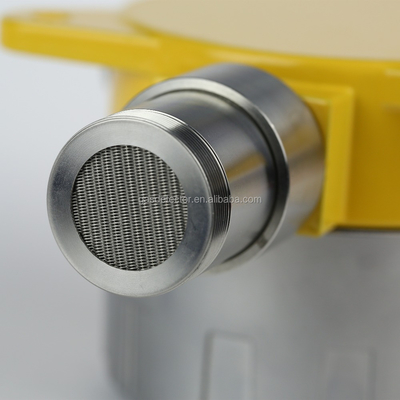

Material | Shell for detector:Cast aluminum; Shell for sensor: stainless steel |
- Packaging:
Carton box 21.5*17*10 G.W.1.53kg with alarm light 22.5*19*10 G.W.2kg
-Fast delivery:
Sample order in stock and 3-7 working days for bulk production.
-Payment:
T/T, Western Union, PayPal & Money Gram are available.
We accept Alipay on Aliexpress.
Visa,MasterCard,Western Union,Qiwi and Bank Transfer are available.
All payments are accepted through security payment processor ESCROW.
Payment must be made within 3 days after place order.
-Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You also can choose your own shipping forwarder.
a.All products will have been strictly Quality Checked before packing.
b.All products will be well packed before shipping.
c.All our products have 1 year warranty.And we're sure the product will be free from maintenance within warranty period.
a. Customer brand(law allowance) can be made on the sticker.
b. Customized gas detection tools are welcomed
c. Customized color box.
d. Any your idea gas detection tool we can help you to design and put it into production
Henan Chicheng Electric Co., Ltd(CCE) is a ISO9001-2000 certified high-tech manufacturer in Zhengzhou, Henan province, marketing a range of portable and fixed gas detection products, industrial process automation control, safety protection and analytical instrument.
CCE has a mission to offer proper device and excellent all-round services to customers from automotive production plants, petrochemical, gas, pharmaceutical and metallurgical industries, Zinfandel producing wineries etc. R&D center of Chicheng, cooperating with the national science centers and universities, has been focusing on research of the techniques, design and project service. Achievements of the R&D teams had been granted patents and trusted by users nationwide.
Our Target:
We are just looking for the supplier who would like to cooperate us for win-win strategy. We'd like to build business relationship with the power generating plant,chemical industry,oil storage dept.,sewage treatment dept.,ship-building factory,glass factory,oil exporation ,oil and gas transferring,oil refinning,metallurgy,mining well,turnel,underground utilitizes.
Our Advantage on company:
*We take protecting and safeguarding human beings as her responsibility.
*Our management team is dynamic, young and full of passion.
*Professional rich-experienced R&D team.
*Mature technology in production,3 production lines for circuit board welding.
*We have our own industrial zone in Henan province.
*Modern professional manufacturing machines
*Special certifications.
*We are going to go public in 2015
*Trade inssurance at alibaba
Electrochemical gas detector
*No reaction to the gas detected, or not accurate enough:
1.A short preheat time for sensor.
2.Something is wrong with the circuit.
3. Sensor is out of its lifetime.
*Zero-calibration is not available:
1.Disturbing by strong electromagnetism.
2.Overabundance sensor drifting.
*Err1-No sensor or no connecting with sensor.
*Err2-Overabundance zero drifting of sensor.
