Fixed ethylene oxide gas detector monitor with micro controller and remote controller,with replaceable sensor for ethylene oxide
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Chicheng |
| Model Number | QB2000F |
| Price | $445.00 - $507.00/Units |
| Packaging Details | carton box |
| Supply Ability | 2000 Unit/Units per Month |
| Product | Fixed Ethylene Oxide Gas Detector | Measure Range | 0-100ppm |
|---|---|---|---|
| Detecting Gas | Ethylene Oxide | Alarm Type | Wide Range Lighting,100dB Buzzer |
| Alarm Output | 2 Relay Output,AC220V 2A | Ambient Temperature | -30 To 50 Degree |
| Power Supply | AC220V 50HZ ; Back Up Battery Optional | IP Grade | IP65 |
| Weight | About 1200g | Response Time | T90<30s |
| Port | Shenzhen, Tianjin,Shanghai |

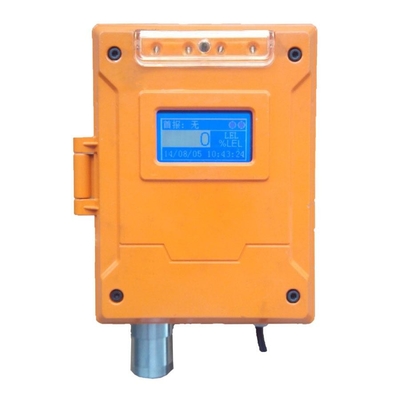

Fixed ethylene oxide gas detector monitor with micro controller and remote controller,with replaceable sensor for ethylene oxide
Fixed ethylene oxide gas detector monitor is designed with plug in micro controller. And it's operated by remote control.
The replaceable sensor module design helps save maintenance cost and makes the calibration much easier than the normal one.
QB2000F fixed ethyltne oxide gas detector features large English LCD to monitor the real-time concentration of the ETO gas.
With 2 relay output, once the concentration exceed the preset alarm point(threshold) it will start the acoustic-optical alarm and it can drive the external equipment like exhaust fans.; Through 4-20mA signal output, it can be directly connected into the factory DCS system.
You don't have to install another control panel ,because QB2000F is combi detector and panel.
Main Functions:
-Adopts advanced 16 digit ultra-low power consumption embedded micro controller.
-128*64 dot matrix ultra-large liquid-crystal display
-Adjustable H-alarm and L-alarm values
-Displaying the time of first alarm.
-Real-time display
-Replaceable sensor module design
-Automatic calibrating to ensure the detecting accuracy.
-200 pieces alarm record can be stored automatically
-Password management and IR remote function
-The optional internal battery backup can work continuously for 24 hours (no alarming status)
Technical index of industrial ethylene oxide gas detector:
| Gas | ethylene oxide |
| Range | 0-100ppm |
| Resolution | 1ppm |
| Sensor | Electrochemical sensor |
| Tolerance | <=+-3%F.S |
| Response time | T90<30s |
| Display | 128*64 dot matrix LCD screen displays real time data and status of system |
| Alert | Wide angle light, 100dB buzzer |
| Alarm output | 2 relay , AC220V 2A |
| Signal output | 4-20mA to DCS system, or RS485 to the host computer optional |
| Ambient environment | -30 to 50 degree, humidity<95%RH no condensing |
| Power supply | AC220V 50HZ, back up battery optional |
| Weight | 1200g |
Henan Chicheng Electric Co., Ltd is a ISO9001-2000 certified high-tech manufacturer in Zhengzhou, Henan province, marketing a range of portable and fixed gas detection products, industrial process automation control, safety protection and analytical instrument.
Chicheng has a mission to offer proper device and excellent all-round services to customers from automotive production plants, petrochemical, gas, pharmaceutical and metallurgical industries, Zinfandel producing wineries etc. R&D center of Chicheng, cooperating with the national science centers and universities, has been focusing on research of the techniques, design and project service. Achievements of the R&D teams had been granted patents and trusted by users nationwide.
“Scientific and technological innovations, people-oriented, integrity of management” is the philosophy of Chicheng. We aim at providing customers quality product, each properly suited to its task and timely service and support.
Every worker in Chicheng everyday is making efforts to deliver the best quality, values and technical support to customers. Sincerely welcome customers worldwide.
Cooperation factory:
We are just looking for the supplier who would like to cooperate us for win-win strategy. We'd like to build business relationship with the power generating plant,chemical industry,oil storage dept.,sewage treatment dept.,ship-building factory,glass factory,oil exporation ,oil and gas transferring,oil refinning,metallurgy,mining well,turnel,underground utilitizes.painting house,petrol station.
Chicheng has a mission to offer proper device and excellent all-round services to customers from automotive production plants, petrochemical, gas, pharmaceutical and metallurgical industries, Zinfandel producing wineries etc. R&D center of Chicheng, cooperating with the national science centers and universities, has been focusing on research of the techniques, design and project service. Achievements of the R&D teams had been granted patents and trusted by users nationwide.
“Scientific and technological innovations, people-oriented, integrity of management” is the philosophy of Chicheng. We aim at providing customers quality product, each properly suited to its task and timely service and support.
Every worker in Chicheng everyday is making efforts to deliver the best quality, values and technical support to customers. Sincerely welcome customers worldwide.
- Customer brand(law allowance) can be made on the sticker.
- Customized gas detection tools are welcomed
- Customized color box.
- Any your idea gas detection tool we can help you to design and put it into production
- All products will have been strictly Quality Checked before packing.
- All products will be well packed before shipping.
- All our products have 1 year warranty.And we sure the product will be free from maintenance within warranty period.
