Stationary gas leak detector refrigerant detector used in air conditioner factory
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Chicheng |
| Certification | CE |
| Model Number | QB2000T |
| Price | $465.00/Units 1-4 Units |
| Packaging Details | Carton box: dimension of 21.5*17*10cm Gross weight 2kg |
| Supply Ability | 5000 Set/Sets per Month |
| MOQ | 1 | Voltage | DC24V |
|---|---|---|---|
| Model | QB2000T | Protection Grade | IP66 |
| Color | Yellow | Material | Cast Aluminum |
| Gas Detected | Refrigerant Gas | Sensor | Electrochemical Sensor |
| Weight | Around 1200g | Port | Qingdao/Shanghai/Tianjin |

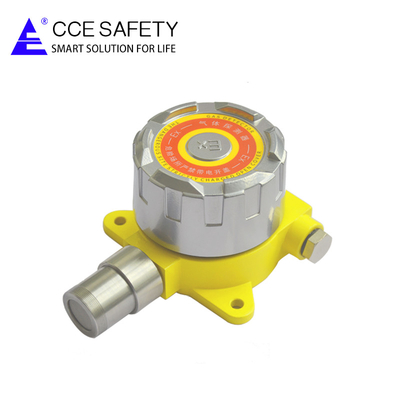

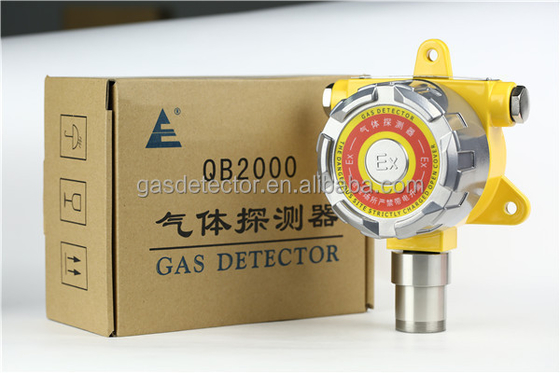

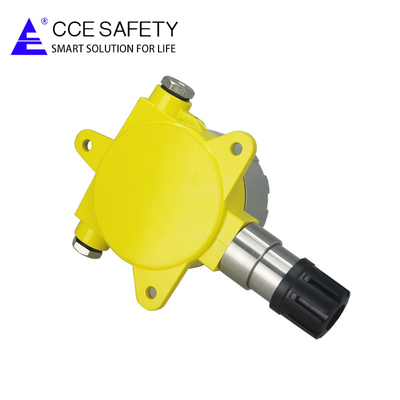

Stationary Gas leak detector refrigerant detector used in air conditioner factory
Refrigerant gas leak detector is a fixed gas detecting transmitter, with 4-20 mA or RS485 ModBus RTU output proportional to the refrigerant gas leak concentration with original imported electro-chemical sensor. It monitors refrigerant gas leak by natural diffusion.
Refrigerant gas leak detector has no screen,visual and audible alarm.So it's designed to be connected with control panel which is far away from the working site. This design help save cost.
It has been widely used in petrol, chemistry, metallurgy, artifice, gas transportation, biological medicine and water procession,air conditioner factory etc.Gree Electric Appliance and Xinfei Appliance are our customers as well.
Features of Refrigerant gas leak detector:
1.4-20mA analog output for direct communication to DCS system, RS485 ModBus output for central unit
2.Relay output for connecting external device
3.User-selectable alarm setpoint(s).
4.Sensor module(block) design on -spot replacement s and automatically distinguish sensor fault and current display fault simultaneously.
5.Password verification for repeat operation, avoid fault operations.
6.-40~+70℃ following compensation for accurate detecting.

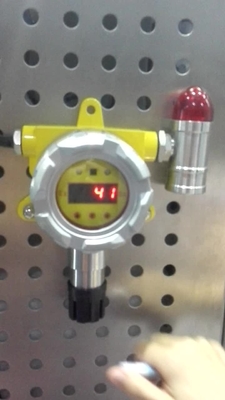

7.Second grade visual alarms on-site and Relay(connected with audible/visual alarms or drive exhaust device).

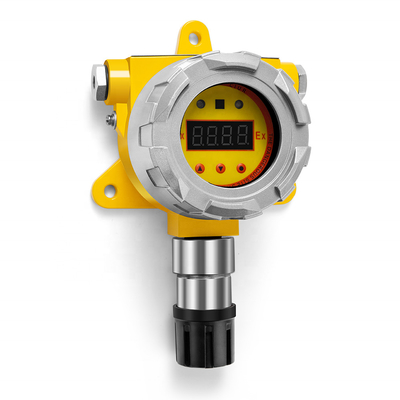

Note: QB2000N is with the digital display screen but QB2000T is without the digital display screen. The visual and audible alarm is optional.
Our QC auditors perform aging test for continuously 48 hours strictly to ensure quality before shipping
Technical parameters of Refrigerant gas leak detector:
| Product name | refrigerant gas leak detector |
| Gas detected | refrigerant gas |
| Model | QB2000T |
| Sensor type | Semi-conductive sensor |
| Accuracy | <= + 3% F.S |
| Response time | T90<30s |
| Working current | ≤50 Ma |
| Output signal | 4 to 20mA standard signal(RS485 output optional) |
| Power supply to the detector terminals | 16~30V DC |
| Ambient air | Temperature:-20℃~+60℃ Humidity: < 90%(without condensation) |
| Type of cable | 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2 for 4-20mA signal or 4*1.5mm2 for RS485 signal, external diameter >=10mm |
| Transmitting Distance | <=1000meter |
| Mounting Screw thread | G1/2 |
| Weight | 1200g |
| Anti-explosion Class | Ex d IICT6Gb |
| Protection Class | IP66 |
| Material | Shell for detector:Cast aluminum; Shell for sensor: stainless steel |
Henan Chicheng Electric Co., Ltd is a ISO9001-2000 certified high-tech manufacturer in Zhengzhou, Henan province, marketing a range of portable and fixed gas detection products, industrial process automation control, safety protection and analytical instrument.
Chicheng has a mission to offer proper device and excellent all-round services to customers from automotive production plants, petrochemical, gas, pharmaceutical and metallurgical industries, Zinfandel producing wineries etc. R&D center of Chicheng, cooperating with the national science centers and universities, has been focusing on research of the techniques, design and project service. Achievements of the R&D teams had been granted patents and trusted by users nationwide.
