Refrigerant gas leak detector, wall mounted type, for freon refrigerant gas leak detect and alarm
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Certification | CE |
| Model Number | QN2000N |
| Price | $470.00/Units 1-4 Units |
| Packaging Details | Carton box 21.5*17*10 G.W.1.53kg <br> with alarm light 22.5*19*10 G.W.2.1kg |
| Supply Ability | 5000 Set/Sets per Month |
| Product | Refrigerant Gas Leak Detector | Model | QB2000N |
|---|---|---|---|
| Voltage | DC24V | Material | Cast Aluminum |
| Screen | LCD | Gas Detected | Refrigerant Gas ,freon |
| Color | Yellow | Protection Grade | IP66 |
| Sensor | Semi Conductive Sensor | Weight | Around 1200g |
| Port | Qingdao/Shanghai/Tianjin |
Refrigerant gas leak detector,field test,wall mounted type, for freon refrigerant gas leak detect and alarm
QB2000N gas leak detector is a device that detects the presence of regrigerant gas such as freon in an area, often as part of a safety system. This type of equipment is used to detect a gas leak and interface with a control system so a process can be automatically shut down.
QB2000N gas leak detector can sound an alarm to operators in the area where the regrigerant (freon)gas leak is occurring, giving them the opportunity to leave.
It is important because there are many gases that can be harmful to organic life, such as humans or animals.
QB2000N gas leak detector is a fixed gas detecting transmitter, with RS485 ModBus RTU output proportional to the gas leakage concentration with original imported electro-chemical sensor. It monitors refrigerant gas(freon) leakage by natural diffusion.
It can be directly connected with Central unit. With relay output, once the concentration exceed the preset alarm point(threshold) it will start the acoustic-optical alarm on the central unit and drive the external equipment like exhaust fans.
It has been widely used in petrol, chemistry, metallurgy, artifice, biological medicine to monitor the refrigerant(freon) gas concentration.
Features of refrigerant gas leak detector :
1.LCD display screen(LED display screen optional)
2.Sensor module(block) design on -spot replacement s and automatically distinguish sensor fault and current display fault simultaneously.
3.Password verification for repeat operation, avoid fault operations.
4.-40~+70℃ following compensation for accurate detecting.
5.Second grade visual alarms on-site and Relay(connected with audible/visual alarms or drive exhaust device).
6.User-selectable alarm setpoint(s).
Our QC auditors perform aging test for continuously 48 hours strictly to ensure quality before shipping
Technical parameters of refrigerant gas leak detector:
| Product name | refrigerant gas leak detector |
| Model | QB2000N |
| Sensor type | semi-conductive sensor |
| Range | 0-1000ppm |
| Resolution | 1%LEL |
| Accuracy | <= + 3% F.S |
| Response time | T90<30s |
| Working current | ≤50 Ma |
| Output signal | 4 to 20mA standard signal(RS485 output optional) |
| Power supply to the detector terminals | 16~30V DC |
| Ambient air | Temperature:-20℃~+60℃ Humidity: < 90%(without condensation) |
| Type of cable | 4*1.5mm2 , external diameter >=10mm |
| Transmitting Distance | <=1000meter |
| Mounting Screw thread | G1/2 |
| Weight | 1200g |
| Anti-explosion Class | Ex d IICT6Gb |
| Protection Class | IP66 |
| Material | Shell for detector:Cast aluminum; Shell for sensor: stainless steel |
- Our advantage on service:
1.Any inquiries will be replied within 24 hours.
2.After-sale service:
a.All products will have been strictly Quality Checked before packing.
b.All products will be well packed before shipping.
c.All our products have 1 year warranty.And we sure the product will be free from maintenance within warranty period.
3.OEM/ODM available
a. Customer brand(law allowance) can be made on the sticker.
b. Customized gas detection tools are welcomed
c. Customized color box.
d. Any your idea gas detection tool we can help you to design and put it into production
- Our advantage on product:
1. Sensor Module design: you can change the sensor into different gas sensor freely, and there's no need to do any change on circuit board. The circuit board is capable of read the gas sensor automatically. Easy maintenance too.
2.Strict inspection flowing:
- Our Advantage on company:
1.CCE takes 'protecting and safeguarding human beings as her responsibility'.
2.CCE has steady manufacturing machines.
3.CCE has professional R&D team.
4.CCE's manage team and idea is dynamic, young and full of passion.

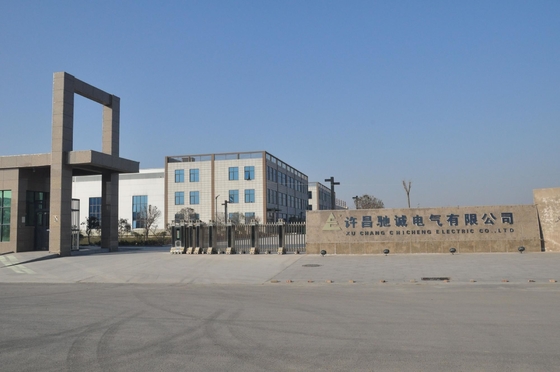

5.CCE has her own industrial zone in Henan province.
6. CCE has special certifications.
Thank you for visiting! Contact us today!
