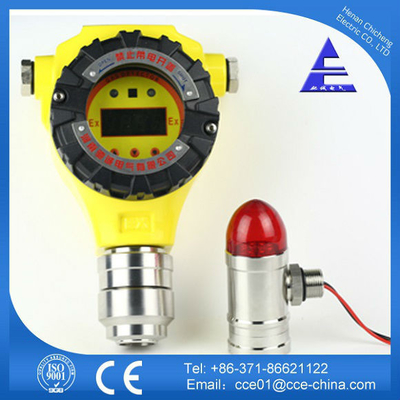

QB3000N Fixed 4-20mA/RS485 Gas Monitor System Carbon Dioxide Gas Detector With Control Panel

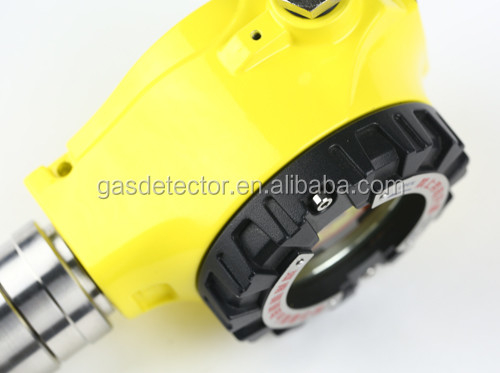

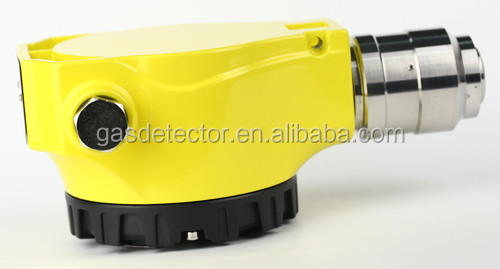

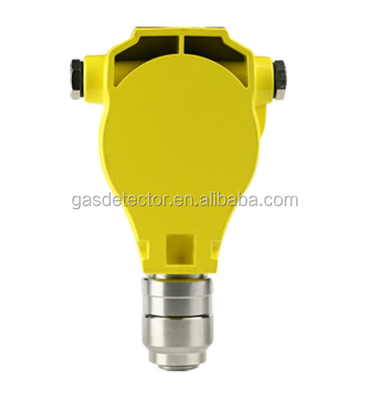

QB3000N is a 4-20mA/RS485 Gas Monitor System Carbon Dioxide Gas Detector With Control Panel which adopts interchangeable module design and consists ofcast-aluminum shell, sensor breathing device of stainless, sensor module, display module, the main control module, digital communicating module, dustproof hood and calibrating cap. Each module can be replaced by the other module while the performance remains.

4-20mA/RS485 Gas Monitor System Carbon Dioxide Gas Detector With Control Panel is mainly made up of the main control module and intelligent sensor module. The relay output and the acousto-optic alarm output are optional. RS485 communicating module is for isolated RS485 signal output, LCD or LED module is inserted to get the digital display, low and high alarm, failure indication and the infrared remote control. The alarm set-points, calibration value, the baud rate and IP of the original gas detector can be adjusted.

4-20mA/RS485 Gas Monitor System Carbon Dioxide Gas Detector With Control Panel has isolated RS485 output and standard Mod bus-RTU communicating protocol, can be connected with Siemens PLC or other PLC in the nation or abroad directly, having no need to add more RS485 isolated module.

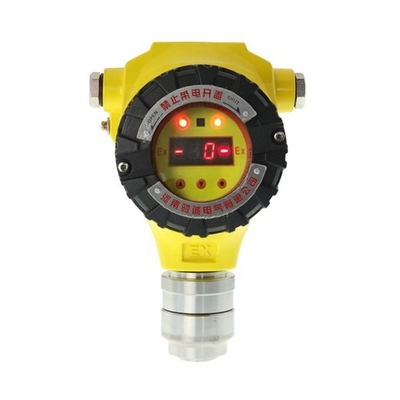

LCD display module and LED display module can be interchanged, supporting swift hot swap, support plug and play functionality.

The sensor module and the connection interface in the detector have jack and plug prevent improper insertion. Just spin and press the plug gently, the plug can be inserted the jack.

The sensor module of the detector can be replaced by the same type module and the different gas sensor module, and different range sensor module. The detector can distinguish and operation itself.

Whatever the sensor module is chosen to replace the original one, there is no need to re-calibrate it. The detector automatically distinguishes the sensor module, reads the ex-factory calibration value and the related setting value and operates detecting when the self-inspection is done. When the ex-factory new sensor module is inserted the original detector, the detector will have the same detecting, alarm accuracy as the new detectors.

When the sensor out of service or the sensor fails, the user can check and solve the problem by replacing spare modules, saving the time and cost.

Packaging & shipping :

Size of packaging box is 22.5*19*10 cm. Net weight is 2.3kg/pc. Gross weight is 2.5kg/pc.

Our service:

a. All products will have been strictly Quality Checked before packaging.
b. All products will be well packaged before shipping.
c. All the similar products have one years warranty. The calibration within one year is FOC with the fright cost charged. And we promise the products will be free from maintenance within warranty period.

Company Information                                                                                                                 Henan Chicheng Electric Co., Ltd is a ISO9001-2000 certified high-tech import and export company and also the government permitted gas detecting device manufacture with Measurement of production License (MC), The explosion-proof certificate (EX) and Fire type certificate (CNAS) approved, we are in in the research and marketing a range of portable and fixed gas detection products, industrial process automation control, safety protection and analytical instrument and we are in Zhengzhou Henan China.
