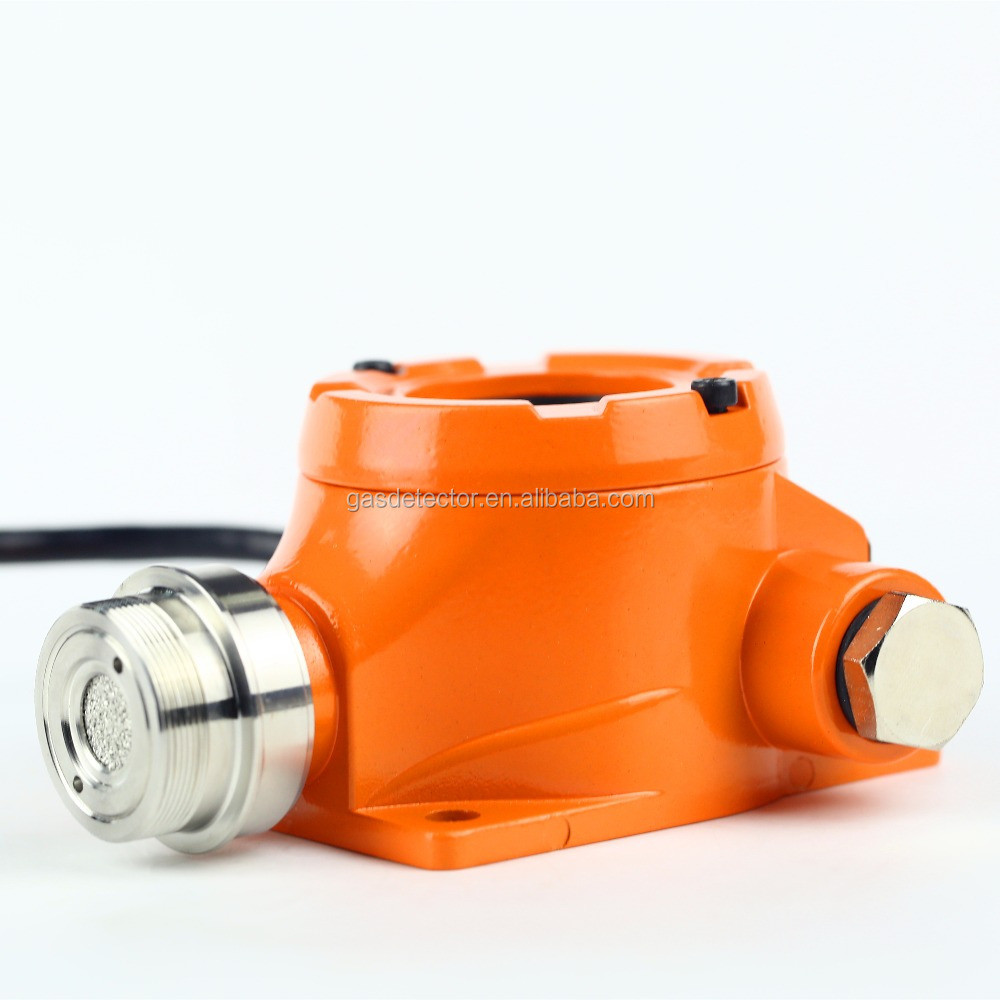

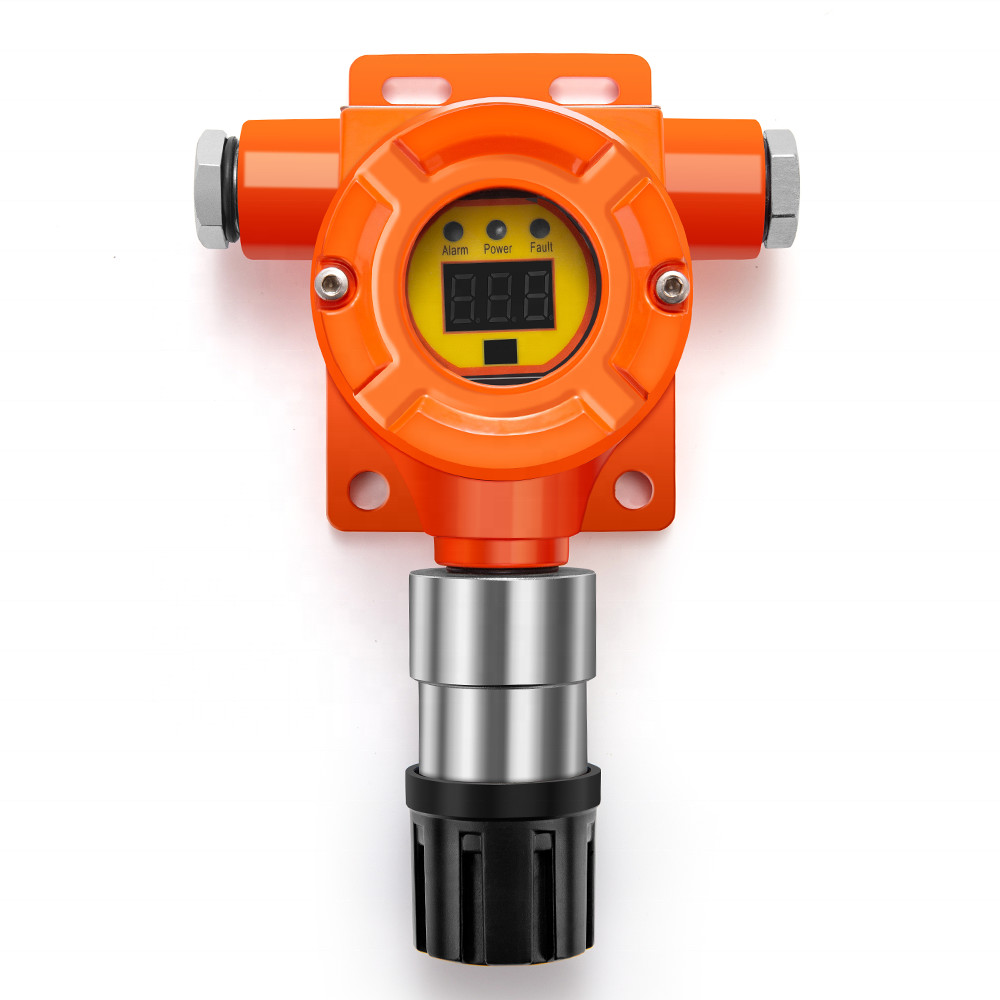

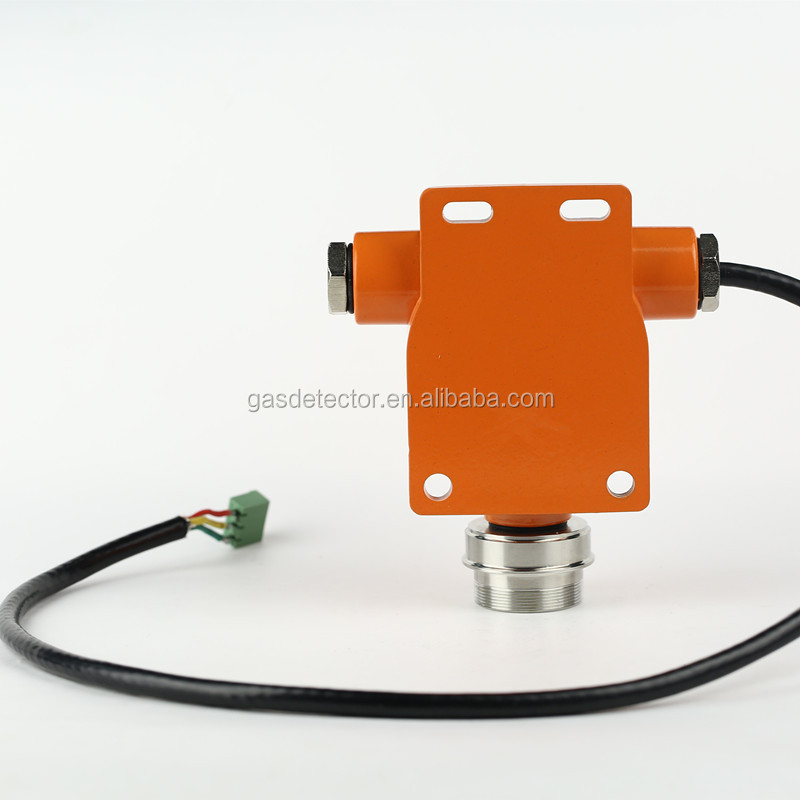

Fixed gas detector for natural gas in a permanent location
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Certification | CE |
| Model Number | QB10N |
| Price | $60.00 - $110.00/Pieces |
| Supply Ability | 1000 Unit/Units per Week |
| Network | NBiot | Product | Fixed Gas Detector |
|---|---|---|---|
| Model | QB10N | Color | Orange |
| Voltage | 10VDC-30VDC | Material | Cast Aluminum |
| Screen | LCD | Gas Detected | Lpg |
| Protection Grade | IP66 | Sensor | Catalytic Combustion Sensor |
| Distance For Infrared Remote Control | More Than 3 Meters |
Fixed gas detector for natural gas in a permanent location
There're a lot of combustible gas in the air of kitchen.
When the combustible gas concentration reachs the lower explosion limit, it's very dangerous.
But home gas alarm for combustible gas cannot keep working for long time in the kitchen of school or fire house, because there're too many oil mist, smoke etc.
So fixed gas detector for natural gas for industrial use is necessary.
Here we share a economic solution: QB10N
QB10N is used for natural gas leak for continuous inspection for long time at site
It features high precision, passive output, LCD and reasonable price.
Fixed gas detector for natural gas is generally mounted around the ch4 gas leak spot area or control room, or an area to be protected,such as a residential bedroom.
Once the concentration of ch4 in the air reaches the preset value, it sends signal to alarm lights, then alarm lights sounds an alarm by sound and light.
Characteristics of fixed gas detector for natural gas:
1.Catalytic combustion sensor,
2.High accuracy, stable, anti-toxic and anti-interference.
3.Self-test technology in the sensor, automatical alert for short circuit, power supply fault, etc.
4.4-20mA analog output for direct communication to DCS system, RS485 ModBus output for central unit.
5.Can be set with IR remote controller without open the upper enclosure.
6.Highlight segment digital display real-time concentration
7.Temperature compensation to ensure accuracy.
8.Built-relay switch output
9.Can be connected with audible-visual alarm.
10.Over-range protection for catalytic sensor
Technical parameters of fixed gas detector for lpg gas:
| Product name | fixed gas detector for lpg gas |
| Model | QB10N |
| Sensor type | catalytic combustion sensor |
| Range | 0-100%LEL |
| Resolution | 1 %LEL |
| Accuracy | <= + 3% F.S |
| Response time | T90<30s |
| Working current | ≤50 Ma |
| Output signal | 4 to 20mA standard signal(RS485 output optional) |
| Power supply to the detector terminals | 16~30V DC |
| Ambient air | Temperature:-20℃~+60℃ Humidity: < 90%(without condensation) |
| Type of cable | 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2 for 4-20mA signal or 4*1.5mm2 for RS485 signal, external diameter >=10mm |
| Transmitting Distance | <=1000meter |
| Mounting Screw thread | G1/2 |
| Weight | 1000g |
| Anti-explosion Class | Ex d IICT6Gb |
| Protection Class | IP66 |
| Material | Shell for detector:Cast aluminum; Shell for sensor: stainless steel |
Note: QB10N is with the digital display screen but QB10T is without the digital display screen. The visual and audible alarm is optional.
Our QC auditors perform aging test for continuously 48 hours strictly to ensure quality before shipping

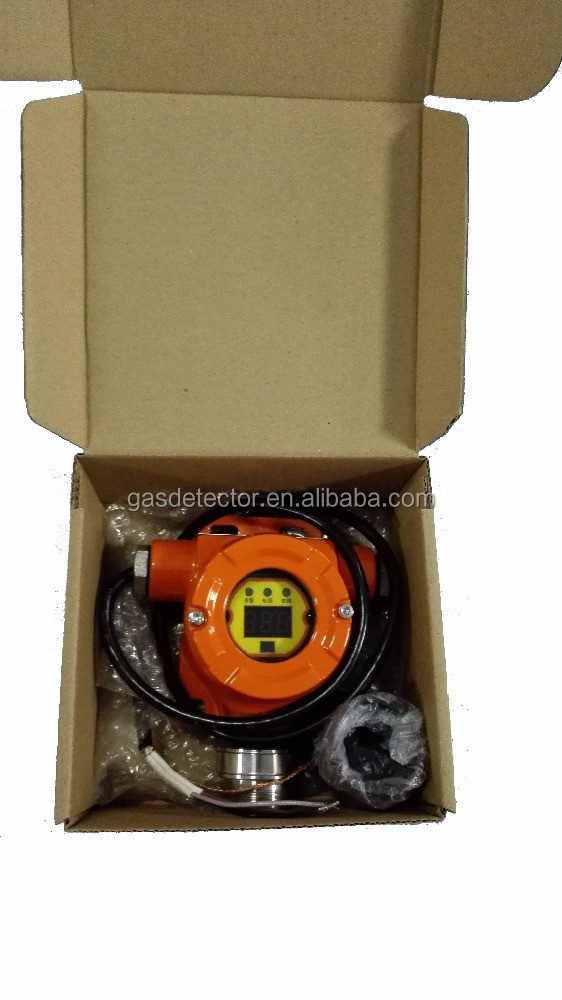

-Packaging:
