QB2000N digital stationary gas monitor industrial with 4-20mA or RS485 output to control panel
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Model Number | QB2000N |
| Price | $110.00 - $300.00/Pieces |
| Supply Ability | 5000 Piece/Pieces per Month |
| Type | Gas Detection | Anti-explosion Class | Ex D IICT6Gb |
|---|---|---|---|
| Protection Class | IP66 | Detected Gas | O2, NH3, CO, H2S, LEL, SO2 |
| Working Current | ≤50 Ma | Transmition Distance | <=1000meter |
| Response Time | T90<30s. | Model | QB2000N Fixed Oxygen Gas Analyzer |
| Display | LED Or LCD | Weight | 1200g |

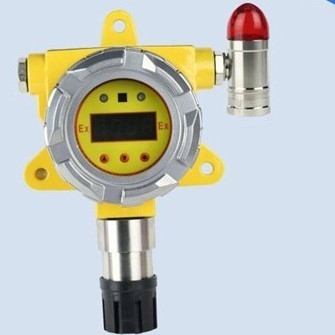

QB2000N digital stationary gas monitor industrial with 4-20mA or RS485 output to control panel
QB2000N digital stationary gas monitor industrial with 4-20mA or RS485 output to control panel is
a fixed gas detector, with 4-20 mA or RS485 ModBus RTU output proportional to the gas leakage
concentration with original imported sensor.
It can be directly connected with DCS systems or Central unit. With relay output, once the concentration
exceed the preset alarm point(threshold) it will start the acoustic-optical alarm on the central unit and
drive the external equipment like exhaust fans.
It has been widely used in petrol, chemistry, metallurgy, artifice, gas transportation, biological
medicine and water procession etc.
1. 4-20mA analog output for direct communication to DCS system, RS485 ModBus output for
central unit
2. Relay output for connecting external device
3. LCD display screen
4. Sensor module(block) design on -spot replacement s and automatically distinguish sensor fault and current display fault simultaneously.
5. Password verification for repeat operation, avoid fault operations.
6. -40~+70℃ following compensation for accurate detecting.
7. Second grade visual alarms on-site and Relay(connected with audible/visual alarms or drive
exhaust device).
8. User-selectable alarm setpoint(s).
9. Note: QB2000N is with the digital display screen but QB2000T is without the digital display screen.
The visual and audible alarm is optional.
| Model | QB2000N fixed Oxygen gas detector |
| Sensor type | original imported gas sensor |
| Detected gas | 0-30%VOL gas (other gas range, pls check the table) |
| Resolution | 0.1ppm |
| Accuracy | 3%F.S |
| Response time | T90<30s. |
| Operating Temperature | -20℃~+60℃ |
| Humidity | < 90%RH(no condensation) |
| Working current | ≤50 Ma |
| Output signal | 4 to 20mA standard signal(RS485 output optional) |
| Power supply | 16~30V DC. |
| Type of cable | 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2 for 4-20mA signal OR 4*1.5mm2 for RS485 signal, external diameter ≥10mm |
| Transmition Distance | ≤1000meter |
| Mounting Screw thread | M20*1.5 or G1/2. |
| Alarm indication | ≥85dB the higher of buzz frequency,the higher gas concentration is |
| Anti-explosion Class | Ex d IICT6Gb |
| IP grade | IP66 |
| Weight | 1200g |
Gas measured:
Packing & Delivery
1.Packaging: Carton box or Aluminum box on your requirement
2.Delivery: Sample order in stock and 3-7 working days for bulk production.
3.Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
4.Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
5.You can also choose your own shipping forwarder.
1.Basic Information:
a. Founded in 2004;
b. 10 million annual sales volume;
c. Located in Zhengzhou, Henan province, China;
d. ODM & OEM service available;
e. Factory price.
f. Delivery on time;
g.1-3 year warranty;
2.Mold Workshop:
a. 3000 square meter factory area;
b. 10 production lines;
c. 50 experience R&D engineers;
d. Strict production flow;
FAQ
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
d. Your other ideas about gas detection tools, we can help you design and put them into production.
e. Different language versions, such as English, Russian, Chinese, etc. according to customers requirement.
