QB2000N Chemical plant usage ethanol gas monitoring detector with 4-20mAh or RS485 signal Output
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Model Number | QB2000N/T |
| Price | $280.00 - $350.00/Sets |
| Packaging Details | each set fixed gas detector will be packed with the export standard carton package. |
| Supply Ability | 5550 Set/Sets per Month fixed ammonia gas alarm detector |
| Product Name | Ethanol Gas Monitoring Detector | Color | Yellow |
|---|---|---|---|
| Model | QB2000N/T | Display | LED Or LCD |
| Anti-explosion Class | Ex D IICT6Gb | Working Current | ≤50 Ma |
| Response Time | T90<30s. | Transmition Distance | <=1000meter |
| Protection Class | IP66 | Weight | 1200g |
| Port | China Main Ports |

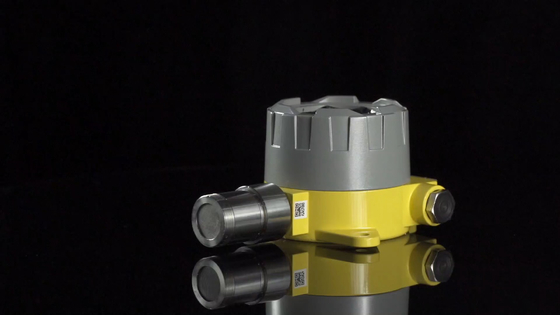

QB2000N Chemical plant usage ethanol gas monitoring detector
ethanol gas monitoring detector product description
QB2000N is Industrial grade LCD/LED gas leack detector, with 4-20 mA or RS485 ModBus RTU outputproportional to the gas leakage concentration with original imported electro-chemical sensor. It has been widely used in petrol, chemistry, metallurgy, artifice, gas transportation, biological medicine and water procession etc.
The online gas detector monitors gas leakage by natural diffusion.It can be directly connected with DCS systems or Central unit. With relay output, once the concentration exceed the preset alarm point(threshold), it will start the acoustic-optical alarm on the central unit and drive the external equipment like exhaust fans.
ethanol gas monitoring detector product features
- Changable Sensor mould
- Relay output for connecting external device
- LCD display screen(LED display screen optional)
- Password verification for repeat operation, avoid fault operations.
- Second grade visual alarms on-site and Relay(connected with audible/visual alarms or drive exhaust device).
- selectable alarm setpoint.
ethanol gas monitoring detector technical specifications
- Sensor type: original imported electro-chemical sensor for toxic gas, and catalytic combustion sensor for combustible gas.
- Resolution:1%LEL, 1%VOL, 1ppm or 0.1ppm
- Accuracy:≤ ± 3% F.S
- Response time:T90<30s.
- Output signal: 4 to 20mA standard signal(RS485 output optional)
- Power supply: 16~30V DC.
- Ambient Parameter: Temperature:-20°C~+60°C.
- Humidity: < 90%(without condensating)
- Type of cable: 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2 for 4-20mA signal OR 4*1.5mm2 for RS485 signal
- Transmition Distance:<=1000meter
- Mounting Screw thread: G1/2.
- Weight:1200g.
- Anti-explosion Grade: Ex d IICT6Gb
- Protection Grade:IP66.
| Detector Model | Gas Detected | Range | Range Optional | Resolution | Responding Time |
| CO Detector | CO | 0-1000ppm | 0-500/2000/5000ppm | 1ppm | 20s |
| O2 Detector | O2 | 0-25%VOL | 30%VOL | 0.1%VOL | 20s |
| O3 Detector | O3 | 0-10ppm | 0-100ppm | 0.01ppm | 20s |
| H2S Detector | H2S | 0-100ppm | 0-50/200/1000ppm | 1ppm | 30s |
| H2 Detector | H2 | 0-1000ppm | 0-5000ppm | 1ppm | 30s |
| CL2 Detector | CL2 | 0-20ppm | 0-10/100ppm | 0.1ppm | 30s |
| NH3 Detector | NH3 | 0-100ppm | 0-50/500/1000ppm | 1ppm | 30s |
| SO2 Detector | SO2 | 0-20ppm | 0-50/1000ppm | 0.1ppm | 30s |
| NO Detector | NO | 0-25ppm | 0-500ppm | 0.1ppm | 30s |
| NO2 Detector | NO2 | 0-20ppm | 0-50/100ppm | 0.1ppm | 30s |
| CH2O Detector | CH2O | 0-50ppm | 0-5/10ppm | 0.01ppm | 30s |
| HCL Detector | HCL | 0-20ppm | 0-20/100ppm | 0.5ppm | 30s |
| Combustible Gas Detector | EX | 0-100%LEL | 0-100%LEL | 1% | 30s |
| For the gas that is not covered here though, please don’t hesitate to contact us. | |||||
ethanol gas monitoring detector product details
Company profile
More than 10 years industrial experience
ODM & OEM service
1-3 year warranty
3000 square meter factory area
10 production lines
50 experience R&D engineers
Product overview
-
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.
ethanol gas monitoring detector Packing & delivery
Packaging: Carton box or Aluminum box on your requirement
Delivery: Sample order in stock and 3-7 working days for bulk production.
Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
FAQ:
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
