Industry use high precision methane gas meter gas detector with remote control

Place of Origin Henan, China
Brand Name chicheng
Certification CE
Model Number QB2000N
Price $140.00 - $230.00/Sets
Packaging Details each set methane gas meter will be packed with the export standard carton package or aluminum box or as per customer require
Supply Ability 5550 Set/Sets per Month methane gas meter
Product Details
Customized Support OEM, ODM Display LED Or LCD
Anti-explosion Class Ex D IICT6Gb Working Current ≤50 Ma
Transmition Distance <=1000meter Response Time T90<30s.
Protection Class IP66 Weight 1200g
Detected Gas Methane Gas Model QB2000 Methane Gas Meter
Color Yellow Port Qingdao,Shanghai,Shenzhen Etc
Leave a Message
Product Description

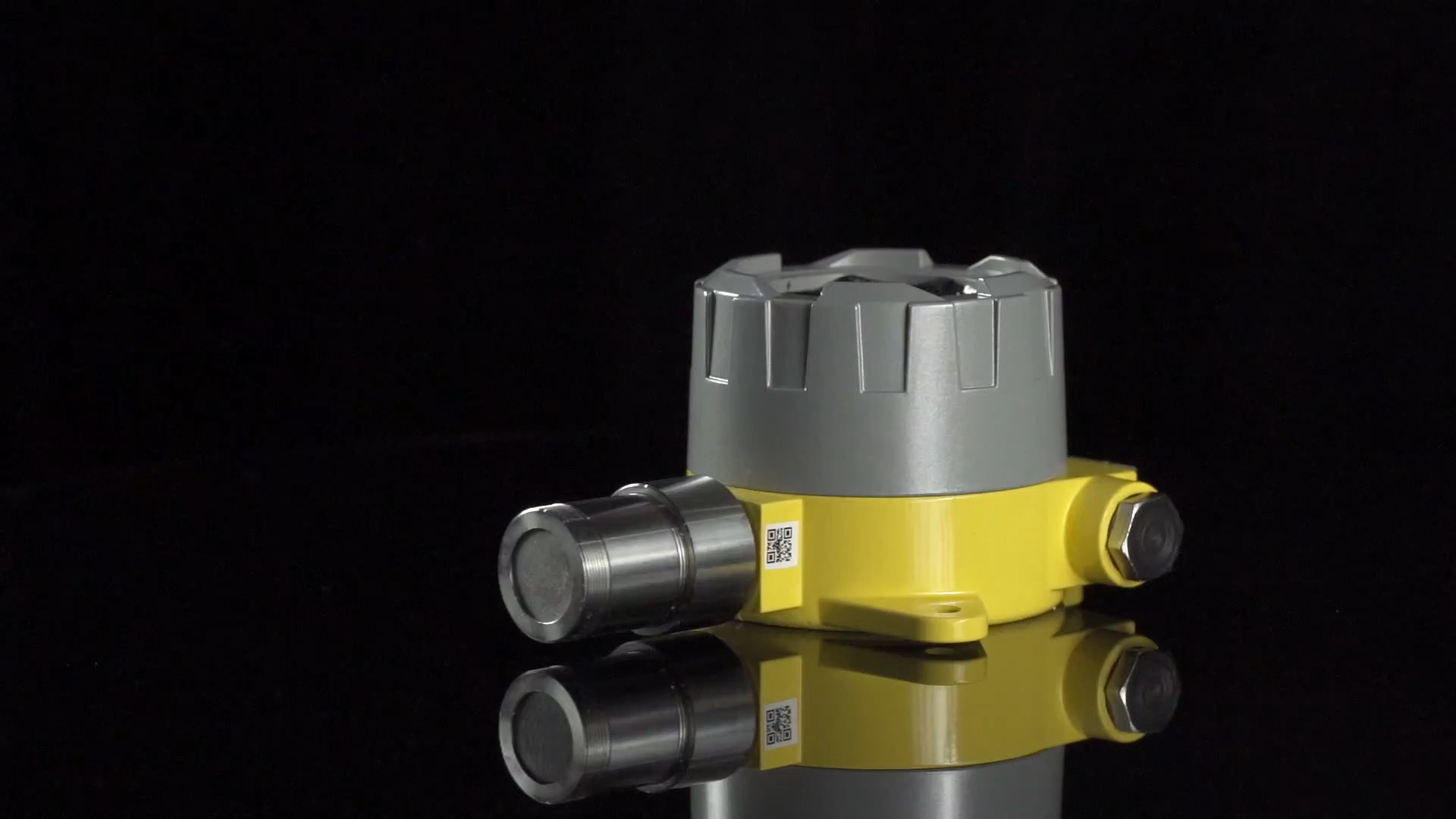

QB2000N Industry use high precision methane gas meter gas detector with remote control



Fixed methane gas meter gas detector product description



QB2000N is Industrial grade LCD/LED gas leack detector, with 4-20 mA or RS485 ModBus RTU outputproportional to the gas leakage concentration with original imported electro-chemical sensor. It has been widely used in petrol, chemistry, metallurgy, artifice, gas transportation, biological medicine and water procession etc.

 Industry use high precision methane gas meter gas detector with remote control 0Industry use high precision methane gas meter gas detector with remote control 2Industry use high precision methane gas meter gas detector with remote control 4

The online gas detector monitors gas leakage by natural diffusion.It can be directly connected with DCS systems or Central unit. With relay output, once the concentration exceed the preset alarm point(threshold), it will start the acoustic-optical alarm on the central unit and drive the external equipment like exhaust fans.



Fixed methane gas meter gas detector product features

  • Changable Sensor mould
  •  Relay output for connecting external device
  •  LCD display screen(LED display screen optional)
  •  Password verification for repeat operation, avoid fault operations.
  •  Second grade visual alarms on-site and Relay(connected with audible/visual alarms or drive exhaust device).
  • selectable alarm setpoint.



Fixed methane gas meter gas detector technical specifications

  • Sensor type: original imported electro-chemical sensor for toxic gas, and catalytic combustion sensor for combustible gas.
  •  Resolution:1%LEL, 1%VOL, 1ppm or 0.1ppm
  •  Accuracy:≤ ± 3% F.S
  • Response time:T90<30s.
  • Output signal: 4 to 20mA standard signal(RS485 output optional)
  •  Power supply: 16~30V DC.
  •  Ambient Parameter: Temperature:-20°C~+60°C.
  • Humidity: < 90%(without condensating)
  • Type of cable: 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2  for 4-20mA signal OR 4*1.5mm2 for RS485 signal
  • Transmition Distance:<=1000meter
  • Mounting Screw thread: G1/2.
  • Weight:1200g.
  • Anti-explosion Grade: Ex d IICT6Gb
  • Protection Grade:IP66.



Detector Model

Gas Detected

Range

Range Optional

Resolution

Responding Time

CO Detector

CO

0-1000ppm

0-500/2000/5000ppm

1ppm

20s

O2 Detector

O2

0-25%VOL

30%VOL

0.1%VOL

20s

O3 Detector

O3

0-10ppm

0-100ppm

0.01ppm

20s

H2S Detector

H2S

0-100ppm

0-50/200/1000ppm

1ppm

30s

H2 Detector

H2

0-1000ppm

0-5000ppm

1ppm

30s

CL2 Detector

CL2

0-20ppm

0-10/100ppm

0.1ppm

30s

NH3 Detector

NH3

0-100ppm

0-50/500/1000ppm

1ppm

30s

SO2 Detector

SO2

0-20ppm

0-50/1000ppm

0.1ppm

30s

NO Detector

NO

0-25ppm

0-500ppm

0.1ppm

30s

NO2 Detector

NO2

0-20ppm

0-50/100ppm

0.1ppm

30s

CH2O Detector

CH2O

0-50ppm

0-5/10ppm

0.01ppm

30s

HCL Detector

HCL

0-20ppm

0-20/100ppm

0.5ppm

30s

Combustible Gas Detector

EX

0-100%LEL

0-100%LEL

1%

30s

For the gas that is not covered here though, please don’t hesitate to contact us.

Fixed methane gas meter gas detector product details

Industry use high precision methane gas meter gas detector with remote control 6Industry use high precision methane gas meter gas detector with remote control 8Industry use high precision methane gas meter gas detector with remote control 10 Industry use high precision methane gas meter gas detector with remote control 12Industry use high precision methane gas meter gas detector with remote control 14

Company profile

More than 10 years industrial experience

ODM & OEM service

1-3 year warranty



3000 square meter factory area

10 production lines

50 experience R&D engineers

Industry use high precision methane gas meter gas detector with remote control 16Industry use high precision methane gas meter gas detector with remote control 10 Industry use high precision methane gas meter gas detector with remote control 20Industry use high precision methane gas meter gas detector with remote control 22Industry use high precision methane gas meter gas detector with remote control 10 Industry use high precision methane gas meter gas detector with remote control 26Industry use high precision methane gas meter gas detector with remote control 28Industry use high precision methane gas meter gas detector with remote control 10 Industry use high precision methane gas meter gas detector with remote control 32



 Product overview

  1. Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc

    Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.



    Industry use high precision methane gas meter gas detector with remote control 34



Fixed methane gas meter gas detector Packing & delivery

 Packaging: Carton box or Aluminum box on your requirement

Delivery: Sample order in stock and 3-7 working days for bulk production.

Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.

Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.

You can also choose your own shipping forwarder.

Industry use high precision methane gas meter gas detector with remote control 36

FAQ:

1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.


2. What is the lead time?

A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.

3. Do you have any MOQ limit?

A: We don’t have a MOQ limit, 1 pc are also welcome.

4. Do you offer guarantee for the products?

A: Yes, we offer one or two year guarantee for the products.

5. Do you accept drop shipping?

A: Yes, it’s available.

6. What will your ODM&OEM service cover?

A: a. Customer brand and logo print (law allowed) can be made on the sticker.

b. Customized color and special function of gas detection tools.


Industry use high precision methane gas meter gas detector with remote control 10 Industry use high precision methane gas meter gas detector with remote control 40
