relay output sensor module design natural gas meter detector
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Model Number | QB2000N |
| Price | $120.00 - $180.00/Sets |
| Packaging Details | each set natural gas meter will be packed with the export standard carton package |
| Supply Ability | 5550 Set/Sets per Month natural gas meter |
| Detected Gas | Natural Gas | Model | QB2000 Natural Gas Meter |
|---|---|---|---|
| Color | Yellow | Display | LED Or LCD |
| Anti-explosion Class | Ex D IICT6Gb | Working Current | ≤50 Ma |
| Transmition Distance | <=1000meter | Response Time | T90<30s. |
| Protection Class | IP66 | Weight | 1200g |
| Port | Qingdao |
relay output sensor module design natural gas meter detector

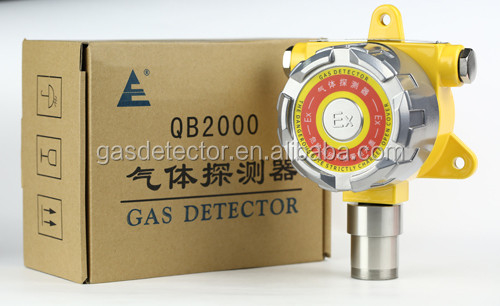

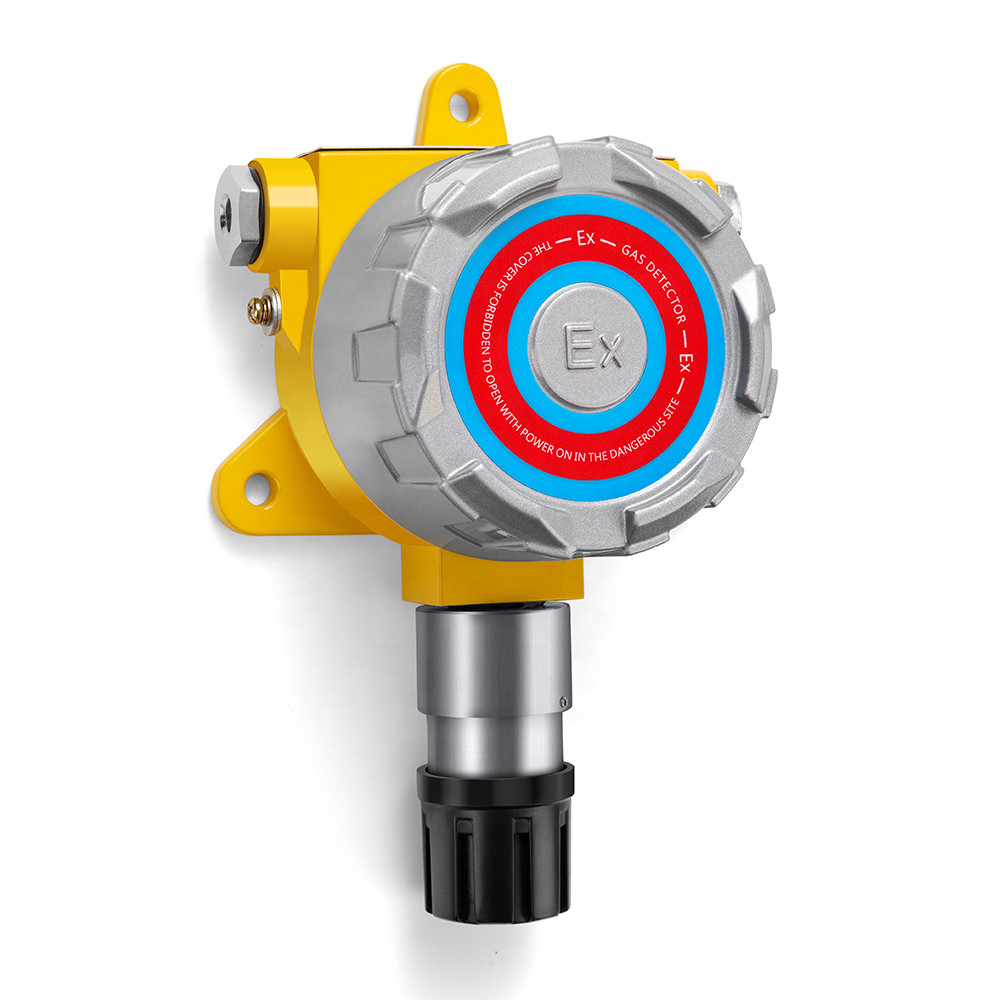

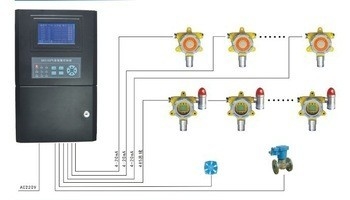

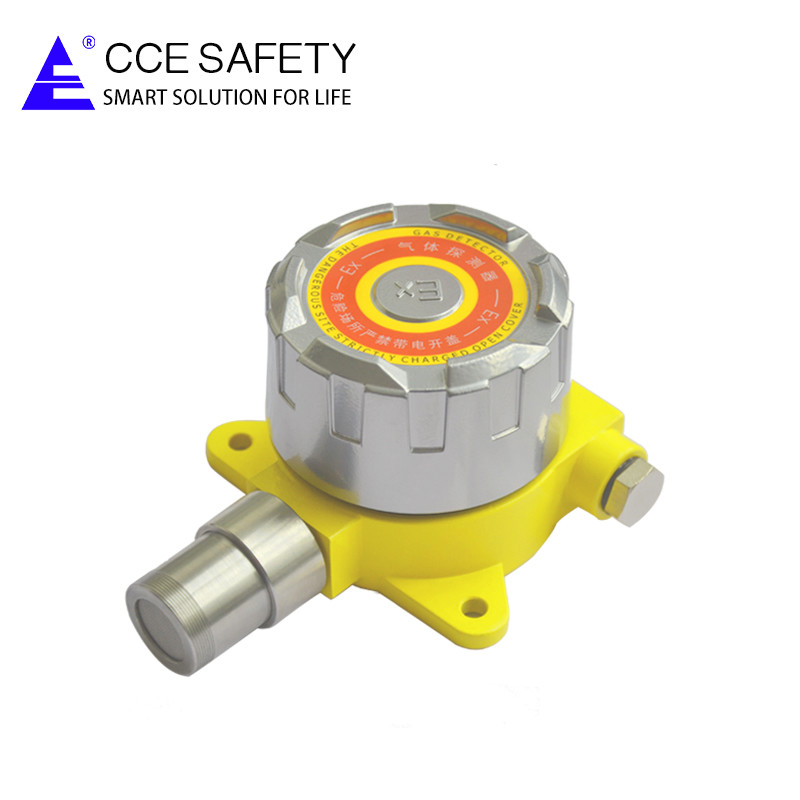

QB2000N relay output sensor module design natural gas meter is a fixed gas detecting transmitter, with 4-20 mA or RS485 ModBus RTU output proportional to the gas leakage concentration with original imported electro-chemical sensor. It monitors gas leakage by natural diffusion. It is flexible, durable, accuracy, stable and etc. and it can be directly connected with DCS systems or Central unit. With relay output, once the concentration exceed the preset alarm point(threshold) it will start the acoustic-optical alarm on the central unit and drive the external equipment like exhaust fans. It has been widely used in petrol, chemistry, metallurgy, artifice, gas transportation, biological medicine and water procession etc.
1. 4-20mA analog output for direct communication to DCS system, RS485 ModBus output for central unit
2. Relay output for connecting external device

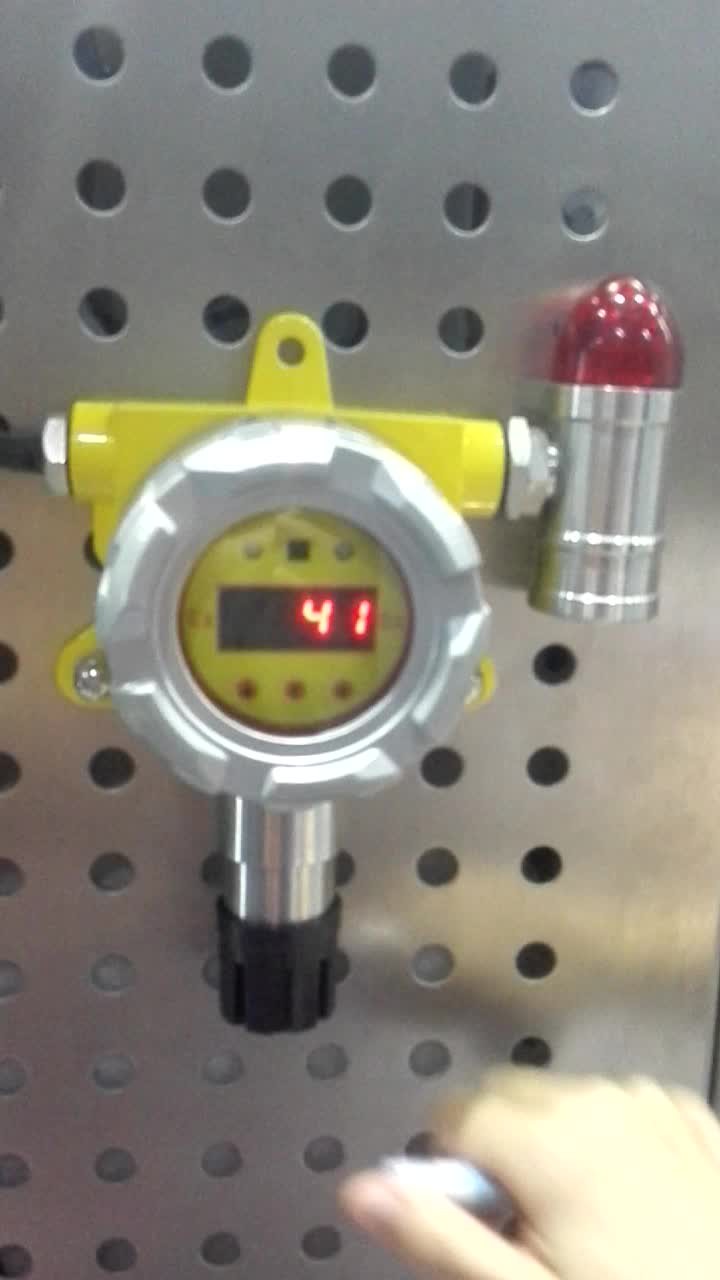

3. LCD display screen
4. Sensor module(block) design on -spot replacement s and automatically distinguish sensor fault and current display fault simultaneously.
5. Password verification for repeat operation, avoid fault operations.
6. -40~+70℃ following compensation for accurate detecting.

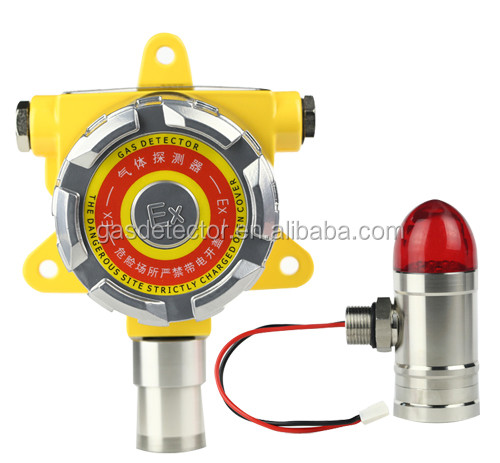

7. Second grade visual alarms on-site and Relay(connected with audible/visual alarms or drive exhaust device).
8. User-selectable alarm setpoint(s).

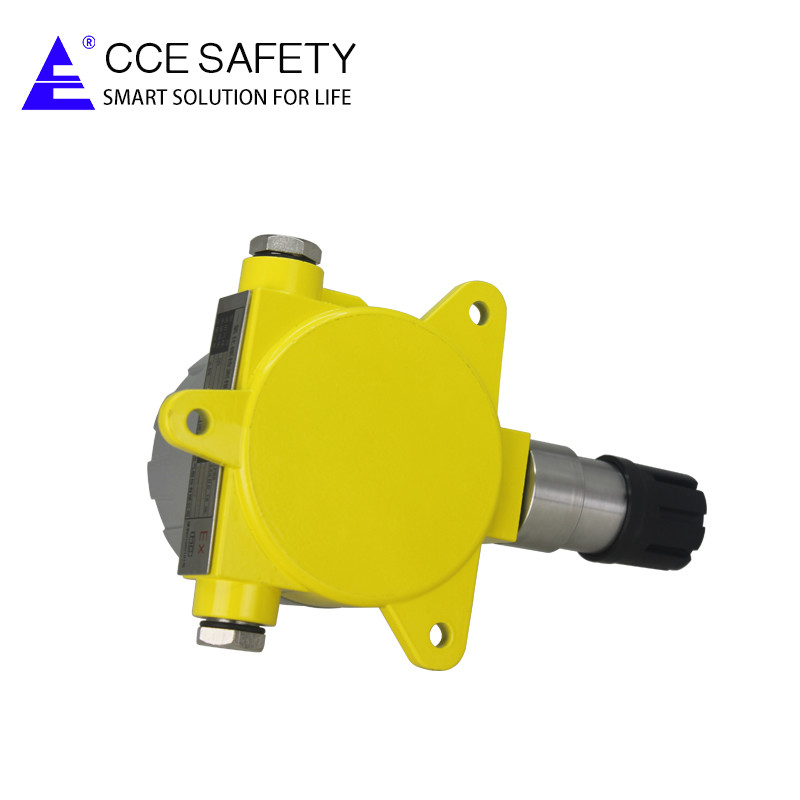

9. Note: QB2000N is with the digital display screen but QB2000T is without the digital display screen. The visual and audible alarm is optional.
| Model | QB2000N natural gas meter |
| Sensor type | original imported electro-chemical sensor or catalytic combustion sensor. |
| Detected gas | Combustible gas,toxic gas and oxygen gas |
| Resolution | 1% LEL,0.1%VOL, 1ppm or 0.1ppm |
| Accuracy | 3%F.S |
| Response time | T90<30s. |
| Operating Temperature | -20℃~+60℃ |
| Humidity | < 90%RH(no condensation) |
| Working current | ≤50 Ma |
| Output signal | 4 to 20mA standard signal(RS485 output optional) |
| Power supply | 16~30V DC. |
| Type of cable | 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2 for 4-20mA signal OR 4*1.5mm2 for RS485 signal, external diameter ≥10mm |
| Transmition Distance | ≤1000meter |
| Mounting Screw thread | M20*1.5 or G1/2. |
| Alarm indication | ≥85dB the higher of buzz frequency,the higher gas concentration is |
| Anti-explosion Class | Ex d IICT6Gb |
| IP grade | IP66 |
| Weight | 1200g |
Chicheng has a mission to offer proper device and excellent all-round services to customers from automotive production plants, petrochemical, gas, pharmaceutical and metallurgical industries, Zinfandel producing wineries etc. R&D center of Chicheng, cooperating with the national science centers and universities, has been focusing on research of the techniques, design and project service. Achievements of the R&D teams had been granted patents and trusted by users nationwide.
CE and ISO certificate
Giving the best to our clients
Listening to client’s needs and feedback
Observing statutory and regulatory requirement
Being reliable and efficient
Acquiring latest skills and technology
Lowering cost for our clients
1, I will be here within 24 hrs for your any questions and require.
2, Supplying you the professional answers anytime.
3, All products will have been strictly Quality Checked before packing for you.
4, All products will be well packed before shipping.
5, All our products have 2 year warranty. And we sure the product will be free from maintenance within warranty period.
6, Fast delivery for you anytime. We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
7. Flexible payment, You can pay for the order via T/T, Western Union, Paypal & Money Gram.
