AC 220V 2A alarm output fixed hydrogen gas detector connected with DCS system
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Model Number | QB2000N |
| Price | $160.00 - $220.00/Sets |
| Supply Ability | 5550 Set/Sets per Month hydrogen detectors |
| MOQ | 1 | Model | QB2000 Hydrogen Detectors |
|---|---|---|---|
| Display | LED Or LCD | Anti-explosion Class | Ex D IICT6Gb |
| Working Current | ≤50 Ma | Transmition Distance | <=1000meter |
| Color | Yellow | Response Time | T90<30s. |
| Protection Class | IP66 | Weight | 1200g |
AC 220V 2A alarm output fixed hydrogen gas detector connected with DCS system
The description of the AC 220V 2A alarm output hydrogen gas detector connected with industry DCS system
QB2000N hydrogen gas detector is a fixed gas detecting transmitter,with 4-20mA or RS485 ModBus RTU output proportional to the gas leakage concentration with original imported electro-chemical sensor. It monitors gas leakage by natural diffusion.
AC 220V 2A alarm output hydrogen gas detector connected with industry DCS system is flexible, durable, accuracy, stable and etc. and it can be directly connected with DCS systems or Central unit. With relay output, once the concentration exceed the preset alarm point(threshold) it will start the acoustic-optical alarm on the central unit and drive the external equipment like exhaust fans. It has been widely used in petrol, chemistry, metallurgy, artifice, gas transportation, biological medicine and water procession etc.
The Features of the QB2000N AC 220V 2A alarm output hydrogen gas detector connected with industry DCS system
1. 4-20mA analog output for direct communication to DCS system, RS485 ModBus output for central unit
2. Relay output for connecting external device
3. LCD display screen
4. Sensor module(block) design on -spot replacement s and automatically distinguish sensor fault and current display fault simultaneously.
5. Password verification for repeat operation, avoid fault operations.
6. -40~+70℃ following compensation for accurate detecting.
7. Second grade visual alarms on-site and Relay(connected with audible/visual alarms or drive exhaust device).
8. User-selectable alarm setpoint(s).
9. Note: QB2000N is with the digital display screen but QB2000T is without the digital display screen. The visual and audible alarm is optional.
The Technical Index of the QB2000N AC 220V 2A alarm output hydrogen gas detector connected with industry DCS system
| Model | QB2000N hydrogen detector |
| Sensor type | original imported electro-chemical sensor or catalytic combustion sensor. |
| Detected gas | Combustible gas,toxic gas and oxygen gas |
| Resolution | 1% LEL,0.1%VOL, 1ppm or 0.1ppm |
| Accuracy | 3%F.S |
| Response time | T90<30s. |
| Operating Temperature | -20℃~+60℃ |
| Humidity | < 90%RH(no condensation) |
| Working current | ≤50 Ma |
| Output signal | 4 to 20mA standard signal(RS485 output optional) |
| Power supply | 16~30V DC. |
| Type of cable | 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2 for 4-20mA signal OR 4*1.5mm2 for RS485 signal, external diameter ≥10mm |
| Transmition Distance | ≤1000meter |
| Mounting Screw thread | M20*1.5 or G1/2. |
| Alarm indication | ≥85dB the higher of buzz frequency,the higher gas concentration is |
| Anti-explosion Class | Ex d IICT6Gb |
| IP grade | IP66 |
| Weight | 1200g |
The detail images of the QB2000N AC 220V 2A alarm output hydrogen gas detector connected with industry DCS system

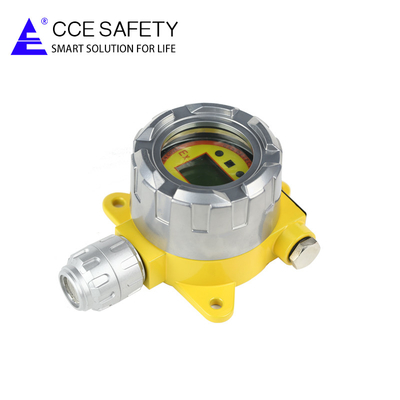

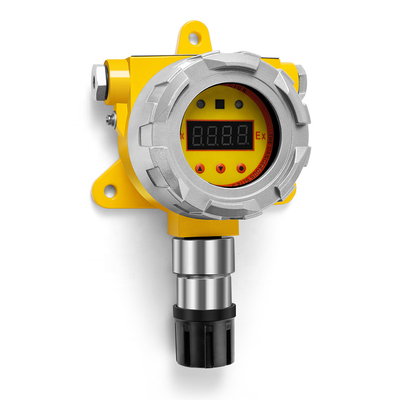

The LED/LCD display of the hydrogen detector:
The keypad and screw type coupling of the hydrogen detector
The sensor module of the hydrogen detector
The anti-dust cover of the hydrogen detector
The scutcheon of the hydrogen detector

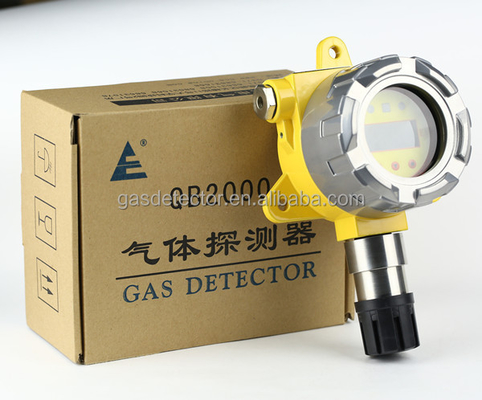

The packaging of the hydrogen detector
The strict inspection before shipping of the hydrogen detector:
The related product of the hydrogen detector:
How the hydrogen detector connected with control panel:
