LCD or LED 4-20mA h2 hydrogen gas detector connected with control panel
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Model Number | QB2000N |
| Price | $180.00 - $350.00/Sets |
| Packaging Details | each set hydrogen gas detector will be packed with the export standard carton package or aluminum box or as per customer require |
| Supply Ability | 5550 Set/Sets per Month hydrogen gas detector |
| Detected Gas | Hydrogen | Model | QB2000 Hydrogen Gas Detector |
|---|---|---|---|
| Color | Yellow | Display | LED Or LCD |
| Anti-explosion Class | Ex D IICT6Gb | Working Current | ≤50 Ma |
| Transmition Distance | <=1000meter | Response Time | T90<30s. |
| Protection Class | IP66 | Weight | 1200g |
| Port | China Main Port |
LCD or LED 4-20mA h2 hydrogen gas detector connected with control panel
The description of the LCD or LED 4-20mA h2 hydrogen gas detector connected with control panel:
QB2000N hydrogen gas detector is a fixed gas detecting transmitter,with 4-20mA or RS485 ModBus RTU output proportional to the gas leakage concentration with original imported electro-chemical sensor. It monitors gas leakage by natural diffusion.
LCD or LED 4-20mA h2 hydrogen gas detector connected with control panel is flexible, durable, accuracy, stable and etc. and it can be directly connected with DCS systems or Central unit. With relay output, once the concentration exceed the preset alarm point(threshold) it will start the acoustic-optical alarm on the central unit and drive the external equipment like exhaust fans. It has been widely used in petrol, chemistry, metallurgy, artifice, gas transportation, biological medicine and water procession etc.
The Features of the QB2000N LCD or LED 4-20mA h2 hydrogen gas detector connected with control panel
1. 4-20mA analog output for direct communication to DCS system, RS485 ModBus output for central unit
2. Relay output for connecting external device
3. LCD display screen
4. Sensor module(block) design on -spot replacement s and automatically distinguish sensor fault and current display fault simultaneously.
5. Password verification for repeat operation, avoid fault operations.
6. -40~+70℃ following compensation for accurate detecting.
7. Second grade visual alarms on-site and Relay(connected with audible/visual alarms or drive exhaust device).
8. User-selectable alarm setpoint(s).
9. Note: QB2000N is with the digital display screen but QB2000T is without the digital display screen. The visual and audible alarm is optional.
The Technical Index of the QB2000N LCD or LED 4-20mA h2 hydrogen gas detector connected with control panel
| Model | QB2000N hydrogen gas detector |
| Sensor type | original imported electro-chemical sensor or catalytic combustion sensor. |
| Detected gas | Combustible gas,toxic gas and oxygen gas |
| Resolution | 1% LEL,0.1%VOL, 1ppm or 0.1ppm |
| Accuracy | 3%F.S |
| Response time | T90<30s. |
| Operating Temperature | -20℃~+60℃ |
| Humidity | < 90%RH(no condensation) |
| Working current | ≤50 Ma |
| Output signal | 4 to 20mA standard signal(RS485 output optional) |
| Power supply | 16~30V DC. |
| Type of cable | 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2 for 4-20mA signal OR 4*1.5mm2 for RS485 signal, external diameter ≥10mm |
| Transmition Distance | ≤1000meter |
| Mounting Screw thread | M20*1.5 or G1/2. |
| Alarm indication | ≥85dB the higher of buzz frequency,the higher gas concentration is |
| Anti-explosion Class | Ex d IICT6Gb |
| IP grade | IP66 |
| Weight | 1200g |
The detail images of the LCD or LED 4-20mA h2 hydrogen gas detector connected with control panel

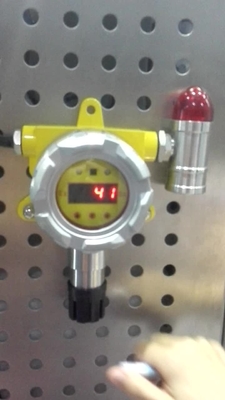

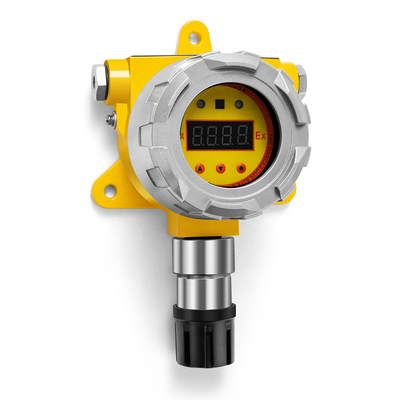

The LED/LCD display of the hydrogen gas detector:
The keypad and screw type coupling of the hydrogen gas detector
The sensor module of the hydrogen gas detector
The anti-dust cover of the hydrogen gas detector
The scutcheon of the hydrogen gas detector

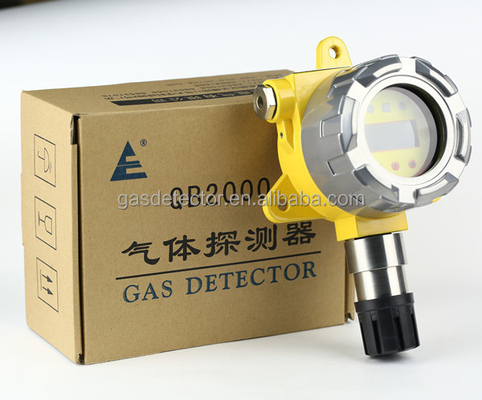

The packaging of the hydrogen gas detector
