Portable methanol gas detector ppm CH3OH monitor with pump
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Chicheng |
| Model Number | GC510 |
| Price | $200.00 - $300.00/Pieces |
| Supply Ability | 5000 Set/Sets per Month |
| Type | CH3OH Monitor | Power Supply | 7.4V Li-ion Chargeable Battery |
|---|---|---|---|
| Material | Engineering Material | Screen | LCD |
| Gas | Methanol | Protection Grade | IP65 |
| Sensor | Electrochemical Sensor | Test | Pump |
| Product | Methanol Gas Detector | Model | GC510 |
| Color | Black |
GC510 Portable methanol gas detector ppm CH3OH monitor with pump
Portable methanol gas detector product description
Portable gas detector GC510 is a kind of gas detector which detects toxic gas, combustible gas, oxygen gas, etc in the working application continuously. It is widely applicable to such application where is explosion-proof, toxic gas leakage emergency rescue, underground or mine, etc, so that can guarantee the workers’ life and safety to avoid any violation, the equipment are not affected by the loss.
The diffusion gas detection can be operated in the special short distance environment and confined pipes by the external flexible probe( can detect combustible gas only for now).
GC510 can also be equipped with built-in air pump to extract air and test the air sample in the testing area, then transfer the air sample into the gas detector to test, which is with rapid detection speed. Long distance detection can be performed in the dangerous area to guarantee the worker’s safety.
Portable methanol gas detector product features
♦ Small size, light weight and durable
♦ Adopt embedded 16-bit microprocessor, ensure that the product is in stable and reliable operation.
♦ Visual, audible, vibration alarm.
♦ Chinese or English menu is optional.
♦ Large display screen, easy operation.
♦ Self-test function.
♦ 1000 alarm records storage.
♦ Save and restore the factory setting function.

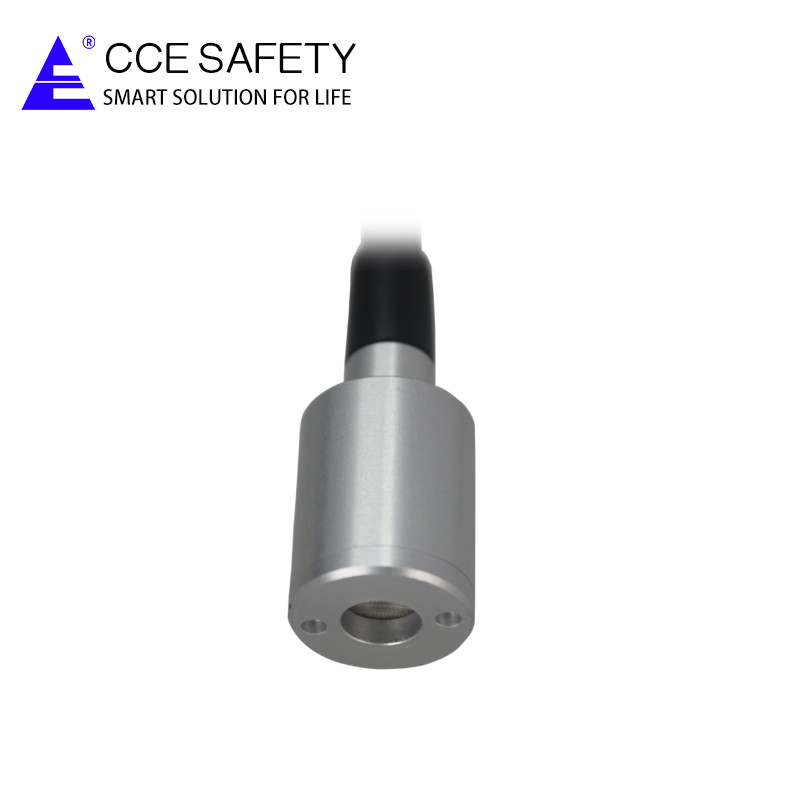

♦ External flexible probe(Optional) for combustible gas only.
♦ Embedded air pump(Optional).

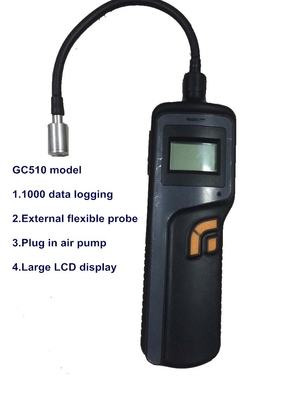

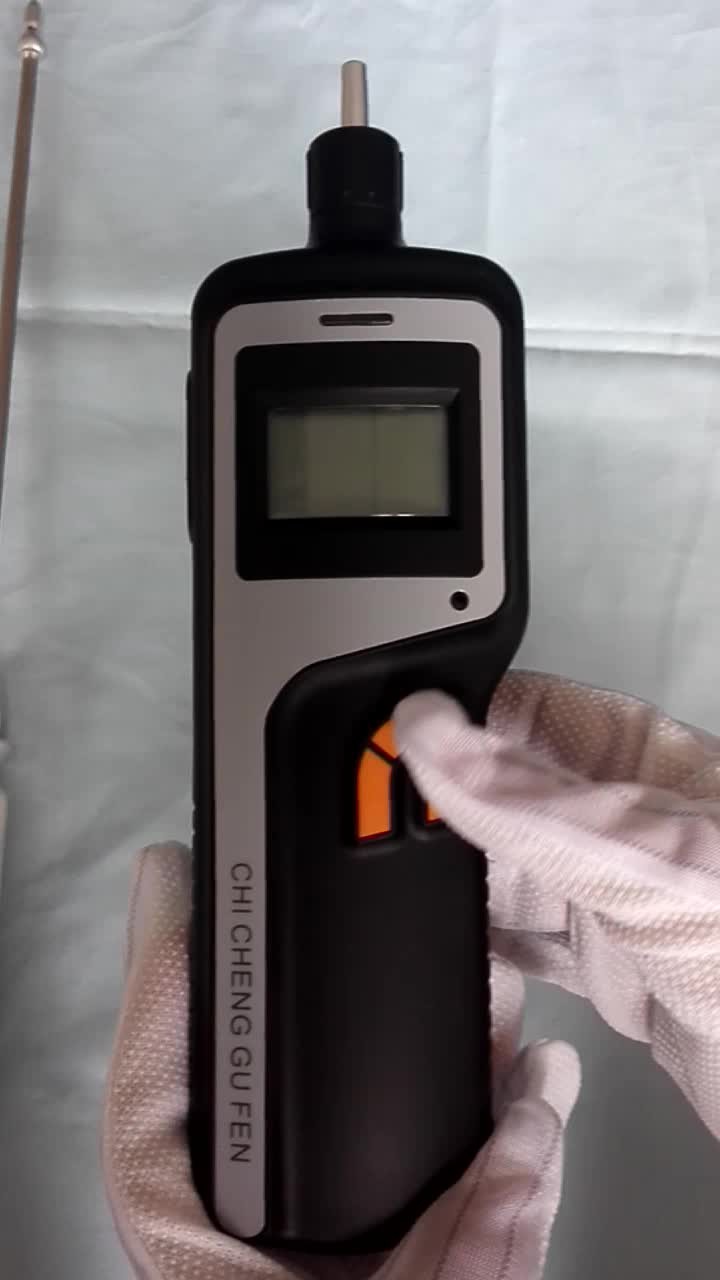

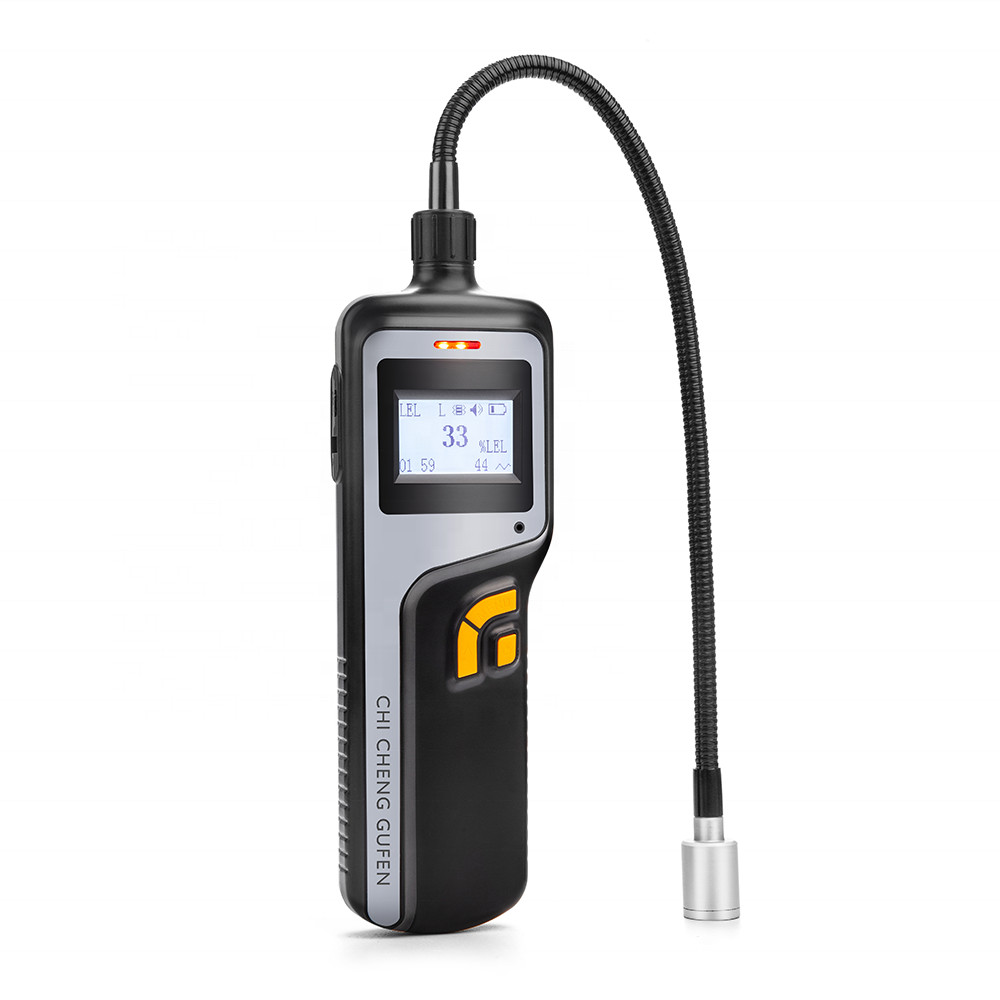

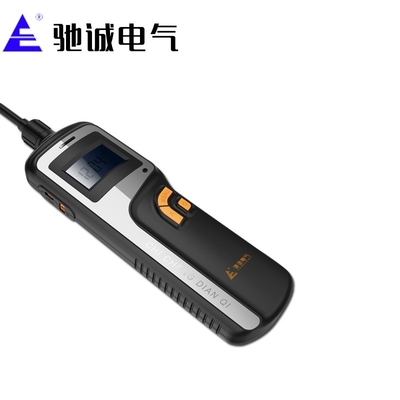

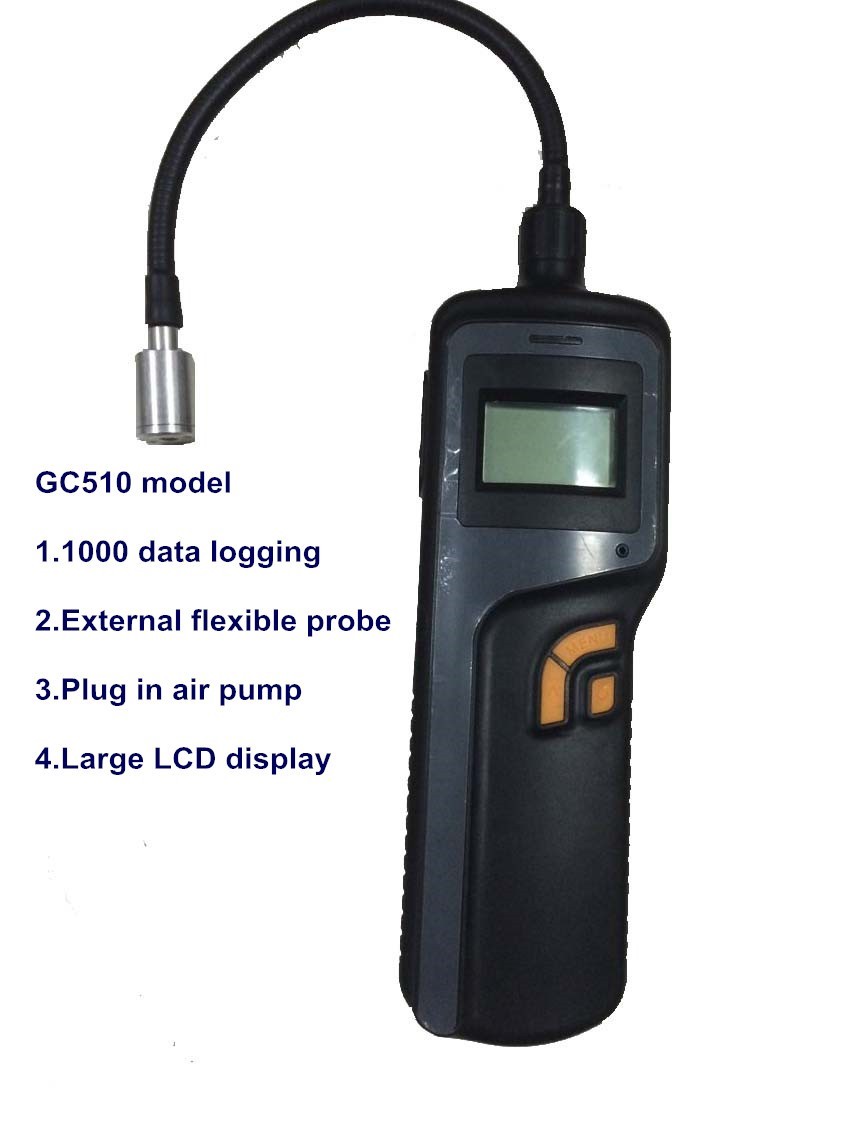

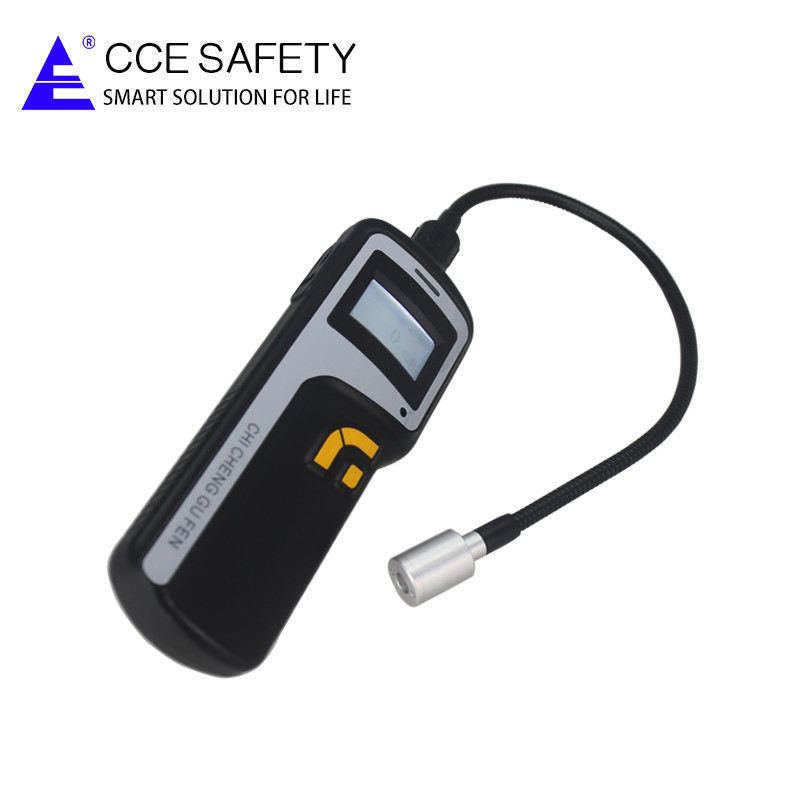

Portable methanol gas detector detailed photos
Portable methanol gas detector technical specifications
| Model | GC510 Portable methanol gas detector |
| Gas detection | Single gas(Toxic gas, combustible gas or oxygen) |
| Sensor | Catalytic combustion type, electric chemical sensors (with temperature compensation), the PID sensor |
| Response time | T90<30s |
| Operating temperature | -20℃-50℃ |
| Humidity | 5-90%RH no condensation |
| Display | LCD |
| Alarm | Flicker, three color LED warning lamp, LCD display, 90dB pulse output, vibration |
| Power supply | 7.2V rechargeable Li-ion battery |
| Sampling method | Built-in pump or probe optional |
| Enclosure | Strong, durable and shockproof |
| Calibration | One-click automatic calibration and automatic zero, multi-point calibration can be performed manually. |
| Data logging | 1000 |
| Dimension | 227*71*35mm |
| Weight | 220g |
Our company
1. Basic information: 2. Mold workshop:
Founded in 2004; 3000 square meter factory area;
10 million annual sales volume; 10 production lines;
Factory price; 50 experience R&D engineers;
Delivery on time; ODM & OEM service available;
1-3 year warranty; Strick production flow
Certificates
Portable methanol gas detector packing & delivery
-Packaging:
Carton box or Aluminum box on your requirement
-Fast delivery:
Sample order in stock and 3-7 working days for bulk production.
-Payment:
You can pay for the order via T/T, Western Union, PayPal & Money Gram.
-Shipping:
DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
Main products
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control, etc.;
Home use: household gas detectors, smoke detectors, safety protection instrument, etc.
FAQ
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6.Can you produce according to customers' design?
A: We are factory with our own R&D team. OEM & ODM are available.
7. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
