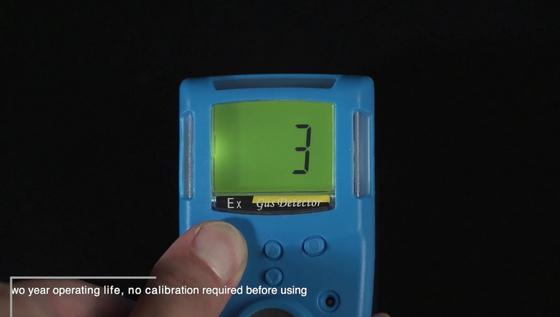

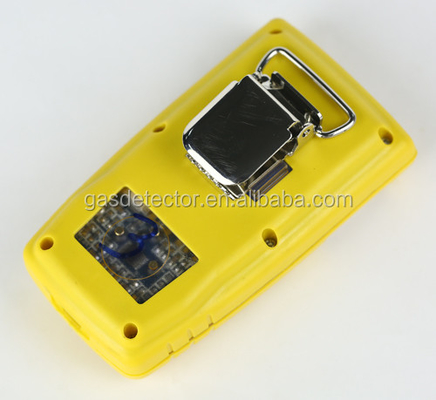

Handheld ethylene gas sensor with 0-100ppm for cooling room fruit storage
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Model Number | GC210 |
| Price | $350.00/Pieces 1-99 Pieces |
| Packaging Details | 1.Carton box <br>2. Alunimum box for choice |
| Supply Ability | 3000 Piece/Pieces per Month |
| Special Features | Tamper Alarm, Waterproof / Weatherproof | Product | Handheld Ethylene Gas Sensor |
|---|---|---|---|
| MOQ | No MOQ | Power Supply | Li-ion Battery |
| Color | Blue | Material | Engineering Material |
| Screen | LCD | Gas | Ethylene |
| Protection Grade | IP66 | Sensor | Electrochemical Sensor |
| Size(L*W*H) | 102*56*26mm | Port | Chinese Main Ports |
0-100ppm all-in-one Ozone O3 gas alarm detector monitor with wall-mounted type installation
QB2000F 0-100ppm all-in-one Ozone O3 gas alarm detector monitor with wall-mounted type installation :
QB2000F is designed to monitor the Ozone gas leakage in the working environment continuously by adopting imported electro-chemical gas sensors. The alarm controller has excellent sensibility, quite good accuracy, linearity and receptivity; Big English LCD displays the real-time concentration of the leakage gas. With 2 relay output, once the concentration exceed the preset alarm point (threshold) it will start the acoustic-optical alarm and it can drive the external equipment like exhaust fans; Through 4-20mA signal output, it can be directly connected into the factory DCS system, through RS4845 signal output, it can be connected with factory’s principle computer.
The detail features:
1. Adopts advanced 16 digit ultra-low power consumption embedded micro controller.
2.128*64 dot matrix ultra-large liquid-crystal display
3. Adjustable H-alarm and L-alarm values
4.Displays the time of first alarm.
5. Real-time display
6. Replaceable sensor module design
7.Automatic calibrating to ensure the detecting accuracy.
8. 200 pieces alarm record can be stored automatically
9.Password management and IR remote function
10.The optional internal battery backup can work continuously for 24 hours (no alarming status)
The detail technical parameter :
1.Detected gas: O3
2. Range: 0-100ppm
3. Resolution: 1ppm
4.Accuracy: +-3% F.S
5. Response time: T90<30S.
6. Display: 128*64 dot matrix ultra-large high bright liquid-crystal English display
7.Alert: high bright LED, 100dB buzzer increases the frequency with the increasing of leakage gas value.
8. Alarm set-points: The low alarm the alarm value can be set by users.
The high alarm the alarm value can be set by users.
9. Signal output: 4-20mA (RS485optional)
10. Relay Output: 2 relay output, AC220V output (AC220V 2A)
11. Working temperature: -20-50℃
12.Working humidity: <=95% RH
13. Power supply: AC220V+-15%, 50HZ
14.The internal battery backup can work continuously for 24 hours (no alarming status) but more than 8 hours for combustible gas. (Optional)
15. Ingress protection: IP65
16.Weight: about 3220g (including the battery)
Henan Chicheng Electric Co., Ltd is a ISO9001-2000 certified high-tech import and export company and also the government permitted gas detecting device manufacture with Measurement of Production License (MC), The explosion-proof certificate (EX) and Fire type certificate (CNAS) approved, we are in the research and marketing a range of portable and fixed gas detection products, industrial process automation control, safety protection and analytical instrument and we are in Zhengzhou Henan China.
We aim at providing customers quality product. Each properly suited to its task, timely service and support.
Sincerely welcome customers worldwide.
