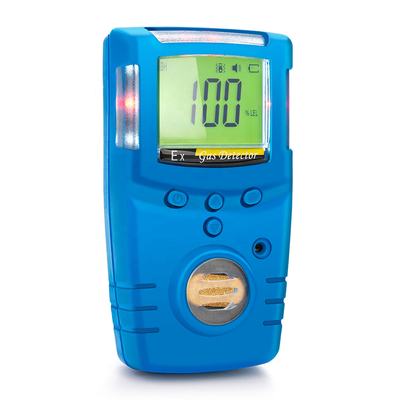

GC210 Superior Hydrogen Gas Leak Detector In Hand-hold Size
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Certification | CE |
| Model Number | GC210 |
| Minimum Order Quantity | 10 Sets |
| Price | $259.00 - $355.00/Sets |
| Packaging Details | Standard package |
| Supply Ability | 5000 Set/Sets per Month |
| Type | NBIOT | Customized Support | OEM, ODM |
|---|---|---|---|
| Usage | Hydrogen Gas Leak Detector | Enslosure Color | Blue And Yellow |
| Alarm Ways | Sound, LED Alarm, Vibration | Battery | Lnbuilt Rechargeable Lithium Battery |
| IP Grade | IP65 | Ex-proof Grade | Ex Ia IIC T4 |
| Product Name | Superior Hydrogen Gas Leak Detector In Hand-hold Size | Port | China Main Ports |
Superior Hydrogen Gas Leak Meter In Hand-hold Size
GC210 detector is a Portable Hydrogen Gas Leak Detector with intrinsic safety ( detector hereinafter ) , which can continuously monitor hydrogen gas(H2) leak density. It is applied for hydrogen gas(H2) leak detection, rescue, and also applied in the surroundings such as underground pipe and mine, to keep the workers safe from invasion of hydrogen gas(H2) to avoid damage to equipment. The detector monitors hydrogen gas(H2) leak density by natural diffusion and adopts imported catalytic combustion sensor, having good sensibility and excellent repeatability. The device has embedded micro control technique and simple signal display and English instruction menu, making the operation easy. Complete function and dependability makes the whole device a leader in the nation. The cover of the detector is refined from high-intensive engineering material (compound elastic rubber), which made the detector touches well, waterproof and explosion-protection.
Application:
The detector monitors hydrogen gas density and is widely used in metallurgy, electric factory, chemical, mines, tunnels, underground pipes etc, effectively prevent toxic accident.
Features:
1.Smart, light, compact, easy to carry
2.Reliable and durable fixed life by original imported sensor, and the sensor and battery is replacible
3.With temperature-compensation.
4.Three ways for alarm: audible alarm(>85db alterable sound alarm),visual alarm(wide-angled red and blue LED flash and visual from a distance), and vibration(various frequency alarm indicates different alarm grades in the noisy surroundings)
5. IP66 design for water- dust proof
6. Low, high alarm limit, TWA and STEL are adjustable.
7. Advanced self-test of complete functions automatically when switched on
8.Heartbeat detecting and with single lithium battery for 2 years normal work.
Range: 0-100%LEL
Gas Detected: ethyne gas(c2h2)
Resolution: 1%LEL
Response time: T90<30s
Sensor: Replacible temperature-compensated catalytic combustion sensor
Working Surroundings:-30~ +50 degree. Humidity: < 95%RH non-condensing
Alarm indication: two grades sound, light and vibration alarm.
AF Indication: > 85dB the higher of buzz frequency, higher the gas concentration is.
Battery: DC3.6V 1200mAh single lithium battery
Working period: about 8hours for Combustible gas and about 100hours for toxic gas and oxygen
IP Grade:IP66
Explosive Grade: Ex ia IIC T4.
Size: 96mm*50mm*22mm
Net: 120g
Established in 2004, Henan Chicheng Electronics Co.,Ltd is speclized in the R&D, manufacture, marketing of gas detector device in China, we can always supply you professional technical support and solutions.
With ISO9001-2000 Certified, Chicheng products are mainly divided into household gas alarm, portable single/multi gas detector, industrial fixed gas detecting transmitter, etc.
Henan Chicheng has a mission to offer proper device and excellent all-round services to customers from automotive production plants, petrochemical, gas, pharmaceutical and metallurgical industries.
Sincerely welcome customers worldwide. OEM and ODM welcome !
