GC210 Sewer Entry portable CH4 single gas detector with pump
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Certification | CE |
| Model Number | GC210 |
| Price | $140.00 - $220.00/Sets |
| Packaging Details | Size of packaging carton box is 19*13*8cm. Net weight is 0.6kg/pc. Gross weight is 1.0kg/pc. <br>Size of packaging aluminum box is 22*15*9cm. Net weight is 0.76kg/pc. Gross weight is 1.5kg/pc. |
| Supply Ability | 1000 Set/Sets per Week |
| Customized Support | OEM, ODM | Gas | Combustible Gas, Toxic Gas, Oxygen |
|---|---|---|---|
| Sensor | Catalytic Combustion Or Electrochemical Or Infrared Sensor | Response Time | T90<30s |
| Battery | DC3.6V Li-ion Battery 1200mAh | Charging Time | 4h~6h |
| Humidity | <95% RH No-condensation | Operating Temperature | -30 ~ + 50 Degree |
| IP Grade | IP66 | Dimension | 102*56*26mm |
| Weight | About 120g (including Battery) | Port | Tianjin, Qingdao, Shanghai, Shenzhen, HK Etc. |

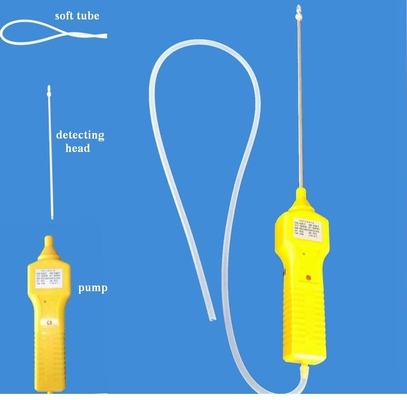

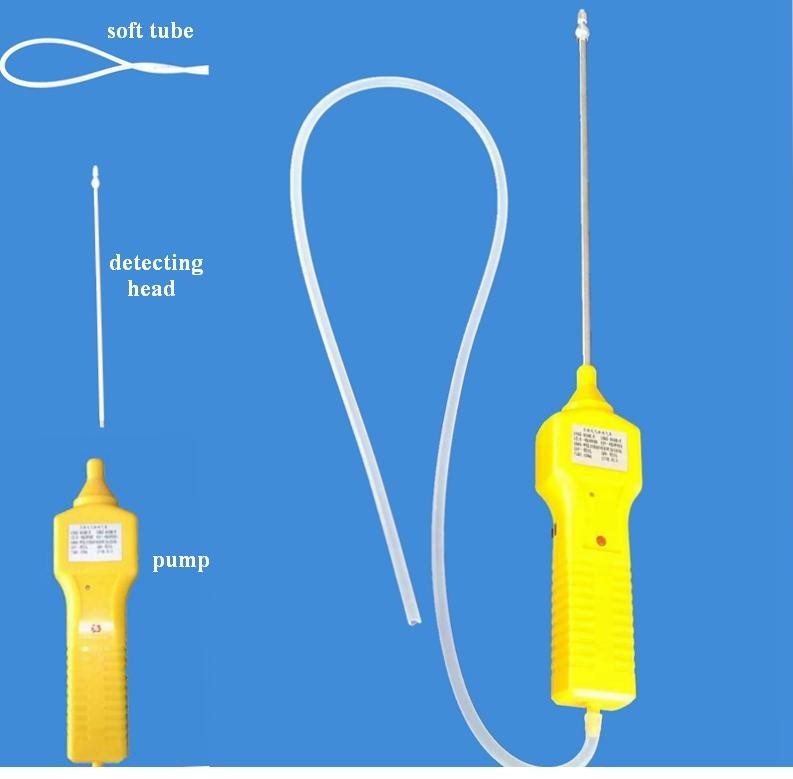

Sewer Entry portable CH4 single gas detector with pump
Product Description
GC210
GC210 detector is a portable Gas Detector with intrinsic safety, which can continuously monitor gas leak density,is widely used in metallurgy, electric factory, chemical, mines, tunnels, underground pipes etc, effectively prevent toxic accident.
The detector monitors gas leak density by natural diffusion and adopts imported PID sensor, having good sensibility and excellent repeat ability.
The device has embedded micro control technique and simple signal display and English instruction menu, making the operation easy. Complete function and dependability makes the whole device a leader in the nation.
The cover of the detector is refined from high-intensive engineering material (compound elastic rubber), which made the detector touches well, waterproof and explosion-protection.
Technical Specification
Range: 0-1000 ppm (as client demand)
Resolution: 0.01/0.1/1ppm (as you required)
Response time: T90<30s
Sensor: Replacible temperature-compensated electric-chemical sensor
Working Surroundings: -30~ +50 degree. Humidity: < 95%RH non-condensing
Alarm indication: two grades sound, light and vibration alarm.
AF Indication: > 85dB the higher of buzz frequency, higher the gas concentration is.
Battery: DC3.6V 1200mAh single lithium battery
Working period: about 8 hours for Combustible gas and about 100hours for toxic gas and oxygen
IP Grade: IP66
Explosive Grade: Ex ia IIC T4.
Size: 96mm*50mm*22mm
Net: 120g

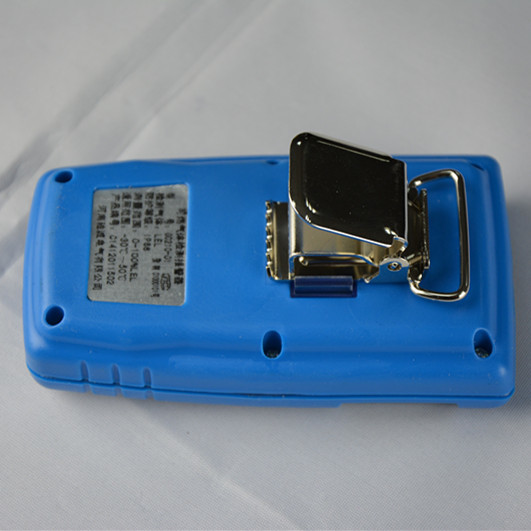

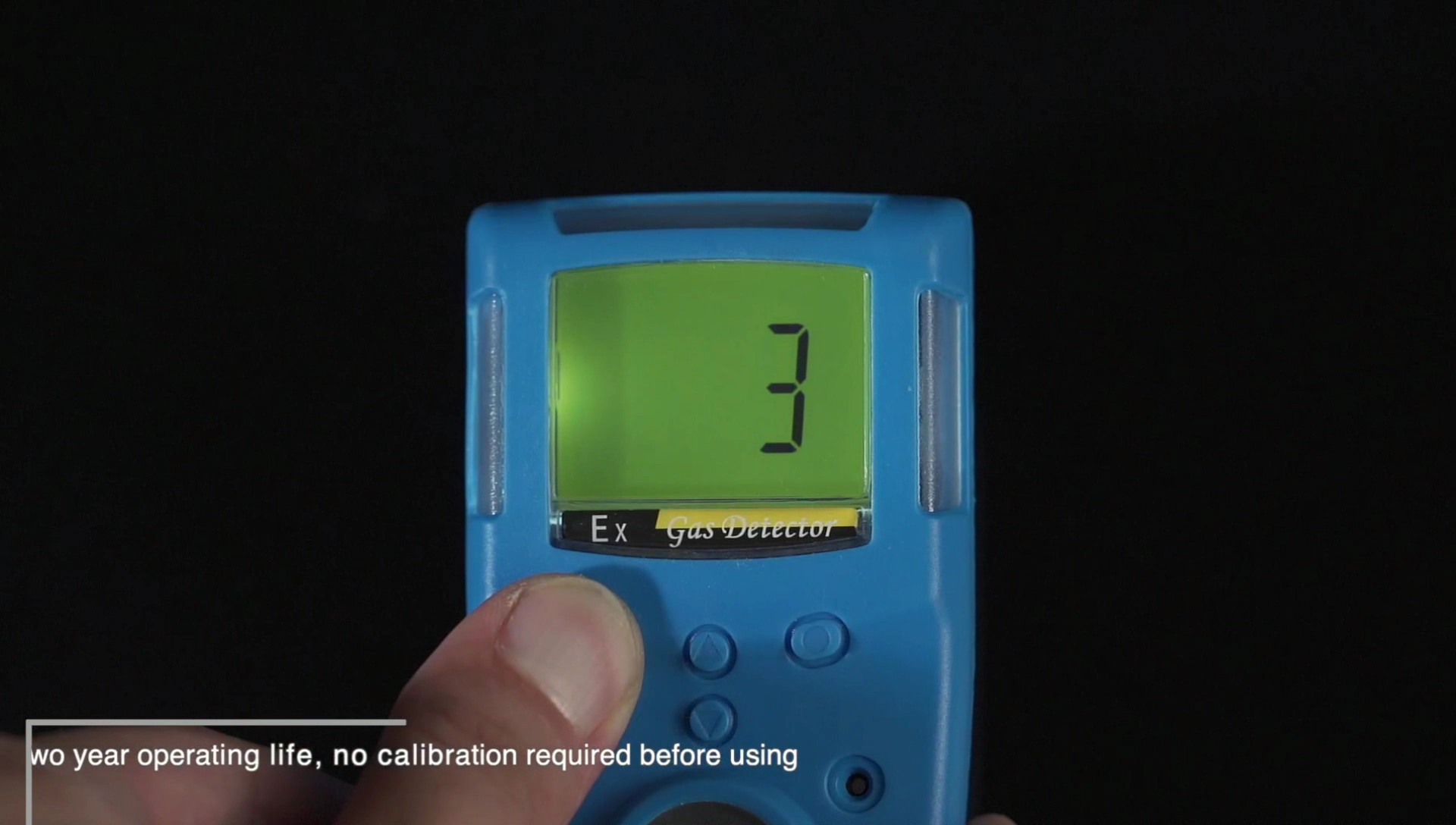

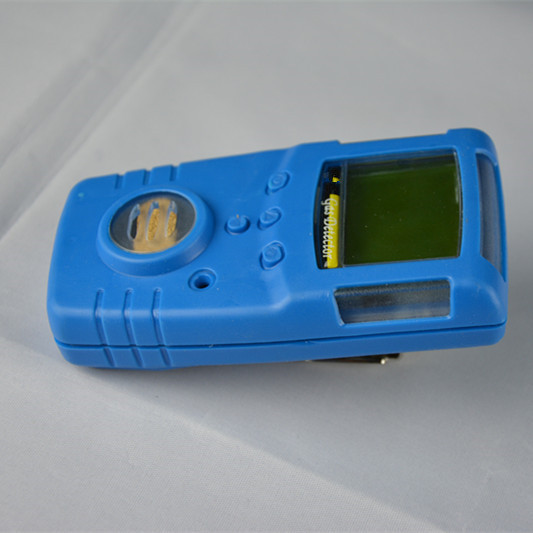

Detailed Image
Company Introduction
More than 10 years industrial experience
ODM & OEM service available;
1-3 year warranty;
3000 square meter factory area;
10 production lines;
50 experience R&D engineers;
Products Overview
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.

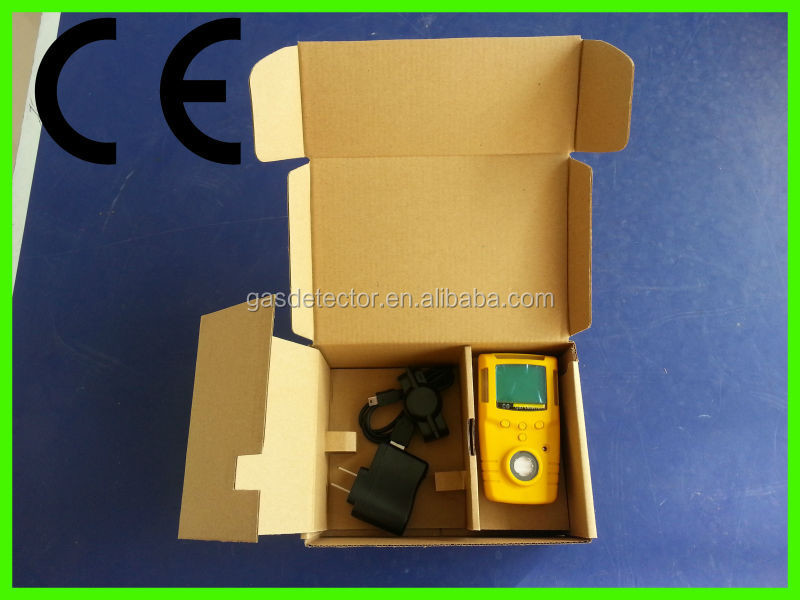

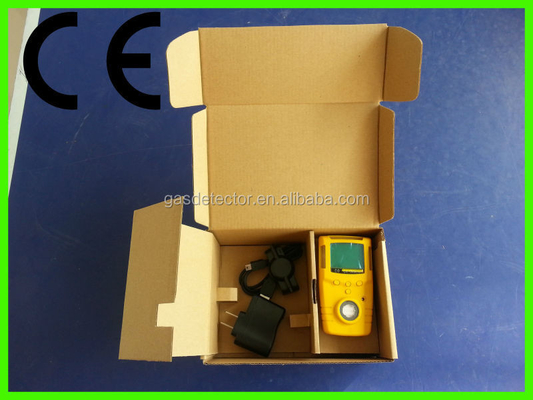

Packing & Delivery

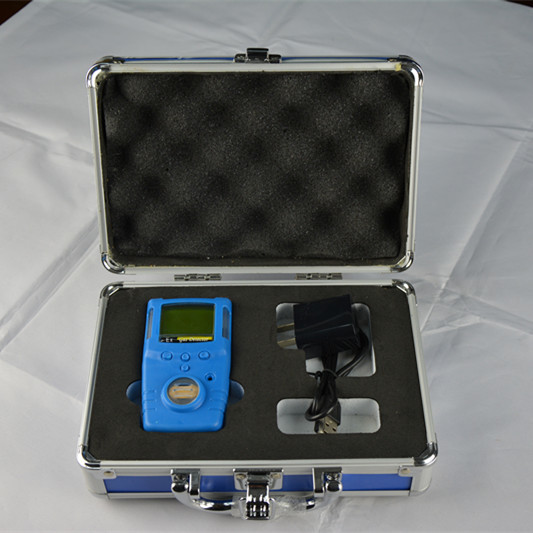

Packaging: Carton box or Aluminum box on your requirement
Delivery: Sample order in stock and 3-7 working days for bulk production.
Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
FAQ
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
d. Your other ideas about gas detection tools, we can help you design and put them into production.
e. Different language versions, such as English, Russian, Chinese, etc. according to customers requirement.
—————————————————————————————————————————————————————————
