Handheld Gas Detector Portable SO2 Gas Meter
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Certification | CE |
| Model Number | GC210 |
| Price | $240.00 - $310.00/Sets |

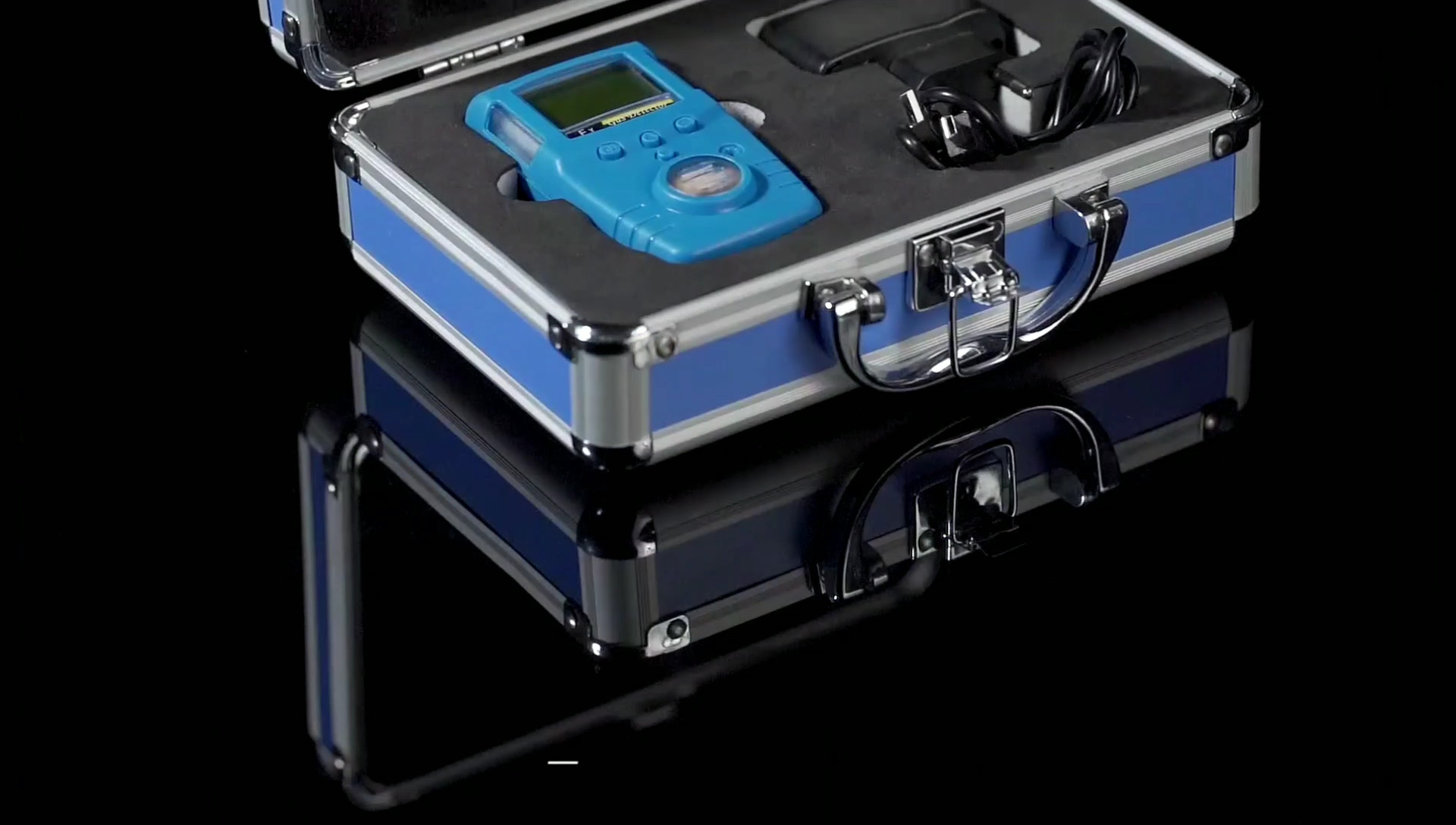

| Packaging Details | Size of packaging carton box is 19*13*8cm. Net weight is 0.6kg/pc. Gross weight is 1.0kg/pc. <br>Size of packaging aluminum box is 22*15*9cm. Net weight is 0.76kg/pc. Gross weight is 1.5kg/pc. |
| Supply Ability | 1000 Set/Sets per Week |
| Customized Support | OEM, ODM | Gas | Combustible Gas, Toxic Gas, Oxygen |
|---|---|---|---|
| Sensor | Catalytic Combustion Or Electrochemical Or Infrared Sensor | Response Time | T90<30s |
| Battery | DC3.6V Li-ion Battery 1200mAh | Charging Time | 4h~6h |
| Humidity | <95% RH No-condensation | Operating Temperature | -30 ~ + 50 Degree |
| IP Grade | IP66 | Dimension | 102*56*26mm |
| Weight | About 120g (including Battery) | Port | Tianjin, Qingdao, Shanghai, Shenzhen, HK Etc. |
Handheld Gas Detector Portable SO2 Gas Meter

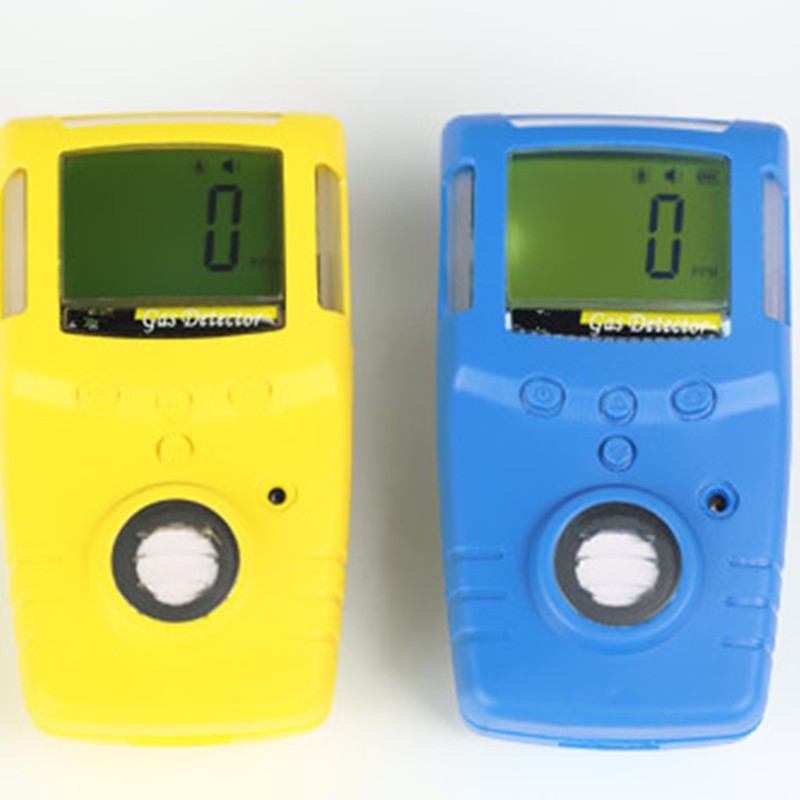

GC210 detector is a Handheld Gas Detector Portable SO2 Gas Meter (detector hereinafter), which can continuously monitor combustible gas (LPG) or toxic gas leak density. It is applied for combustible gas or toxic gas leak detection, rescue, and also applied in the surroundings such as underground pipe and mine, to keep the workers safe from invasion of combustible gas to avoid damage to equipment. This analyzer detectes combustible gas (LPG) or toxic gas leak density by natural diffusion and adopts imported catalytic combustion sensor, having good sensibility and excellent repeatability. The detector has embedded micro control technique and simple signal display and English instruction menu, making the operation easy. Complete function and dependability makes the whole device a leader in the nation. The cover of the detector is refined from high-intensive engineering material (compound elastic rubber), which made the detector touches well, waterproof and explosion-protection.
Application: The detector monitors combustible gas LPG density and is widely used in metallurgy, electric factory, chemical, mines, tunnels, underground pipes etc, effectively prevent toxic accident.
Features:
1. Smart, light, compact, easy to carry
2. Reliable and durable fixed life by original imported sensor, and the battery is rechargeable
3. With temperature-compensation
4. Three ways for alarm: audible alarm (>85db alterable sound alarm), visual alarm (wide-angled red and blue LED flash and visual from a distance), and vibration (various frequency alarm indicates different alarm grades in the noisy surroundings)
5. IP66 design for water- dust proof
6. Low, high alarm limit, TWA and STEL are adjustable
7. Advanced self-test of complete functions automatically when switched on
8. Heartbeat detecting and with single lithium battery for 2 years normal work
Specifications:
| Model | GC210 |
| Detect gas | Single gas (Combustible gas, toxic gas, oxygen) |
| Sensor | Replaceable temperature-compensated catalytic combustion sensor or electrochemical sensor or infrared sensor |
| Accuracy | 3% F.S |
| Response time | T90<30s |
| Operating temperature | -30 ~ + 50 degree |
| Humidity | <95% RH non-condensing |
| Voltage | DC3.6V Li-ion battery 1200mAh |
| Charging time | 4h~6h |
| IP grade | IP66 |
| Explosive grade | Ex ia IIC T4 |
| Weight | About 120g (including battery) |
| Dimension | 102 mm×56mm×26mm |
| Duration of operation | Flammable gas < 8 (non-stopped); toxic gas < 300h (non-stopped) |
| Indication | Large STN LCD indicates real time and system state |
| Alarm indication | Wide-angled light emitting diode, 85db buzz (the frequency of buzz depends the density), vibrating |
| Fault indication | Indications of zero point drift and sensor failure |
Packaging & shipping:
Size of packaging carton box is 19*13*8cm. Net weight is 0.6kg/pc. Gross weight is 1.0kg/pc.
Size of packaging aluminum box is 22*15*9cm. Net weight is 0.76kg/pc. Gross weight is 1.5kg/pc.
-Fast delivery:
Sample order in stock and 3-7 working days for bulk production.
-Payment:
You can pay for the order via T/T, Western Union, PayPal & Money Gram.
-Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You also can choose your own shipping forwarder.
Our service:
a. All products will have been strictly Quality Checked before packaging.
b. All products will be well packaged before shipping.
c. All the similar products have one years warranty. The calibration within one year is FOC with the fright cost charged. And we promise the products will be free from maintenance within warranty period.
