GC310 Handheld four gas measuring instrument for carbon monoxide,oxygen,methane,hydrogen sulfide
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Model Number | GC310 |
| Price | $270.00 - $350.00/Units |
| Supply Ability | 5000 Unit/Units per Week |
| Type | Multi Gas Detector | Product Name | Four Gas Measuring Instrument |
|---|---|---|---|

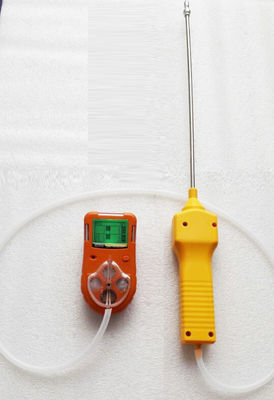

| Sampling Method | Diffusion,pump | IP Grade | IP65 |
| Alarm Type | Visual,audible,vibrating | Protection Grade | Ex Ib IIC T3 |
| Power Supply | DC3.6V | Dimension | 126 X 66 X 32mm |
| Sensitivity | 1ppm | T90 | <30S |
| Weight | 220g |
GC310 handheld four gas measuring instrument for carbon monoxide,oxygen,methane,hydrogen sulfide
Four gas measuring instrument product description
GC310 is a flexible portable gas detector for multi-gases(up to 4 gases) leak detection. It can be set with original CITY catalytic combustion sensor for combustible gas, while original electro-chemical sensors for toxic gases and oxygen. The normal gases detected are CO, H2S, O2, LEL(CH4O)while it can be set to monitor other four gases. GC310 has large LCD screen and two instant alarms with audio/visual and vibratory indicators, making it a favorite indicator for operators working in demanding industrial environments.
Four gas measuring instrument product features:
- Compact, small and lightweight design
- wo instant alarms with audio/visual and vibratory indicators
- Large easy to read display of emblems, instantaneous value, peak value, TWA and STEL.
- Self test function: Self-testing upon start up or need for display, battery, sensor and alarm
- Warning Indicator: regular flashing light and audible alarm
- Up to 4 gases design
- English operation interface and English software
Four gas measuring instrument applications:
- STEL and TWA monitoring;
- Atmosphere monitoring;
- Monitoring for cleanliness of environment;
- Petroleum and chemical plant;
- Entering of sealing space
- Quick respond for dangerous substance/ chemical weapon
- Industrial paints;
- Leakage detecting;
- IAQ monitoring of indoor air quality;
- Soil pollution monitoring
Four gas measuring instrument technical specifications:
| Range | H2S:0-100ppm CO:0-999ppm, O2:0-30%VOL, Combustible gas(CH4O):0-100%LEL VOC:0.1-100/1-1000ppm |
| Calibration | Automatical calibration and zero |
| Sensor | Catalytic combustion type, electrochemical sensor (with temperature compensation), PID sensor |
| Responding | T90 < 30s |
| Alarms | Flashing wide-angled LED alarm light and LCD reading; 90dB impulse output |
| Display | LCD display of gas reading and condition, display TWA and peak value when needed |
| Ambient Environment | -20—50°C,5—90%RH(no condensation) |
| Power Supply | 3.6V Li-ion chargeable battery can work 200 hours |
| Enclosure | compact , durable ruggedised ABS shell |
| Size & Weight | 126×66×32(mm),220g |
| Explosion Grade | EX ibⅡCT3 |

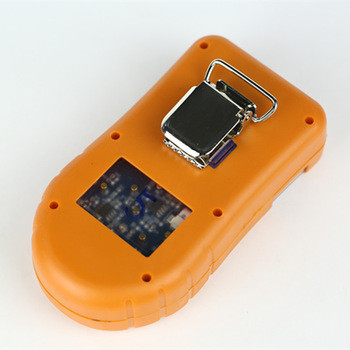

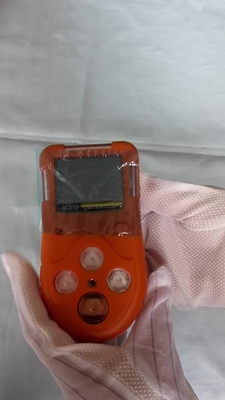

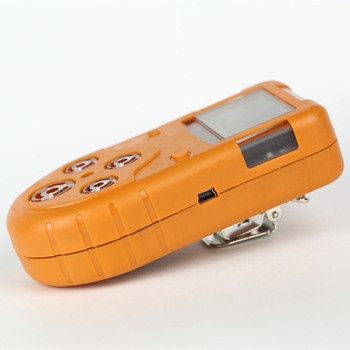

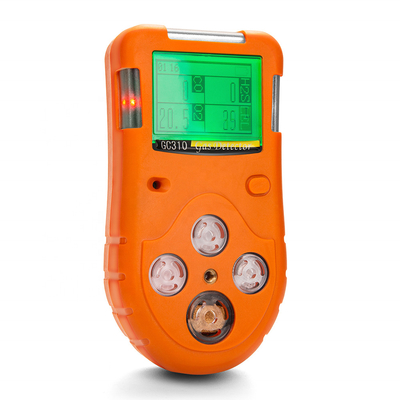

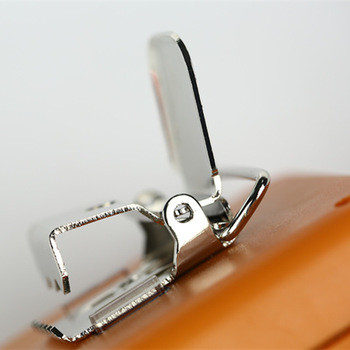

Four gas measuring instrument product details:
Company introduction
More than 10 years industrial experience
ODM & OEM service
1-3 year warranty
3000 square meter factory area
10 production lines
50 experience R&D engineers
Product overview of our company
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.
Four gas measuring instrument Packing and Delivery:

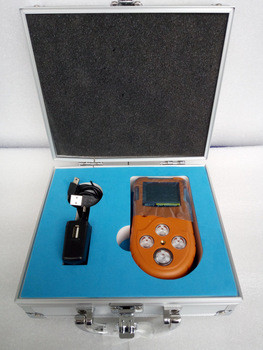

Packaging: Carton box or Aluminum box on your requirement
Delivery: Sample order in stock and 3-7 working days for bulk production.
Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
