GC210 Handheld Ammonia NH3 Toxic Gas Leak Detector
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Certification | CE |
| Model Number | GC210 |
| Price | $240.00 - $320.00/Units |
| Packaging Details | cartons,aluminium alloy |
| Supply Ability | 5000 Unit/Units per Month |
| Type | Portable Gas Detector | Customized Support | OEM, ODM |
|---|---|---|---|
| Sampling Method | Diffusion | IP Grade | IP66 |
| Alarm Type | Visual,audible,vibration | Detecting Gas | Ammonia NH3 |
| Power Supply | DC3.6V, 1200mAh | Protection Grade | Ex Ia IIC T4 |
| Dimension | 102X56X26mm | Sensitivity | 1ppm |
| Product Name | Handheld Ammonia NH3 Toxic Gas Leak Detector | Weight | 120g |
| Port | Chinese Main Port |

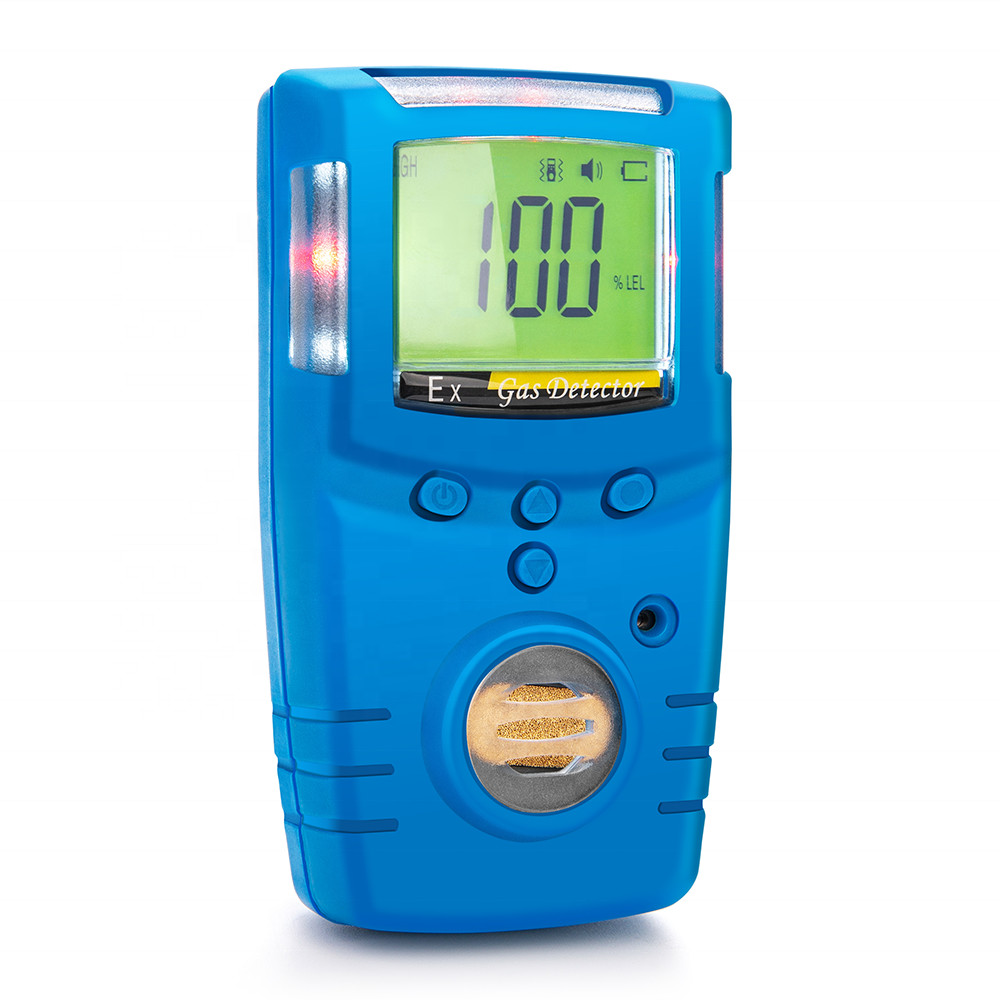

GC210 Handheld Ammonia NH3 Toxic Gas Leak Detector
GC210 Handheld Ammonia NH3 Toxic Gas Leak Detector adopted catalytic combustion or electrochemical sensor to measure the concentration of combustible and toxic gas. it can alarms by audible, visual and vibration when the measured gas reaches the preset value to ensure the health and safety of people.
Features:
♦ self test power on
♦ STN LCD display, humanized english interface.
♦ two alarm levels audible, visual and vibration
♦ lower voltage indication
♦ self calibration
♦ Real-time clock display
Technical specification:
| Model | GC210 Handheld Ammonia NH3 Toxic Gas Leak Detector |
| Gas | ammonia NH3 |
| Accuracy | 3% F.S. |
| Response | T90<30s |
| working temperature | -30 °C~+50 °C |
| Humidity | <95%RH non-condensation |
| Voltage | DC3.7V rechargeable lithium battery 1200mAh |
| Charging time | 4h~6h |
| Protection grade | IP66 |
| Weight | 120g |
| Dimension | 102mm x 56mm x 26mm |
| Battery life | typical use 6 hours for combustible gas and 300 hours for toxic gas from fully charged |
| Display | LCD |
| Explosive-proff grade | Ex ia IIC T4 |
| Sensitivity | 1ppm |
Gases measured:
| gas | range | resolution | response time | sensor life |
| Combustible | 0-100% LEL | 1% LEL | <30S | 3-5 years |
| O2 | 0-30% VOL | 0.1% VOL | <30S | 1-2 years |
| CO | 0-1000 PPM | 1 PPM | <30S | 2-3 years |
| H2S | 0-100 PPM | 1 PPM | <30S | 2-3 years |
| H2 | 0-1000 PPM | 1 PPM | <30S | 2-3 years |
| CL2 | 0-20 PPM | 0.1 PPM | <30S | 2-3 years |
| NH3 | 0-100 PPM | 1 PPM | <30S | 2-3 years |
| SO2 | 0-20 PPM | 0.1 PPM | <30S | 2-3 years |
| NO | 0-250 PPM | 1 PPM | <30S | 2-3 years |
| NO2 | 0-20 PPM | 0.1 PPM | <30S | 2-3 years |
| HCN | 0-20 PPM | 0.1 PPM | <30S | 2-3 years |
| ETO | 0-100 PPM | 1 PPM | <30S | 2-3 years |
| HCL | 0-20 PPM | 0.1 PPM | <30S | 2-3 years |
| CH2=CHCN | 0-100 PPM | 1 PPM | <30S | 2-3 years |
| O3 | 0-100 PPM | 1 PPM | <30S | 2-3 years |
| CLO2 | 0-20 PPM | 0.1 PPM | <30S | 2-3 years |
| CO2 | 0-10000 PPM | 1 PPM | <30S | 3-5 years |
1.Carton box 19*13*8cm, G.W.: 0.6kg
2. Aluminum box 22*15*9cm G.W: 1kg
3. Shipping by: DHL, TNT, FEDEX, EMS and BY SEA if necessary

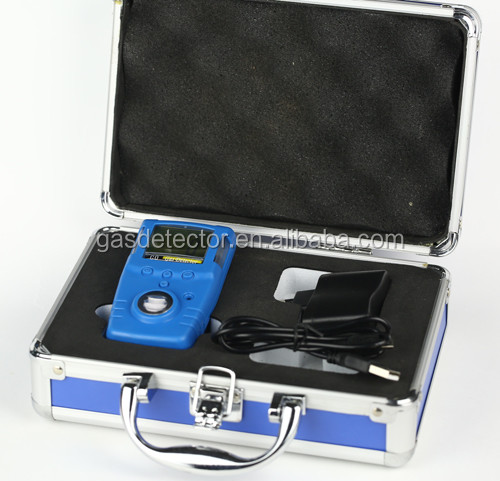

packing of Handheld Ammonia NH3 Toxic Gas Leak Detector : carton
1, OEM
2, Development and design according to customers requirements.
3, Delivery on time.
4, 1 year warranty

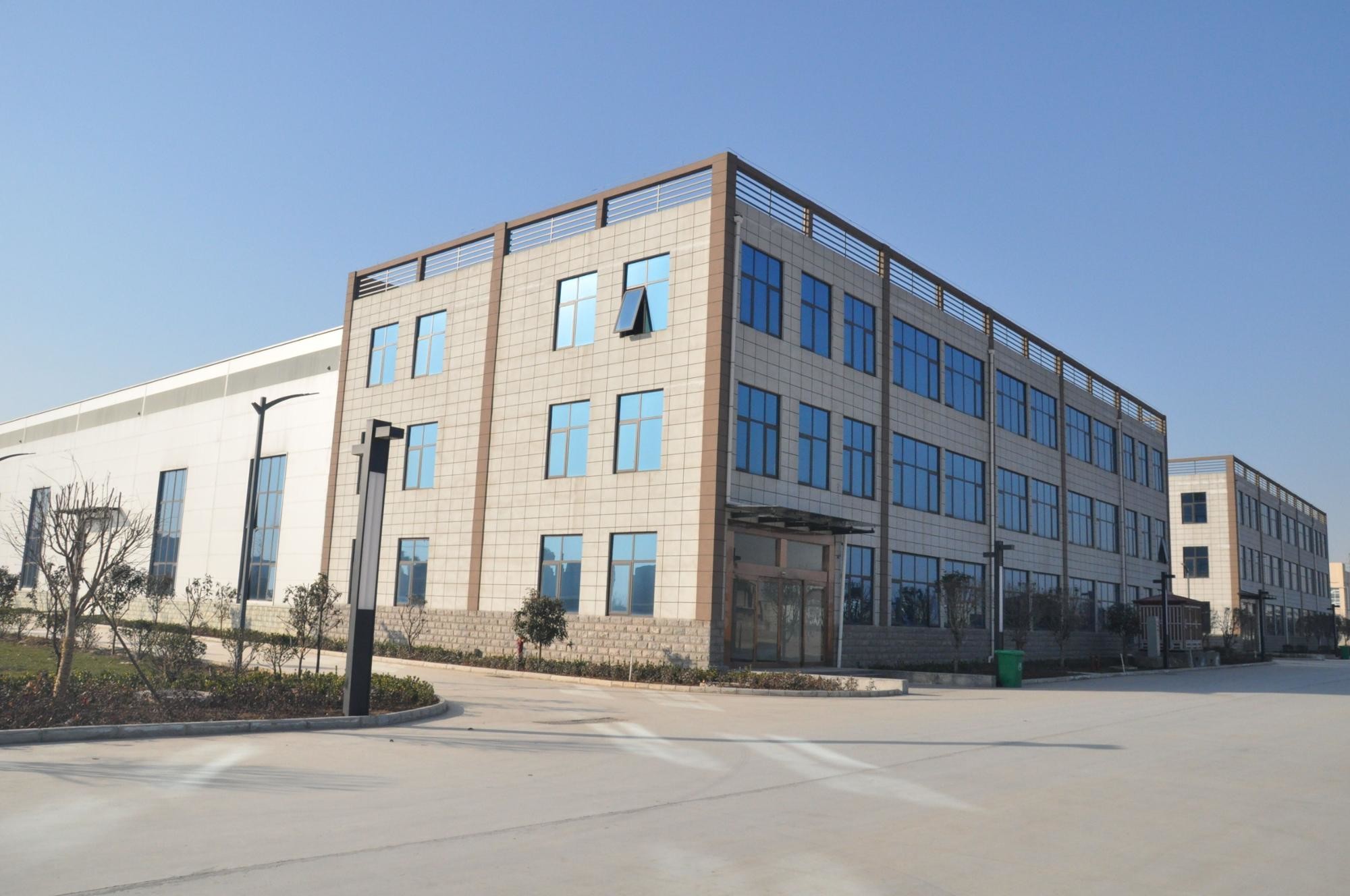

1, Founded in 2004, located in zhengzhou, henan province, central China.
2, R&D team: 50 engineers
3, Annual sales: 25000 sets portable / fixed gas detectors and controll pannels (2015)
4, ISO9001-2000, CE
5, Main products: portable and fixed gas detectors, multi channel gas detection controllers.
1, Payment terms: T/T, western union, paypal, L/C, money gram
2, Delivery: 2-3 working days
3, Calibration: one year, you can calibrate it in your country or send the sensor back to us.
