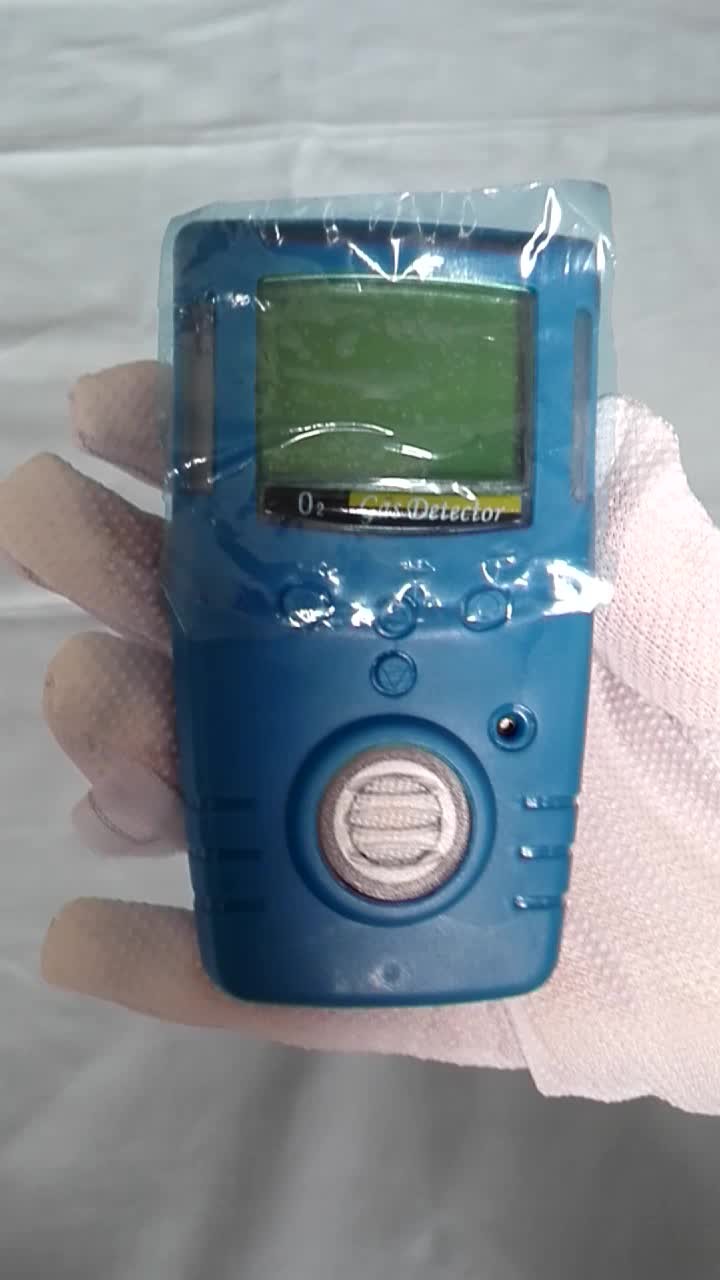

GC210 Portable measuring room oxygen level meter
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Model Number | GC210 |
| Price | $180.00/Units 1-9 Units |
| Packaging Details | carton box |
| Sensor | Electrochemical Or Infrared Sensor | Response Time | T90<30s |
|---|---|---|---|
| Operating Temperature | -30 ~ + 50 Degree | Battery | DC3.6V Li-ion Battery 1200mAh |
| Charging Time | 4h~6h | IP Grade | IP66 |
| Humidity | <95% RH No-condensation | Dimension | 102*56*26mm |
| Product Name | Portable Measuring Room Oxygen Level Meter | Weight | About 120g (including Battery) |
GC210 Portable measuring room oxygen level meter
Portable oxygen level meter product introduction
GC210 detector is a portable Gas Detector with intrinsic safety, which can continuously monitor gas leak density,is widely used in metallurgy, electric factory, chemical, mines, tunnels, underground pipes etc, effectively prevent toxic accident.
The detector monitors gas leak density by natural diffusion and adopts imported PID sensor, having good sensibility and excellent repeat ability.
The device has embedded micro control technique and simple signal display and English instruction menu, making the operation easy. Complete function and dependability makes the whole device a leader in the nation.
The cover of the detector is refined from high-intensive engineering material (compound elastic rubber), which made the detector touches well, waterproof and explosion-protection.
Portable oxygen level meter product technical specifications
Range: 0-30%vol
Resolution: 0.1%vol (as you required)
Response time: T90<30s
Sensor: Replacible temperature-compensated electric-chemical sensor
Working Surroundings: -30~ +50 degree. Humidity: < 95%RH non-condensing
Alarm indication: two grades sound, light and vibration alarm.
AF Indication: > 85dB the higher of buzz frequency, higher the gas concentration is.
Battery: DC3.6V 1200mAh single lithium battery
Working period: about 8 hours for Combustible gas and about 100hours for toxic gas and oxygen
IP Grade: IP66
Explosive Grade: Ex ia IIC T4.
Size: 96mm*50mm*22mm
Net: 120g
Portable oxygen level meter detailed photos
company introduction
Portable oxygen level meter product overview
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.
FAQ:
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
d. Your other ideas about gas detection tools, we can help you design and put them into production.
e. Different language versions, such as English, Russian, Chinese, etc. according to customers requirement.
