GC610 Portable multi gas detector compound 5 gases detector by factory with OEM ODM support
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Model Number | GC610 |
| Minimum Order Quantity | 2 Units |
| Price | $780.00 - $1,200.00/Units |
| Packaging Details | cartons, aluminium alloy |
| Supply Ability | 5000 Unit/Units per Week |
| Type | Multi Gas Detector | Sampling Method | Diffusion,pump |
|---|---|---|---|
| IP Grade | IP67 | Alarm Type | Visual,audible,vibration |
| Protection Grade | Ex Ia IIC T4 Gb | Product Name | Handheld Multi Gas Detector CO,H2S,O2,CH4 |
| Power Supply | DC3.7V | Dimension | 171 X 95 X 43mm |
| Sensitivity | 1ppm | T90 | <30S |
| Weight | 400g | Port | Chinese Main Port |

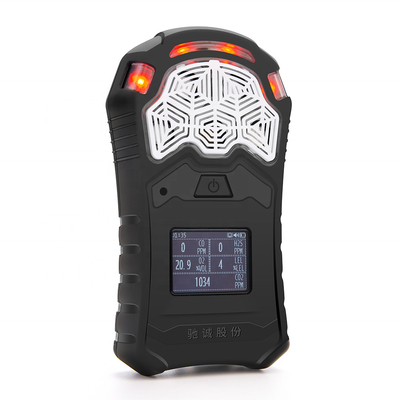

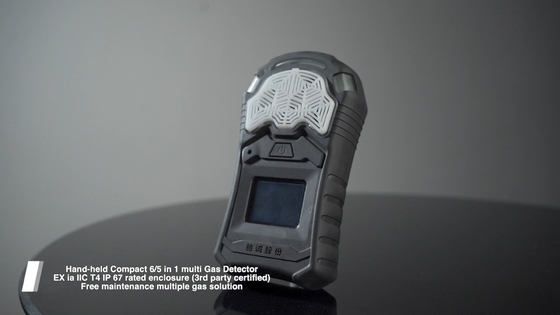

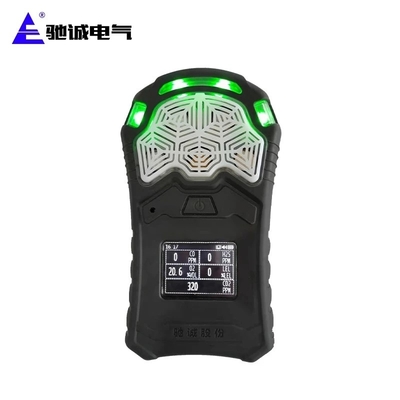

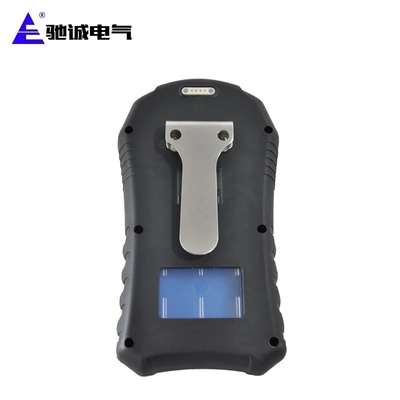

GC610 Portable multi gas detector compound 5 gases detector
Handheld multi gas detector product description
GC610 is a portable multi gas detector for multi-gases(up to 5 gases) leak detection. It can be set with catalytic combustion,electrochemical,PID,Infrared sensor. The normal gases detected are CO2, CO, H2S, O2, LEL(CH4O)while it can be set to monitor other four gases. GC610 has large OLED screen and two instant alarms with audio/visual and vibratory indicators, making it a favorite indicator for operators working in demanding industrial environments.
Handheld multi gas detector product Features:
- OLED display, suitable for working temperature -40°C—70°C
- Modular design
- Large easy to read display of emblems, instantaneous value, peak value, TWA and STEL.
- Self test function: Self-testing upon start up or need for display, battery, sensor and alarm
- Warning Indicator: regular flashing light and audible alarm
- Up to 5 gases design
- Protection grade IP67
Portable multi gas detector product Applications:
- STEL and TWA monitoring;
- Atmosphere monitoring;
- Monitoring for cleanliness of environment;
- Petroleum and chemical plant;
- Entering of sealing space
- Quick respond for dangerous substance/ chemical weapon
- Industrial paints;
- Leakage detecting;
- IAQ monitoring of indoor air quality;
- Soil pollution monitoring
Handheld multi gas detector Technical specifications:
| Range | H2S:0-100ppm CO:0-999ppm, O2:0-30%VOL, Combustible gas(CH4O):0-100%LEL CO2:0-5000ppm,0-20%VOL |
| Calibration | Automatical calibration and zero |
| Sensor | Catalytic combustion type, electrochemical sensor,(with temperature compensation), PID sensor,Infrared |
| Responding | T90 < 30s |
| Alarms | Flashing wide-angled LED alarm light and LCD reading; 90dB impulse output |
| Display | OLED display of gas reading and condition, display TWA and peak value when needed |
| Ambient Environment | -40°C—70°C,5—95%RH(no condensation) |
| Power Supply | 3.7V Li-ion chargeable battery can work 200 hours |
| Enclosure | compact , durable ruggedised ABS shell |
| Size & Weight | 171×95×43(mm),400g |
| Explosion Grade | Ex ia IIC T4 Gb |
Handheld multi gas detector Product details:
Company introduction
More than 10 years industrial experience
ODM & OEM service
1-3 year warranty
3000 square meter factory area

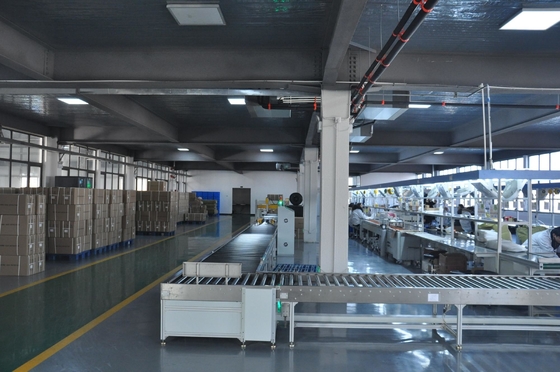

10 production lines
50 experience R&D engineers
International Fair and Visiting customers:
Product overview of our company
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.
Portable Multi Gas Detector Alarm Packing and Delivery:
Packaging: Carton box or Aluminum box on your requirement
Delivery: Sample order in stock and 3-7 working days for bulk production.
Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
FAQ:
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
d. Your other ideas about gas detection tools, we can help you design and put them into production.
e. Different language versions, such as English, Russian, Chinese, etc. according to customers requirement.
7.How does your factory do regarding the quality control?
A: Quality is priority, regarding welding&cutting products. Our factory has passed ISO 9001 with annual audit.
Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.
Besides, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.100% inspection in assembly lines. All controls,
inspections, equipment, fixtures, total production resources and skills are inspected to ensure
they consistently achieve the required quality levels.
8. Will you deliver the right goods as ordered? How can I trust you?
A: .We are a member of Alibaba Trade Assurance which is a new service provided by Alibaba, safeguarding buyer's payment to suppliers to ensure suppliers fulfill their obligations regarding order delivery and product quality. If any different with the contact, customer can get refund from Alibaba.
