Portable Combustible gas (LPG) leak detection monitor sensor
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Certification | CEC |
| Model Number | GC210 |
| Price | $160.00 - $220.00/Pieces |
| Packaging Details | in standard export carton package |
| Supply Ability | 5000 Piece/Pieces per Month |
| Customized Support | OEM, ODM | Enslosure Color | Blue And Yellow |
|---|---|---|---|
| Alarm Ways | Sound, LED Alarm, Vibration | Battery | Inbuilt Rechargeable Lithium Battery |
| IP Grade | IP65 | Ex-proof Grade | Ex Ia IIC T4 |
| Product Name | Portable Combustible Gas (LPG) Leak Detection Monitor Sensor | Port | China Main Ports |
GC210 Portable Combustible gas (LPG) leak detection monitor sensor
Portable LPG leak detector product introduction
GC210 detector is a portable Gas Detector with intrinsic safety, which can continuously monitor gas leak density,is widely used in metallurgy, electric factory, chemical, mines, tunnels, underground pipes etc, effectively prevent toxic accident.
The detector monitors gas leak density by natural diffusion and adopts imported PID sensor, having good sensibility and excellent repeat ability.
The device has embedded micro control technique and simple signal display and English instruction menu, making the operation easy. Complete function and dependability makes the whole device a leader in the nation.
The cover of the detector is refined from high-intensive engineering material (compound elastic rubber), which made the detector touches well, waterproof and explosion-protection.
Portable LPG leak detector product technical specifications
Range: 0-100%LEL
Resolution: 0.1%LEL (as you required)
Response time: T90<30s
Sensor: Replacible temperature-compensated electric-chemical sensor
Working Surroundings: -30~ +50 degree. Humidity: < 95%RH non-condensing
Alarm indication: two grades sound, light and vibration alarm.
AF Indication: > 85dB the higher of buzz frequency, higher the gas concentration is.
Battery: DC3.6V 1200mAh single lithium battery
Working period: about 8 hours for Combustible gas and about 100hours for toxic gas and oxygen
IP Grade: IP66
Explosive Grade: Ex ia IIC T4.
Size: 96mm*50mm*22mm
Net: 120g

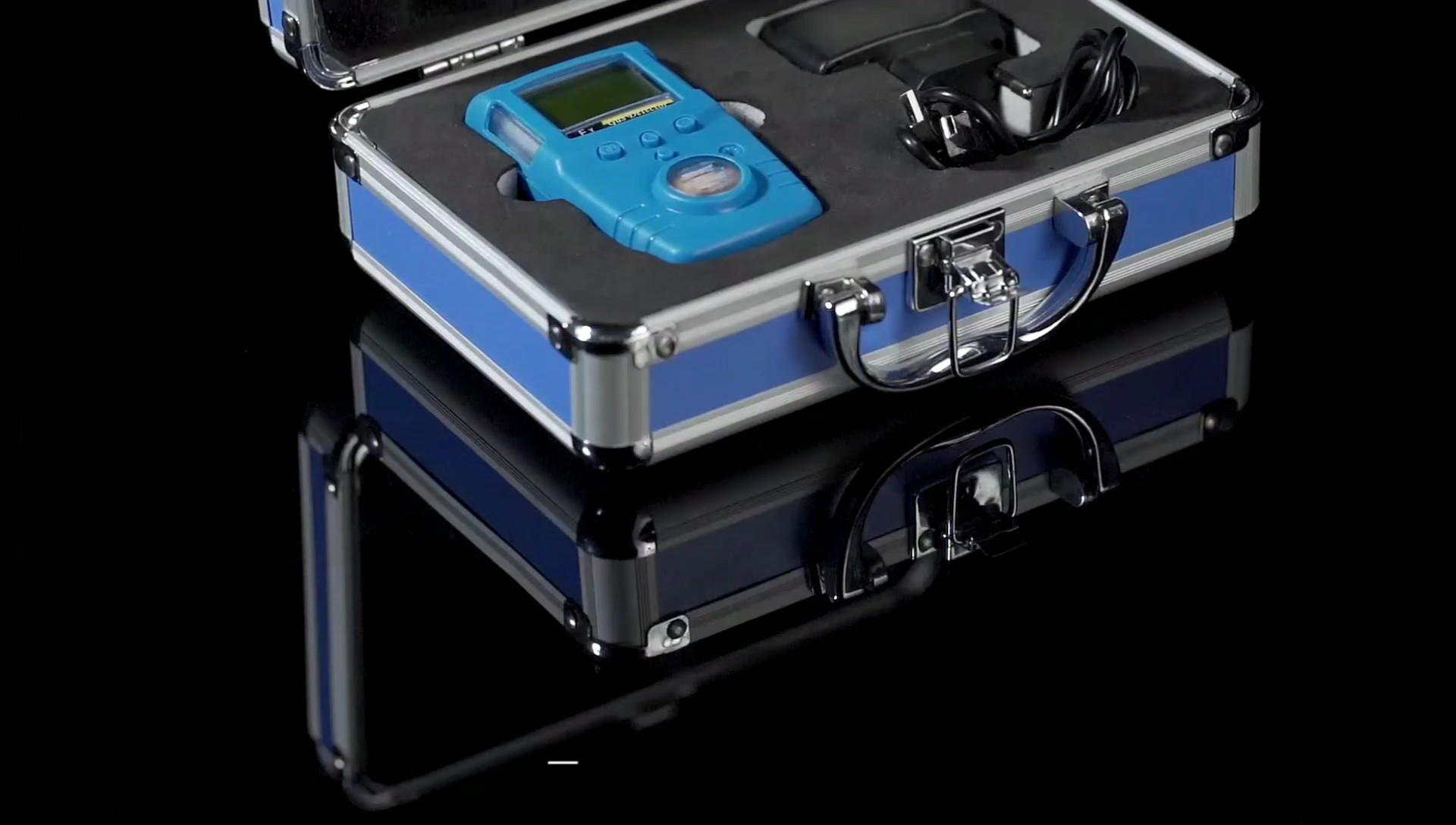

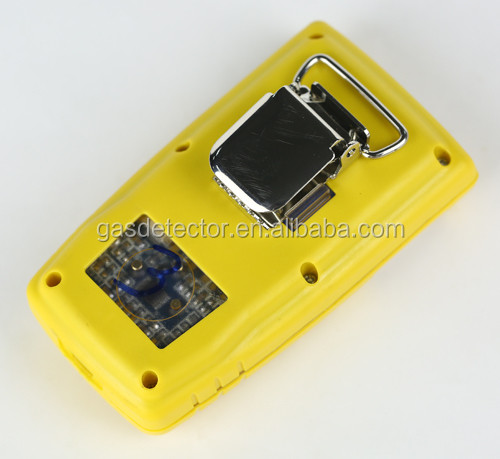

Portable LPG leak detector detailed photos
company introduction
Portable LPG leak detector product overview
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.
