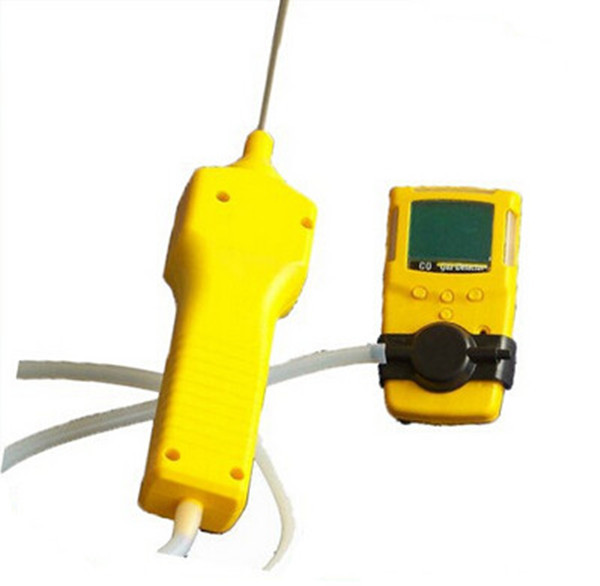

Portable gas detector micro clip oxygen sensor with sampling pump
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Certification | CE |
| Model Number | GC210 |
| Price | $150.00 - $250.00/Sets |
| Supply Ability | 50000 Set/Sets per Month |
| Type | Oxygen Gas Detector Portable | Customized Support | OEM, ODM |
|---|---|---|---|
| Product Name | Portable Gas Detector | Range | 0-30% Vol |
| Usage | Fire | Battery | DC3.6V 1200mAh Lithium-ion Battery |
| Screen | STN LCD | MOQ | 1 |
Portable gas detector micro clip oxygen sensor with sampling pump
GC210-o2 detector is a Portable gas detector micro clip oxygen sensor with sampling pump with intrinsic safety ( detector hereinafter ) , which can continuously monitor oxygen gas(O2) leak density. It is applied for oxygen gas(O2) leak detection, rescue, and also applied in the surroundings such as underground pipe and mine, to keep the workers safe from low oxygen concentration to save lives.. The detector monitors oxygen gas(O2) leak density by natural diffusion and adopts imported electro-chemical sensor, having good sensibility and excellent repeatability. The device has embedded micro control technique and simple signal display and English instruction menu, making the operation easy. Complete function and dependability makes the whole device a leader in the nation. The cover of the detector is refined from high-intensive engineering material (compound elastic rubber), which made the detector touches well, waterproof and explosion-protection.
Application:
The Portable gas detector micro clip oxygen sensor with sampling pump monitors oxygen gas(O2) density and is widely used in metallurgy, electric factory, chemical, mines, tunnels, underground pipes etc, effectively prevent toxic accident.
Features:
1.Smart, light, compact, easy to carry
2.Reliable and durable fixed life by original imported sensor, and the sensor and battery is replacible
3.With temperature-compensation.
4.Three ways for alarm: audible alarm(>85db alterable sound alarm),visual alarm(wide-angled red and blue LED flash and visual from a distance), and vibration(various frequency alarm indicates different alarm grades in the noisy surroundings)
5. IP66 design for water- dust proof
6. Low, high alarm limit, TWA and STEL are adjustable.
7. Advanced self-test of complete functions automatically when switched on
8.Heartbeat detecting and with single lithium battery for 2 years normal work.
Range: 0-30%VOL or 0-25%VOL.
Gas Detected: oxygen gas
Resolution: 0.1%VOL
Response time: T90<30s
Sensor: Replacible temperature-compensated catalytic combustion sensor
Working Surroundings:-30~ +50 degree. Humidity: < 95%RH non-condensing
Alarm indication: two grades sound, light and vibration alarm.
AF Indication: > 85dB the higher of buzz frequency, higher the gas concentration is.
Battery: DC3.6V 1200mAh single lithium battery
Working period: about 8hours for Combustible gas and about 100hours for toxic gas and oxygen
IP Grade:IP66
Explosive Grade: Ex ia IIC T4.
Size: 96mm*50mm*22mm
Net: 120g
