GC310 Portable multi gas analyser of CH4,H2S,O2,CO

  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Henan, China
Brand Name CCE
Certification CE
Model Number GC310
Price $260.00 - $340.00/Units
Packaging Details cartons, aluminium alloy
Supply Ability 5000 Unit/Units per Week
Product Details
Customized Support OEM, ODM Sampling Method Diffusion,pump
IP Grade IP65 Alarm Type Visual,audible,vibration
Detecting Gas H2S,CO,O2,CH4 Power Supply DC3.6V
Protection Grade Ex Ib IIC T3 Dimension 126 X 66 X 32mm
Sensitivity 1ppm T90 <30S
Weight 220g Port Chinese Main Port
Leave a Message
Product Description

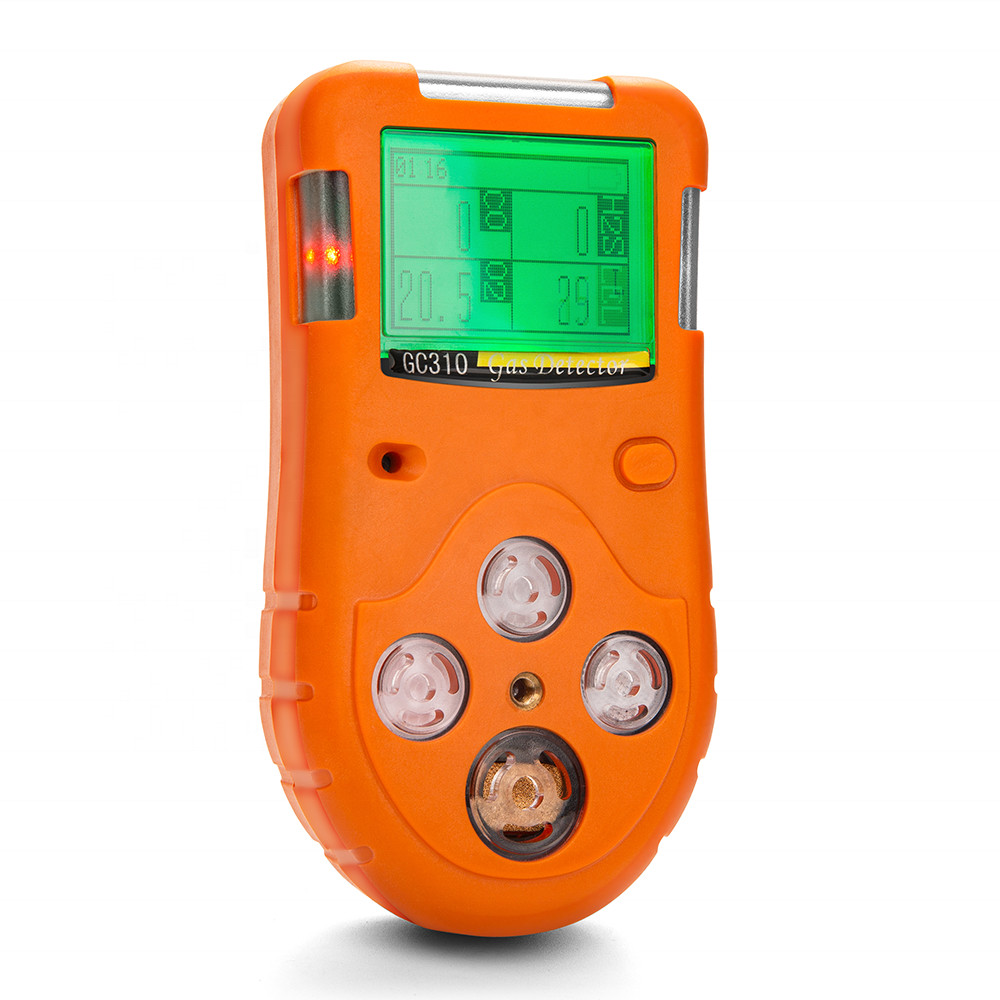

GC310  Portable multi gas analyser of CH4,H2S,O2,CO



GC310 Portable Multigas Detector used to measure H2S,CO,O2 and CH4 gas leak concentration. It adopted original CITY sensor. GC310 has large LCD screen and two alarm levels by audible,visual and vibratory alarms when the gas concentration reaches the preset value to ensure the health and safety of people, you can check the alarm record by computer after install the software which be sent to you accompany with goods.

GC310 Portable multi gas analyser of CH4,H2S,O2,CO 0

Features:



♦ can display the TWA and STEL if necessary

♦ LCD display, humanized english interface.

♦ two alarm levels audible, visual and vibration

♦ lower voltage indication

♦ self calibration

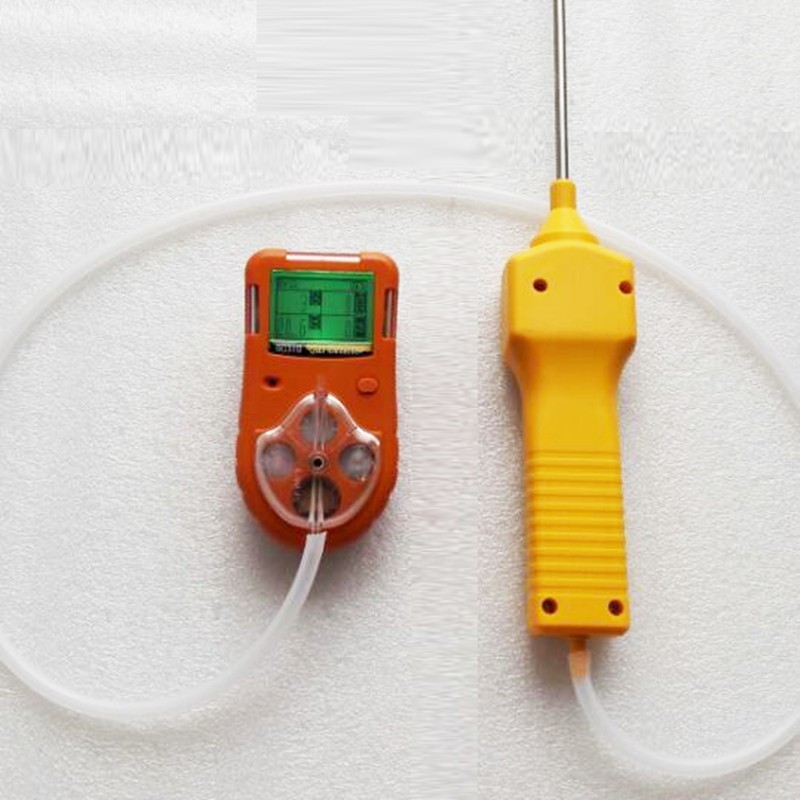

♦ external pump can be used in dangerous and confined space

GC310 Portable multi gas analyser of CH4,H2S,O2,CO 2GC310 Portable multi gas analyser of CH4,H2S,O2,CO 4



Technical specification:

Range

H2S:0-100ppm   CO:0-999ppm,   O2:0-30%VOL,

Combustible gas(CH4):0-100%LEL
Calibration Automatical calibration and zero
Sensor Catalytic combustion type, electrochemical sensor (with temperature compensation), PID
Responding T90 < 30s
Alarms Flashing wide-angled LED alarm light and LCD reading; 90dB impulse output
Display LCD display of gas reading and condition, display TWA and peak value when needed
Ambient Environment -20-50°C, 5-90%RH(no condensation)
Power Supply 3.6V Li-ion chargeable battery can work 200 hours
Enclosure compact , durable ruggedised ABS shell
Size & Weight 126×66×32(mm),220g
Explosion Grade EX ibⅡCT3
 GC310 Portable multi gas analyser of CH4,H2S,O2,CO 6GC310 Portable multi gas analyser of CH4,H2S,O2,CO 8GC310 Portable multi gas analyser of CH4,H2S,O2,CO 10GC310 Portable multi gas analyser of CH4,H2S,O2,CO 4 GC310 Portable multi gas analyser of CH4,H2S,O2,CO 14GC310 Portable multi gas analyser of CH4,H2S,O2,CO 16GC310 Portable multi gas analyser of CH4,H2S,O2,CO 18GC310 Portable multi gas analyser of CH4,H2S,O2,CO 4
Packaging & Shipping

1.Carton box 19*13*8cm,  G.W.:   0.6kg
2. Aluminum box 22*15*9cm G.W: 1kg

3. Shipping by: DHL, TNT, FEDEX, EMS and BY SEA if necessary





packing of   Portable multi gas analyser of CH4,H2S,O2,CO



 GC310 Portable multi gas analyser of CH4,H2S,O2,CO 22GC310 Portable multi gas analyser of CH4,H2S,O2,CO 4

Our Services

 1, OEM

 2, Development and design according to customers requirements.

 3, Delivery on time.

 4, 1 year warranty

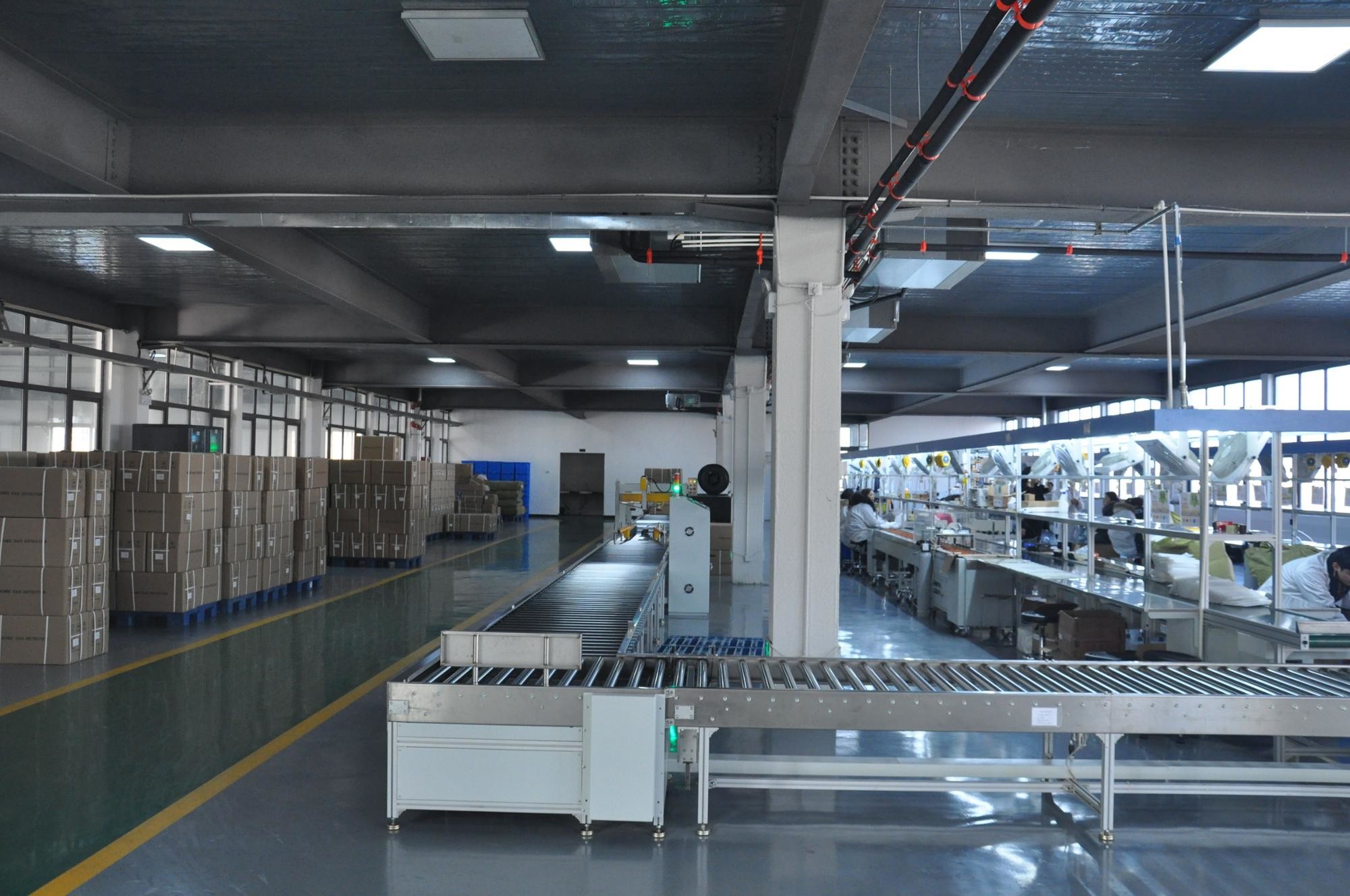

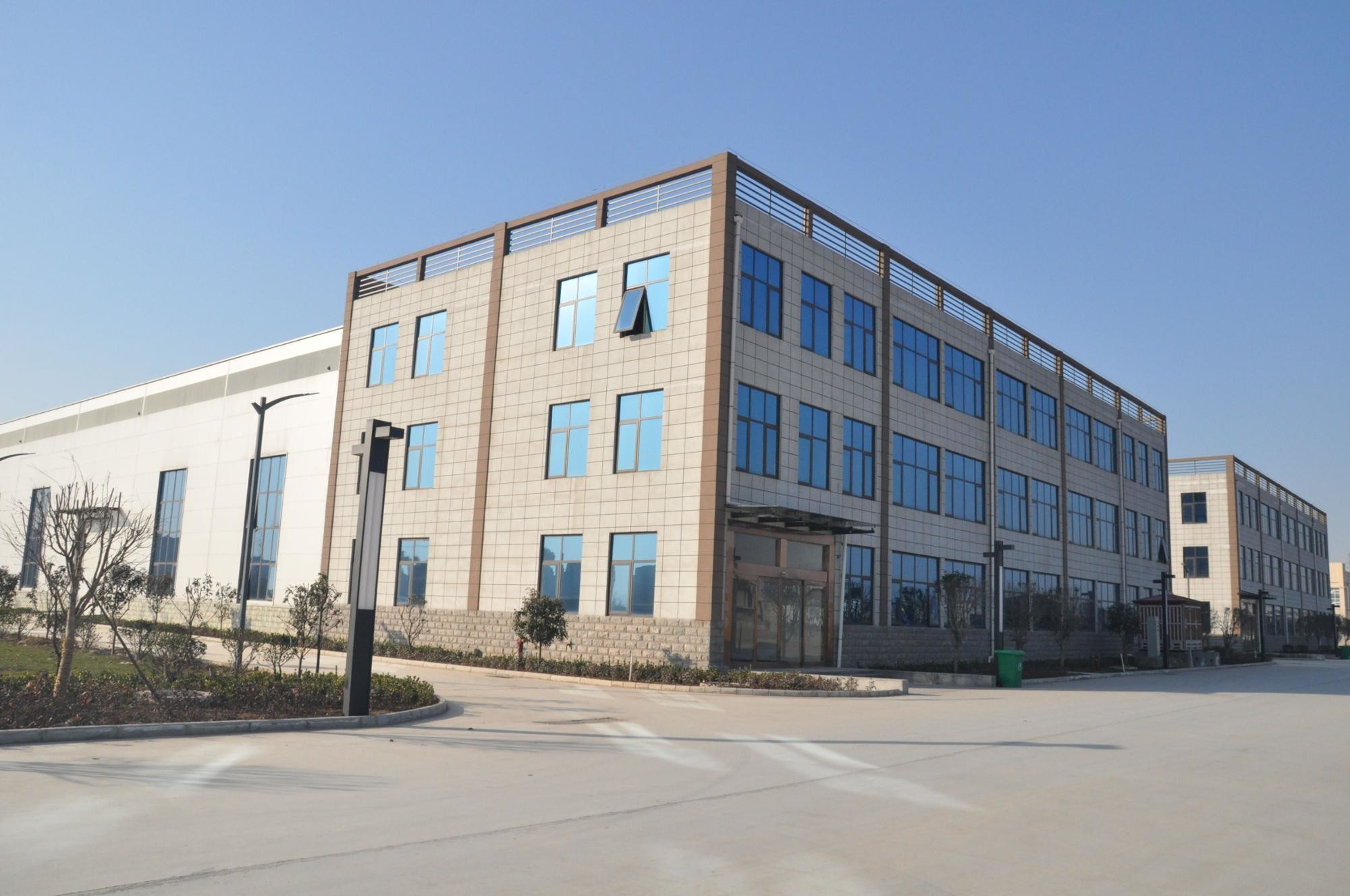

Company Information

 GC310 Portable multi gas analyser of CH4,H2S,O2,CO 26GC310 Portable multi gas analyser of CH4,H2S,O2,CO 28GC310 Portable multi gas analyser of CH4,H2S,O2,CO 4 GC310 Portable multi gas analyser of CH4,H2S,O2,CO 32GC310 Portable multi gas analyser of CH4,H2S,O2,CO 34GC310 Portable multi gas analyser of CH4,H2S,O2,CO 36GC310 Portable multi gas analyser of CH4,H2S,O2,CO 38

 1, Founded in 2004, located in zhengzhou, henan province, central China.

 2, R&D team: 50 engineers

 3, Annual sales: 20,000 units detectors and controll pannels (2014)

 4, ISO9001-2000, CE

 5, Main products: portable and fixed gas detectors, multi channel gas detection controllers.







FAQ



1, Payment terms:  T/T, western union, paypal, L/C, money gram

2, Delivery: 2-3 working days

3, Calibration: one year, you can calibrate it in your country or send the sensor back to us.
