GC210 Handheld Ozone Measurement Meter 0-10ppm
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Model Number | GC210 |
| Price | $135.00/Pieces 1-9 Pieces |
| Packaging Details | cartons,aluminium alloy |
| Supply Ability | 5000 Unit/Units per Week |
| Type | Ozone Concentration Detection | Product Name | Handheld Ozone Measurement Meter |
|---|---|---|---|
| Protection Grade | Ex Ia IIC T4 | Alarm Type | Visual,audible,vibration |
| Sampling Method | Diffusion | Power Supply | DC3.6V, 1200mAh |
| IP Grade | IP66 | Measure Range | 0-1ppm, 0-10ppm |
| Dimension | 102X56X26mm,120g | Sensitivity | 1ppm |
| T90 | <30S | Port | Chinese Main Port |
GC210 Handheld Ozone Measurement Meter
Handheld Ozone Measurement Meter product introduction
The portable ozone gas detector GC210 is used for environment measure to test the O3 generator. It gives alarm when O3 is up to a dangerous level in the air, or in the spaces such as gyms, sports centers. Please check its technical datasheet attached for your kind reference. And for this purpose, we suggest the middle range 0-10.0 or 20.0ppm ozone gas detector.
The O3 gas it's ideal disinfectant to clean the virus. Much spaces such as gyms, sports centers, meeting room etc adopt ozone generator to do disinfectant work.
O3 is helpful to do disinfectant work but itself is harmful to people health. When ozone disinfectant work is being done, it must be sure there is no person in that space and people are forridden to enter that space at least 30 minutes after disinfection. .
When the ozone concentration in the environment reaches 0.15ppm, it can be sniffed; when it reaches 0.5-1ppm, it can cause mouth dry and other discomfort. when it reaches 1--4ppm, it can cause cough, when it reaches 4-10ppm; it can cause strong cough
Handheld Ozone Measurement Meter product technical specifications
Range: 0-10ppm
Resolution: 0.01ppm (as you required)
Response time: T90<30s
Sensor: Replacible temperature-compensated electric-chemical sensor
Working Surroundings: -30~ +50 degree. Humidity: < 95%RH non-condensing
Alarm indication: two grades sound, light and vibration alarm.
AF Indication: > 85dB the higher of buzz frequency, higher the gas concentration is.
Battery: DC3.6V 1200mAh single lithium battery
Working period: about 8 hours for Combustible gas and about 100hours for toxic gas and oxygen
IP Grade: IP66
Explosive Grade: Ex ia IIC T4.
Size: 96mm*50mm*22mm
Net: 120g

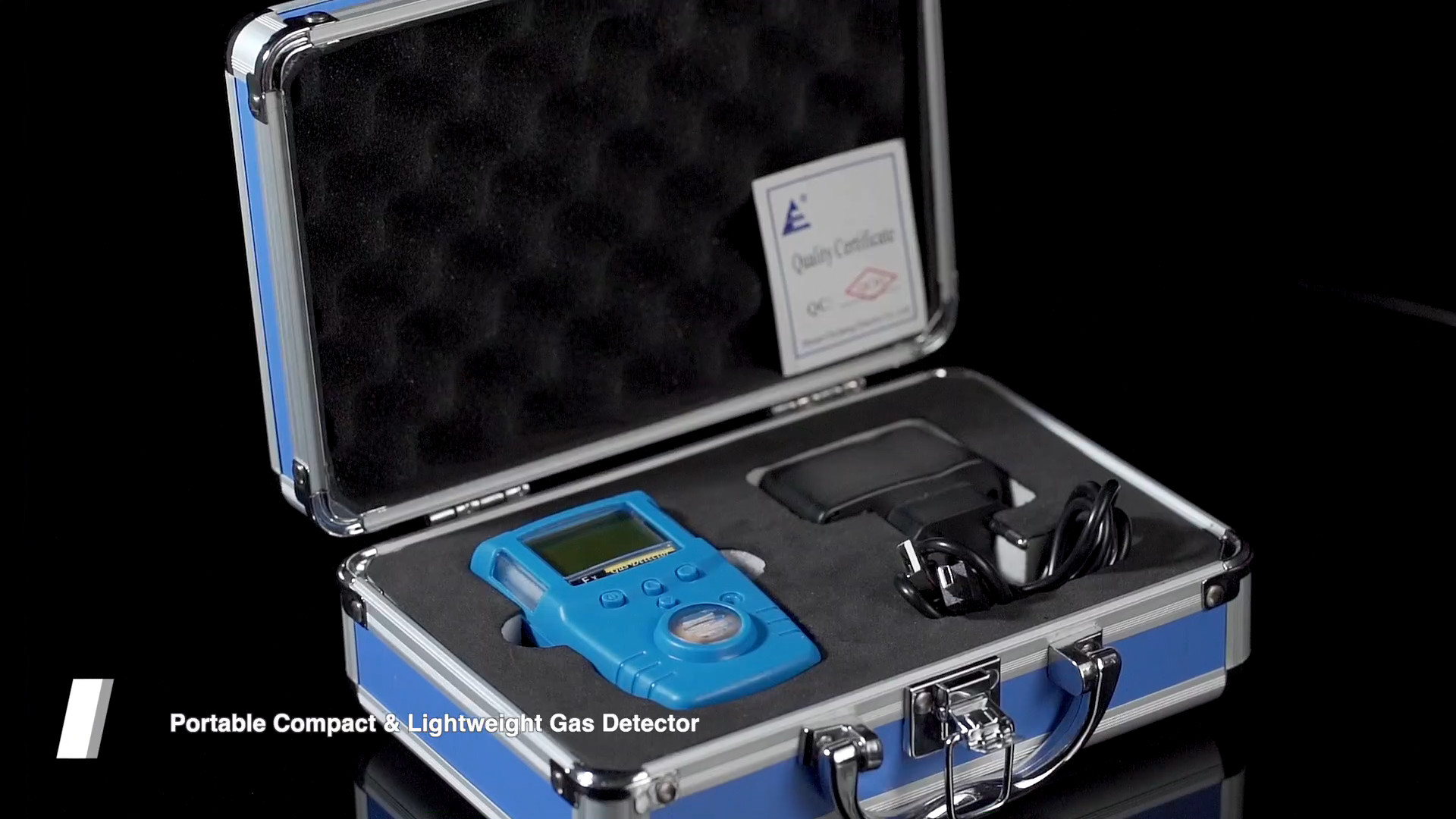

Handheld Ozone Measurement Meter detailed photos
company introduction
More than 10 years industrial experience
ODM & OEM service available;
1-3 year warranty;
3000 square meter factory area;
10 production lines;
50 experience R&D engineers;
Handheld Ozone Measurement Meter product overview
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.
FAQ:
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
d. Your other ideas about gas detection tools, we can help you design and put them into production.
e. Different language versions, such as English, Russian, Chinese, etc. according to customers requirement.
