Ozone O3 gas generator workshop usage handheld ozone measurement with IP66 protection grade
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Model Number | GC210 |
| Price | $135.00/Sets 1-9 Sets |
| Packaging Details | Carton box or aluminum box option. Carton box size for 1pc:20*14*9cm Aluminum box size:23*16*10cm |
| Supply Ability | 5550 Set/Sets per Month handheld ozone measurement |
| Type | Ozone Concentration Detection | Measure Range | 0-10ppm, 0-1ppm |
|---|---|---|---|
| Resolution | 0.01ppm | Accuracy | 0.1ppm F.S |
| Response Time | T90<30s | Charging Time | 4h~6h |
| Gas Detector Portable IP Grade | IP66. | Display | LCD |
| Model | Handheld Ozone Measurement | Power Source | With Battery And Charger |
| Weight&Dimension | About 120g 102 Mm*56mm*26mm | Port | Qingdao/Shanghai/Tianjin |
Ozone O3 gas generator workshop usage handheld ozone measurement with IP66 protection grade
Ozone O3 gas generator workshop usage handheld ozone measurement with IP66 protection grade

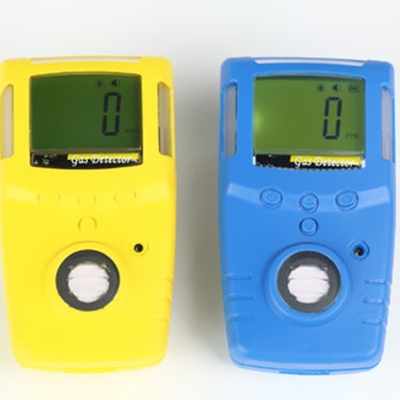

The portable ozone gas detector GC210 is used for environment measure to test the O3 generator. It gives alarm when O3 is up to a dangerous level in the air, or in the spaces such as gyms, sports centers. Please check its technical datasheet attached for your kind reference. And for this purpose, we suggest the middle range 0-10.0 or 20.0ppm ozone gas detector.
The O3 gas it's ideal disinfectant to clean the virus. Much spaces such as gyms, sports centers, meeting room etc adopt ozone generator to do disinfectant work.
O3 is helpful to do disinfectant work but itself is harmful to people health. When ozone disinfectant work is being done, it must be sure there is no person in that space and people are forridden to enter that space at least 30 minutes after disinfection.
When the ozone concentration in the environment reaches 0.15ppm, it can be sniffed; when it reaches 0.5-1ppm, it can cause mouth dry and other discomfort. when it reaches 1--4ppm, it can cause cough, when it reaches 4-10ppm; it can cause strong cough.
Application:
The detector monitors the single gas(Combustible gas, toxic gas, oxygen) density and is widely used in metallurgy, electric factory, chemical, mines, tunnels, underground pipes etc, effectively prevent toxic accident.
1. Reliable and durable fixed life by the imported sensor.
2. Automatical calibration and zero-set.
3. Apparent and Clear Display, English menu, displaying real time and battery capacity, low battery indication and automatic turn-off for low voltage.
4. Rapid and effective warning with audible alarm, and extremely bright visual light alarm and vibrating alarm as standard.
5. Advanced self-test of complete functions automatically when turned on.
6. 1000 record capacity.
7. Alarm for sensor failure.
8. Password management to avoid wrong operation.
9. Advanced self- calibration for accuracy.
| Detected gas | Ozone gas |
| Detected gas range | 0-100ppm |
| Resolution | 1ppm |
| Detected other gas range | See the attached table |
| Accuracy | 3%F.S. |
| Response Time | T90<30S |
| Indication | Large LCD |
| Alarm method | Visual, Audible and vibration |
| Operation temperautre | -30~+50℃ |
| Humidity | <95%RH no condensation |
| Li-battery capacity | DC3.7V 1200mA |
| Charging Time | 4h~6h |
| IP grade | IP66 |
| Weight | About 120g |
| Dimension | 102*56*26mm |
Gas Referential Chart
Henan Chicheng Electric Co.,Ltd is a professional manufacturer in kinds of gas safety device since2004years, We are ISO9001-2000 certified high-tech import and export company and also the government permitted gas detecting device manufacture with Measurement of production License (MC), The explosion-proof certificate (EX) and Fire type certificate (CNAS) approved.
We are in in the research and marketing a range of portab gas detector, home gas detector, fixed gas detector,industrial process automation contro and analytical instrument,etc. Our prodcuts are widely welcomed at home and abroad.
We aim at providing customers high quality product, professional solutions and comprehensive after-sale service. Sincerely welcome customers worldwide.
Service Team
Xuchang Chicheng Electric Co.,Ltd, which is Henan Chicheng's wholly-owned subsidiary, covers 60000 squre meters.
Our Show room
Worldwide Fair & Visiting Customer
Certificates
FAQ
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
d. Your other ideas about gas detection tools, we can help you design and put them into production.
e. Different language versions, such as English, Russian, Chinese, etc. according to customers requirement.
