All Products

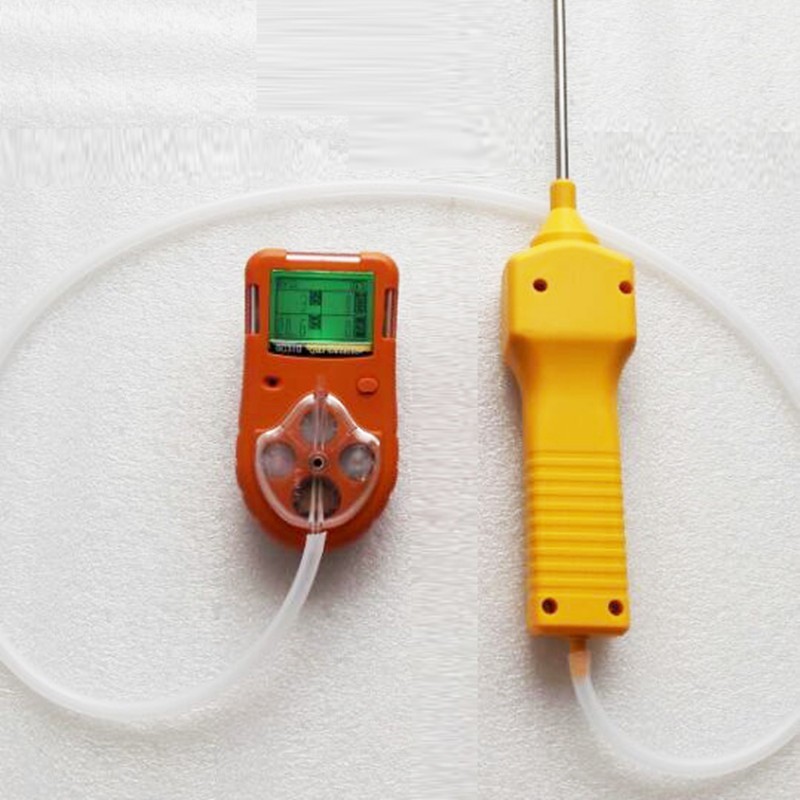

Entry Confined Space personal safety usage multi portable gas meter with pump
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Certification | CE |
| Model Number | GC310 |
| Price | $360.00/Sets 1-9 Sets |
| Supply Ability | 5000 Set/Sets per Month |
Product Details
| Network | NBiot | Detected Gas | Combustible Gas, Toxic Gas And Oxygen |
|---|---|---|---|
| Ex Grade | EX I II CT3 | Screen | 128*64 Dot Matrix LCD |
| Response | T90<30s | Accuracy | <3% F.S |
| Working Temperature | -30~50 Degree | Power Supply | 3.6V Li-ion Chargeable Battery Can Work 200 Hours |
| Charger Power | AC220V | Ingress Protection | IP66 |
| Weight | About 1200g |
Product Description

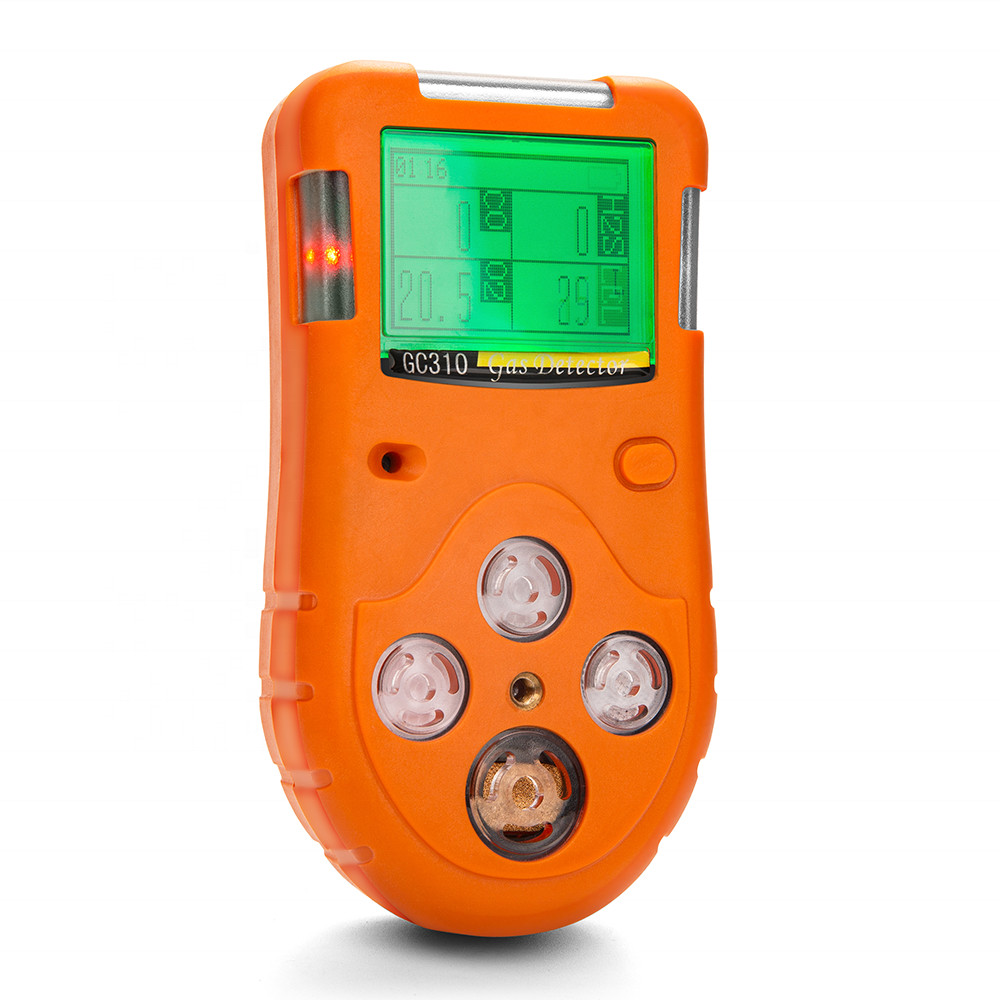

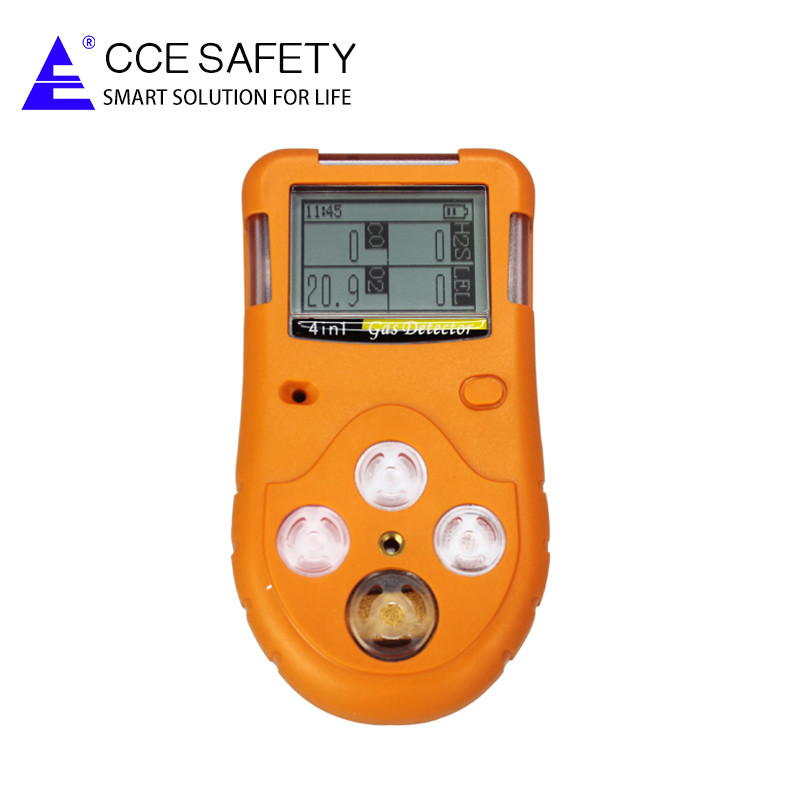

Portable Multi-gas Detector GC310
Introduction：GC310 is a flexible portable gas detector for multi-gases(up to 4 gases) leak detection. The normal gases detected are CO, H2S, O2, LEL（CH4）while it can be set to monitor other four gases. GC310 has large LCD screen and two instant alarms with audio/visual and vibratory indicators, making it a favorite indicator for operators working in demanding industrial environments。
Main Features
Characteristics: 1.Compact, small and lightweight design 2.Two instant alarms with audio/visual and vibratory indicators 3.Large easy to read display of emblems, instantaneous value, peak value, TWA and STEL. 4.Self test function: Self-testing upon start up or need for display, battery, sensor and alarm 5.Warning Indicator: regular flashing light and audible alarm. 6.Up to 4 gases design 7.English operation interface and English software

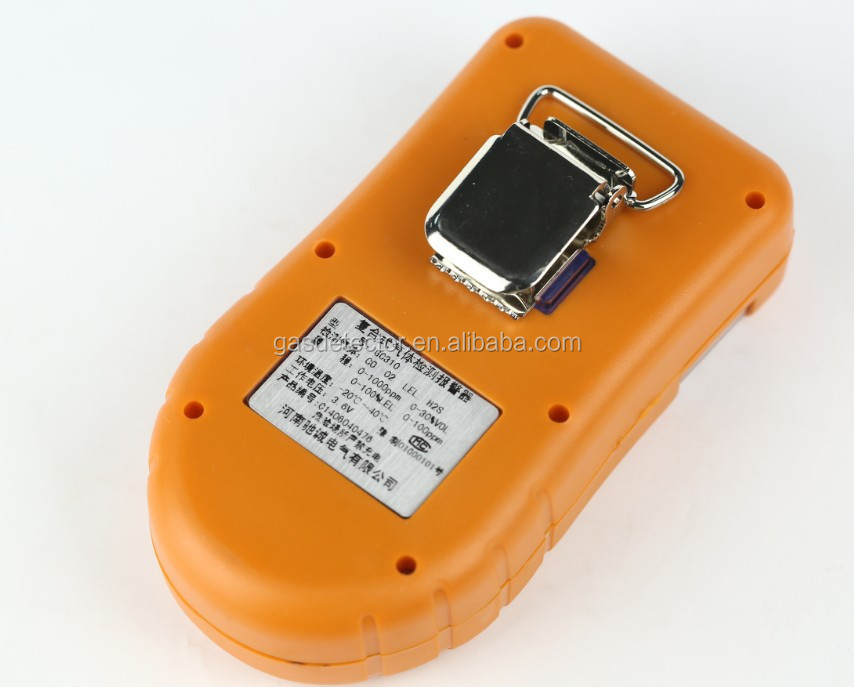

Detailed Images

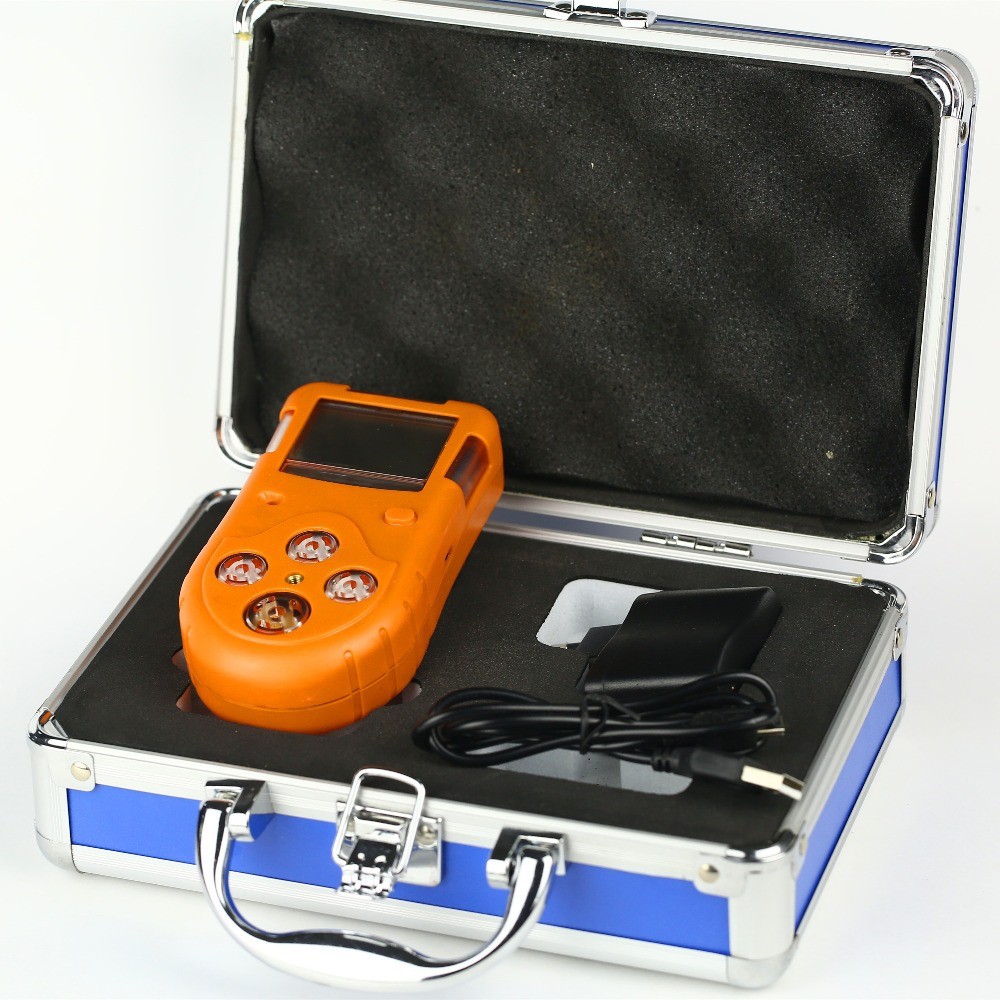

Optional aluminum box
Product Paramenters
Range | H2S：0-100ppm CO：0-100ppm O2：0-30%VOL CO2:0-5000/10000ppm |
Alarm value preset: | H2S:15ppm(the normal alarm value is 20ppm) CO: 35ppm(the normal alarm value is 20ppm) O2: <=19.5%VOL or >= 23.5 %VOL |
Sensor | electrochemical sensor (with temperature compensation) |
Responding | T90 < 30s |
Alarms | Flashing wide-angled LED alarm light and LCD reading; 90dB impulse output |
Display | LCD display of gas reading and condition, display TWA and peak value when needed |
Ambient Environment | -20—50℃、5—90%RH(no condensation) |
Power Supply | 3.6V Li-ion chargeable battery can work 200 hours |
Enclosure | compact , durable ruggedised ABS shell |
Size & Weight | 126×66×32（mm）,220g |
Explosion Grade | EX ibⅡCT3 |
Application:
Related Products
About Henan Chicheng
Henan Chicheng Electric Co., Ltd
Henan Chicheng Electric Co., Ltd is a high-tech import and export company with OHSA, ISO9001 and ISO14001 certificates and it is also the government permitted gas detecting device manufacture with Measurement of production License（MC), The explosion-proof certificate（EX） and Fire type certificate(CNAS)approved, we are in in the research and marketing a range of gas leak monitoring device for both domestic field and industrial application, industrial process automation control, safety protection and analytical instrument and we are in Zhengzhou Henan China.
Henan Chicheng Factory
Exhibition production show room

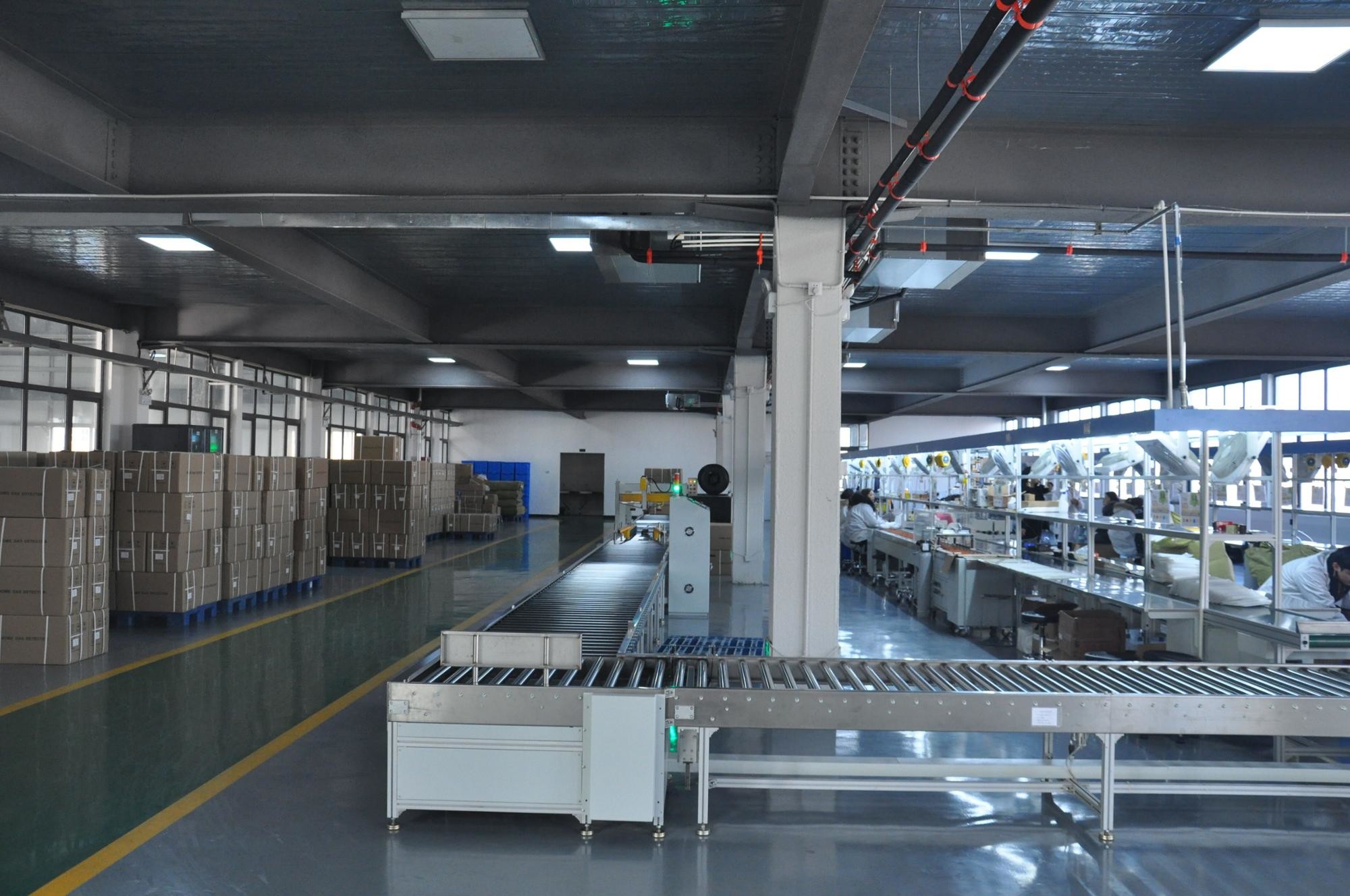

Factory Production line onlin gas detector Home gas alarm
Calibration
production
Henan Chicheng has a mission to offer proper device and excellent all-round services to customers from automotive production plants, petrochemical, gas, pharmaceutical and metallurgical industries, Zinfandel producing wineries etc. R&D center of Henan Chicheng, cooperating with the national science centers and universities, has been focusing on research of the techniques, design and project service. Achievements of the R&D teams had been granted patents and trusted by users nationwide.
Service Team
Every worker in Chicheng everyday is making efforts to deliver the best quality product resources, over 10000 solutions to yourgas detection application and service after sale and technical support to all the customers.Sincerely welcome customers worldwide.
Certifications
Why Choose Us
FAQ
Q1:Are you a trading company or manufacturer ?
A1:We aremanufacturer.
Q2:What about the payment method?
A2:T/T, Paypal, Western Union, L/C is available.
Q3:Does your company accept customization?
A3:We do customizing service for customers.
Q4:What about the Shipment?
A4:We'll choose proper transportation mode based on the weight of goods, usually arrange shipment by air express such as DHL,FEDEX,TNT or UPS.
Q5:What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6:Can you do OEM and OEM?
A6: Yes ,we can do that.
Q7: How contact us
A7:Send your Inquiry Details in the Below, Click "Send" Now! ↓
