Portable Multi-gas Detector GC310

Place of Origin	China
Brand Name	CCE
Certification	CE/ISO/CNAS
Model Number	GC-310
Price	$355.00/Units 1-4 Units
Packaging Details	Carton box: dimension of 21.51710cm Gross weight 1.5kg
Supply Ability	5000 Set/Sets per Month

Product Details

Special Features	Waterproof / Weatherproof	Function	Display
Application	Facroty,Industy,farm,hospital,	Name	Portable Multi-gas Detector GC310
Warranty	2 Years	Use	Gas Leakage
Alarm Output	Audit,light,vibrating	Port	Qingdao/Shanghai/Tianjin

Leave a Message

Product Description

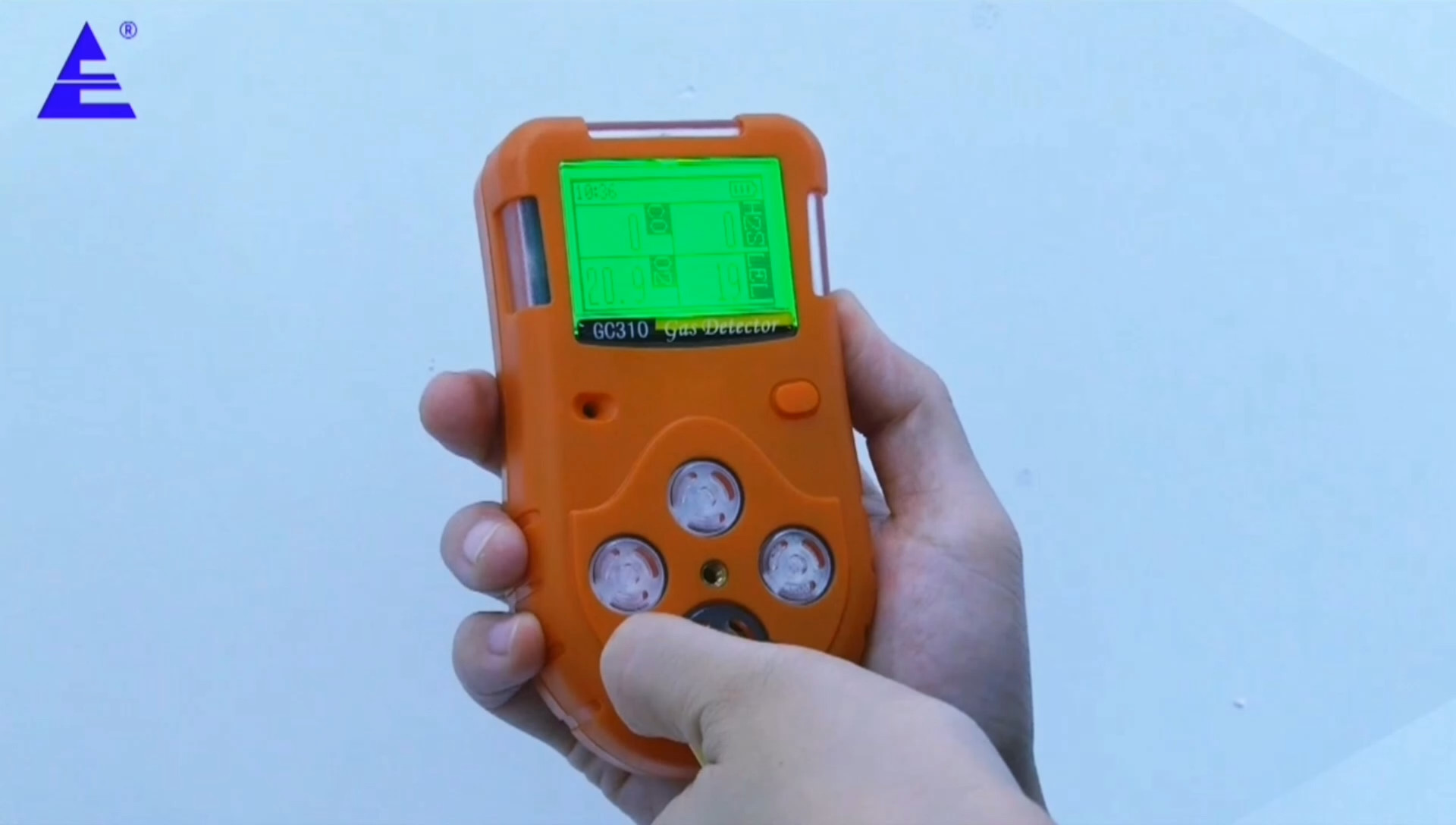

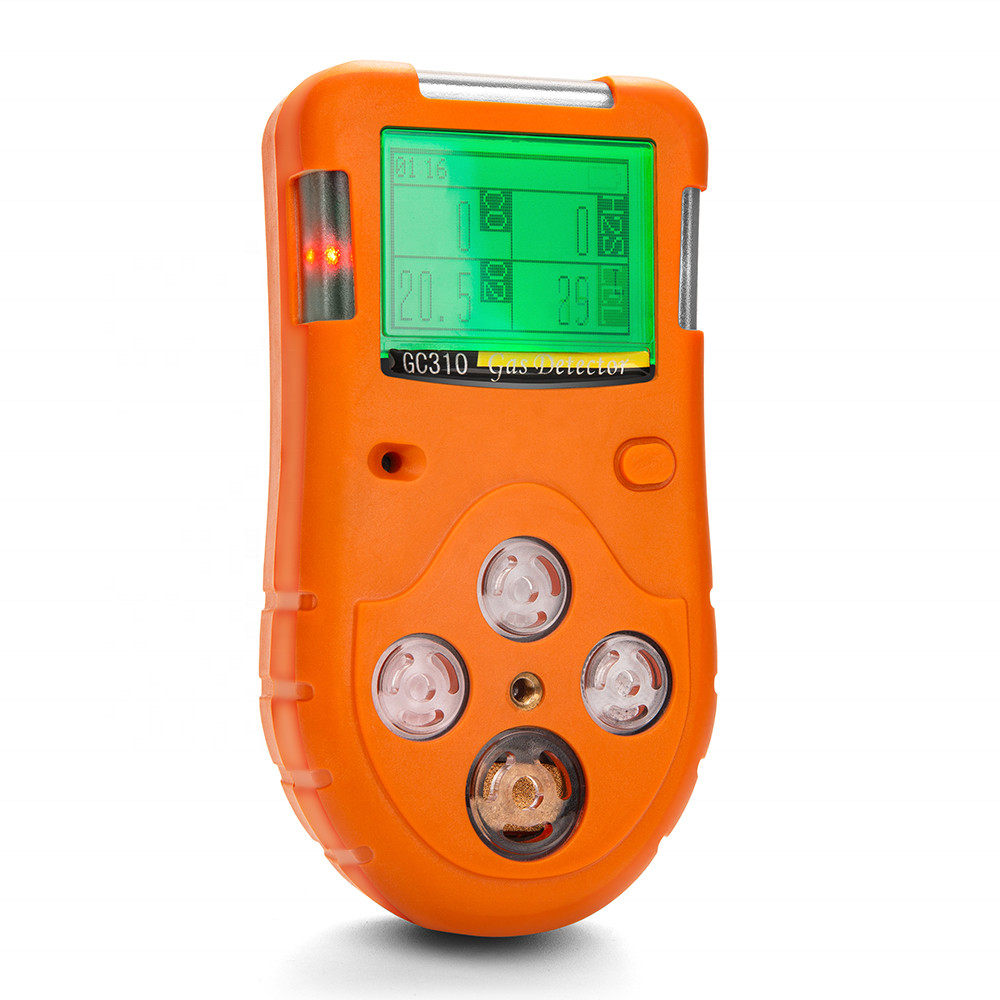

Portable Multi-gas Detector GC310

Introduction：GC310 is a flexible portable gas detector for multi-gases(up to 4 gases) leak detection. The normal gases detected are CO, H2S, O2, LEL（CH4）while it can be set to monitor other four gases. GC310 has large LCD screen and two instant alarms with audio/visual and vibratory indicators, making it a favorite indicator for operators working in demanding industrial environments。

Main Features

Characteristics: 1.Compact, small and lightweight design 2.Two instant alarms with audio/visual and vibratory indicators 3.Large easy to read display of emblems, instantaneous value, peak value, TWA and STEL. 4.Self test function: Self-testing upon start up or need for display, battery, sensor and alarm 5.Warning Indicator: regular flashing light and audible alarm. 6.Up to 4 gases design 7.English operation interface and English software

Detailed Images

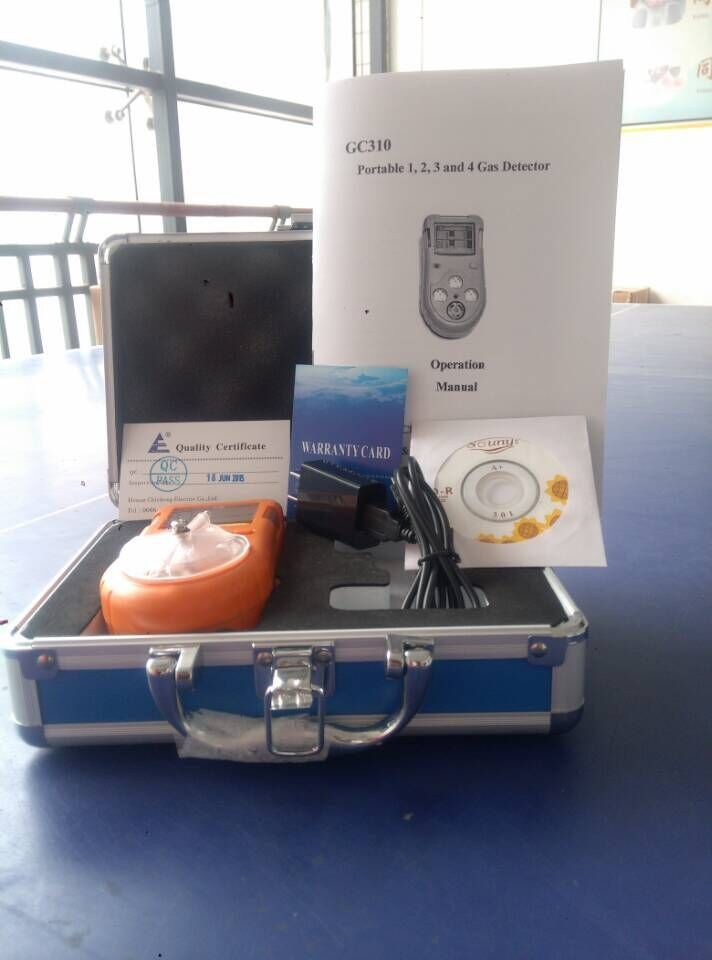

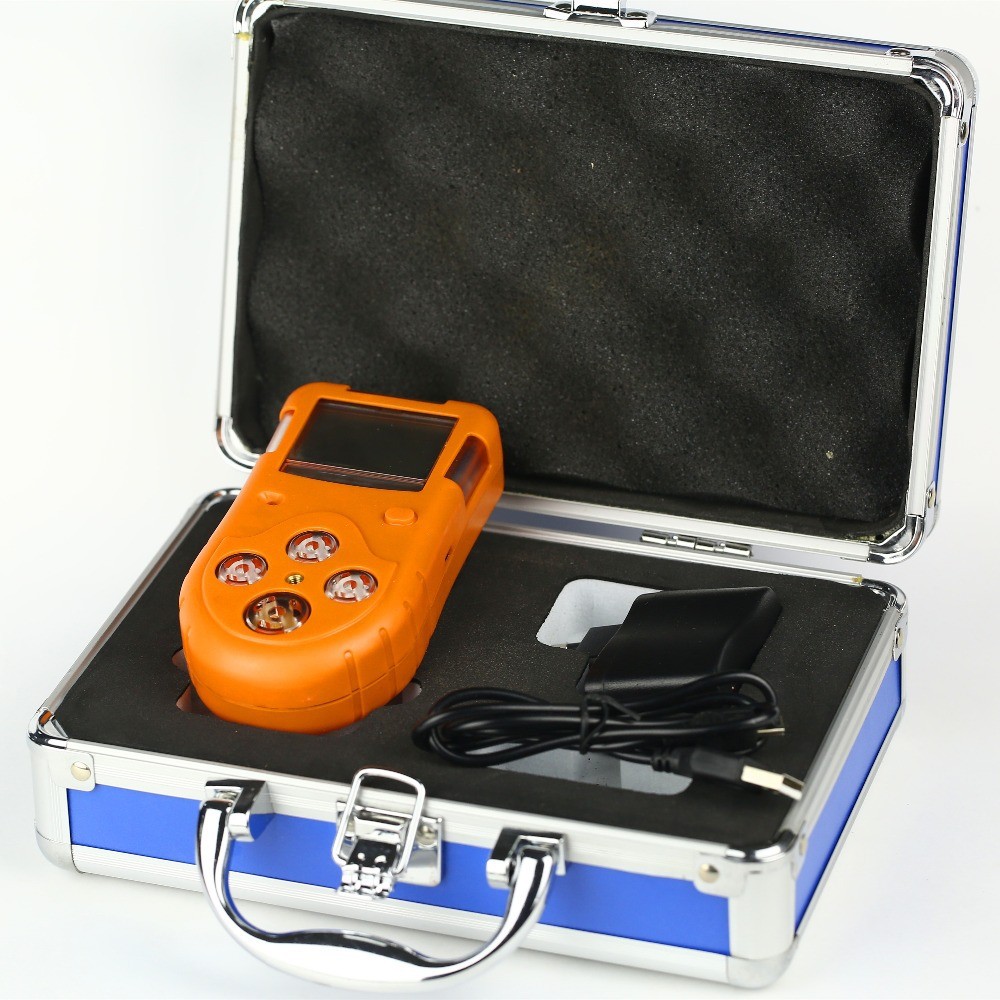

Optional aluminum box

Product Paramenters

Range	H2S：0-100ppm CO：0-100ppm O2：0-30%VOL CO2:0-5000/10000ppm
Alarm value preset:	H2S:15ppm(the normal alarm value is 20ppm) CO: 35ppm(the normal alarm value is 20ppm) O2: <=19.5%VOL or >= 23.5 %VOL
Sensor	electrochemical sensor (with temperature compensation)
Responding	T90 < 30s
Alarms	Flashing wide-angled LED alarm light and LCD reading; 90dB impulse output
Display	LCD display of gas reading and condition, display TWA and peak value when needed
Ambient Environment	-20—50℃、5—90%RH(no condensation)
Power Supply	3.6V Li-ion chargeable battery can work 200 hours
Enclosure	compact , durable ruggedised ABS shell
Size & Weight	126×66×32（mm）,220g
Explosion Grade	EX ibⅡCT3

Application:
