Cool air detection methods single gas leak ammonia nh3 monitor detector system
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Certification | CE |
| Model Number | GC 260 |
| Price | $309.00 - $369.00/Sets |
| Packaging Details | each set alarm will be packed with the export standard carton package or aluminum box or as per customer require |
| Supply Ability | 5550 Set/Sets per Month ozone meter |
| Type | Portable Gas Detector | Customized Support | OEM, ODM |
|---|---|---|---|
| Detected Gas | Ozone O3 | Color | Blue |
| Model | GC260 Portable Ozone Gas Analyzer | Display | OLED |
| Accuracy | 1ppm | Response Time | T90<30s |
| Battery | DC3.6V 1200mA Rechargeable Lithium Battery | IP Grade | IP66. |
| Explosive Grade | Ex Ia IIC T4 | Size | 91mm*63mm*23mm |
| Port | Qingdao |
Cool air detection methods single gas leak ammonia nh3 monitor detector system
Cool air detection methods single gas leak ammonia nh3 monitor detector system

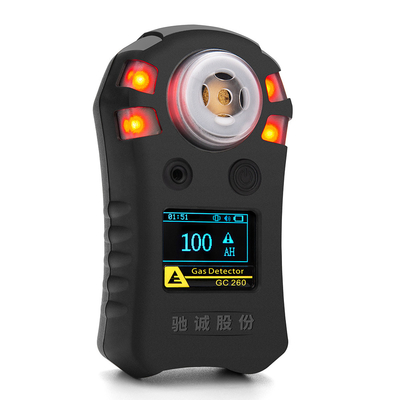

is a portable gas detector with intrinsic safety (detector hereinafter ) , which can continuously monitor ozone
gas density.
It is applied for ozone gas leak detection, rescue, and also applied in the surroundings such as underground pipe and mine, confined space to keep the workers safe from invasion of hydrogen damage to equipment.
The detector inspects ozone gas leak density by natural diffusion and adopts imported electrochemical sensor, having good sensibility and excellent repeatability.
The device has embedded micro control technique and simple signal display and English interface, making the operation easy.
Complete function and dependability makes the whole device a leader in the nation. The cover of the detector is
refined from high-intensive engineering material (compound elastic rubber), which made the detector touches well, waterproof and explosion-protection.
Application:
The detector monitors ozone density and is widely used in metallurgy, electric factory, chemical, mines, tunnels, confined space, underground pipes etc, effectively prevent toxic accident.
Cool air detection methods single gas leak ammonia nh3 monitor detector system :
1.128*64 matrix dot OLED, the display is with backlight and can be seen clear under sunshine.
2. Smart, light, compact, easy to carry
3.Reliable and durable fixed life by original imported sensor, and both the sensor and battery can be replaced.
4.With temperature-compensation.
5.Three ways for alarm: audible alarm(>85db alterable sound alarm),visual alarm(wide-angled red and dual-color blue/red LED flash and visual from a distance), and vibration(various frequency alarm indicates different
alarm grades in the noisy surroundings)
6.IP66 design for water- dust proof
7.Low, high alarm limit, TWA and STEL are adjustable.
8.Advanced self-test of complete functions automatically when switched on
9.Storage: 500 records
10.IR two-way data receiving and dispatching and can be connected and adjusted with Upper machine by USB.
11. Heartbeat detecting and with single lithium battery for 2 years normal work
12.Safe indicate for another safeguard.
Cool air detection methods single gas leak ammonia nh3 monitor detector system :
1.Gas detected: ozone
2.Accuracy: 1ppm,
3.Response time: T90<30s
4.Sensor: Replaceable original CITY sensor with temperature-compensation
5.Automatically temperature compensation
6.3 ways alarm indication: audible and visual alarm and vibration.
7. temperature-compensated electro-chemical sensor
8.Working Surroundings: Combustible Gas: -40 to 70 degree, toxic gas:-30 to 50 degree
9.Humidity: < 95%RH non-condensing
10.Alarm indication: two grades sound, light and vibration alarm.
11.AF Indication: > 85dB the higher of buzz frequency, higher the gas concentration is.
12.Battery: DC3.6V 1200mAh Rechargeable lithium battery
13.Working Period: about 8hours for combustible gas and 200hours for toxic gas and oxygen gas.
14.IP Grade:IP66
15.Explosive Grade: Ex ia IIC T4.
16.Size: 91mm*63mm*23mm
17.Net: 120g
Information of the related gas can detected by the GC 260:
-Fast delivery:
Sample order in stock and 3-7 working days for bulk production.
-Payment:
You can pay for the order via T/T, Western Union, PayPal & Money Gram.
-Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You also can choose your own shipping forwarder.
Henan Chicheng Electric Co., Ltd is a ISO9001-2000 certified high-tech import and export company and also the government permitted gas detecting device manufacture with Measurement of production License (MC), The
explosion-proof certificate (EX) and Fire type certificate (CNAS) approved, we are in in the research and marketing a range of portable and fixed gas detection products, industrial process automation control, safety protection and analytical instrument and we are in Zhengzhou Henan China.
We aim at providing customers quality product. Each properly suited to its task, timely service and support.
Sincerely welcome customers worldwide.
Giving the best to our clients
Listening to client’s needs and feedback
Observing statutory and regulatory requirement
Being reliable and efficient
Acquiring latest skills and technology
Lowering cost for our clients
1, I will be here within 24 hrs for your any questions and require.
2, Supplying you the professional answers anytime.
3, All products will have been strictly Quality Checked before packing for you.
4, All products will be well packed before shipping.
5, All our products have 2 year warranty. And we sure the product will be free from maintenance within warranty
period.
6, Fast delivery for you anytime. We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, CHINA
AIR POST.
7. Flexible payment, You can pay for the order via T/T, Western Union, Paypal & Money Gram.
