HD1000 Domestic gas leak detector for home security CO CH4 LPG leak detection alarm
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Certification | CE |
| Model Number | HD1000 |
| Minimum Order Quantity | 50 Units |
| Price | $9.00/Units |
| Packaging Details | cartons |
| Network | NBiot | Product Name | Domestic Gas Leak Detector |
|---|---|---|---|
| Sampling Method | Diffusion | Gas | CH4,LPG,LNG,CO |
| Alarm Point | 7%LEL(CH4,LPG), 100ppm(CO) | Audible | >80dB |
| Working Voltage | AC220V/110V ±15% | Working Environment | -10 °C~+55 °C |
| Humidity | <95% RH | Atmospheric Pressure | 86kpa~106kpa (indoor) |
| Size And Weight | 120 X 82 X 45 Mm, 230g |
HD1000 Domestic gas leak detector for home security CO CH4 LPG leak detection alarm
Domestic gas leak detector product description
This detector is applied in detecting combustible gas LPG, methane, CO in the air at home. Once the gas
concentration is over the pre-set alarm value,the device will send out audible-visual alarm to remind
people to take safety measures or drive the ventilation device to prevent the potential fire accident.
Domestic gas leak detector product features
- Advanced catalytic sensor
- Electro-chemical CO sensor
- Professional low profile design
- With special circuit (MCU processing control and SMT manufacture Technology)

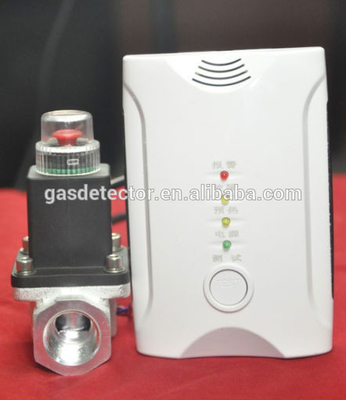

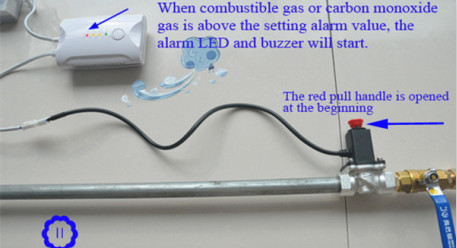

- Direct connection to a solenoid valve

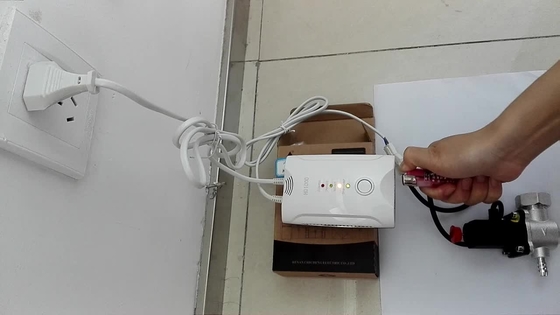

Installation: Unit plugs directly into any wall outlet
Domestic gas leak detector product applications
Domestic gas leak detector product specification
| Model | HD1000 Home CH4 and CO Detector |
| Detect gas | LPG, natural gas, LNG and carbon monoxide (CO) |
| Detecting principle | Advanced semiconductor sensor & electro-chemical CO sensor |
| Setting Alarm | 7%LEL for natural gas/LPG, 100ppm/CO |
| Wiring | plug-in |
| Accuracy | +/-3%LEL |
| Audible alarm level | ≥80dB |
| Response time | T90≤30s |
| Operating voltage | AC220V/110V ±15% (as per different electric spec) |
| Power consumption | 2.5W |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 120mm (L)×82mm(W)×45mm(H) |
| Weight | 230g |
| Lifetime | 5 Years |
| Warranty | 2 Years |
Domestic gas leak detector product details
Company introduction
Product overview:
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.

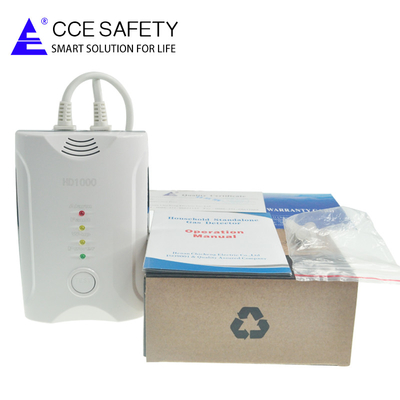

Domestic gas leak detector packing & delivery
Delivery: Sample order in stock and 3-7 working days for bulk production.
Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
FAQ:
1. Can i have a sample order?
A:Yes, you are welcome to have sample to test and check the quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
