HD1000 Home security natural gas detection alarm
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Chicheng |
| Certification | CE |
| Model Number | HD1000A |
| Minimum Order Quantity | 100 Pieces |
| Price | $6.00 - $12.00/Pieces |
| Packaging Details | in standard export carton package. |
| Supply Ability | 2000 Piece/Pieces per Day |
| Network | NBiot | Enclosure Material | ABS |
|---|---|---|---|
| Color | White | Output | 12V DC Output, Connected With Valve |
| Detecting | LPG,LNG,Natual Gas,etc Combustible Gas | Power Supply | AC110/220V |
| Solenoid Valves | Optional | Plug | EU,USA Standard |
| Product Name | Home Security Natural Gas Detection Alarm | Port | China |

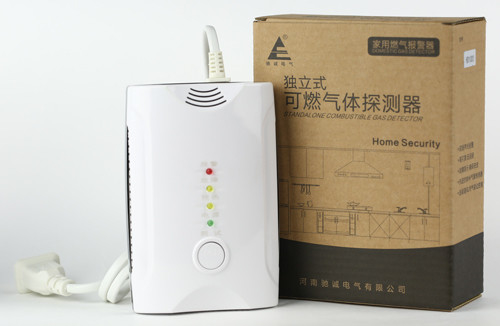

home security natural gas detection alarm

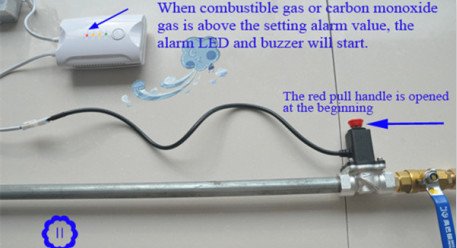

HD1000 is a standalone Home security natural gas detection alarm. It adopts advanced gas-sensitive elements which with advanced gas detection industrial electric technique and technology gas leak detector. This alarm for home use is applied in detecting combustible gas LPG, methane in the air at home. Once the gas concentration is over the pre-set alarm value, the detector will give out audible-visual alarm to remind people to take safety measures or drive the ventilation device so that the dangerous fire disaster can be prevented, people can be safe at home.
LPG Gas Leak Detector For Home Use:
Application: HD1000 Detector is optimized for use by professionals with explosive gas leak detection and it is ideally suited for use in private or social housing, such as bedrooms, hotels, hospitals and even dormitory rooms where the natural gas and LPG pose a substantial hazard if a leak occurs.
Features & Benefits:
Detecting gas: natural/methane gas and propane gas, coal gas etc combustible gas.
High reliability--Catalytic combustion gas sensor
--professional low profile design
--With special circuit (MCU processing control and SMT manufacture Technology).
--Comply to GB15322.2-2003.

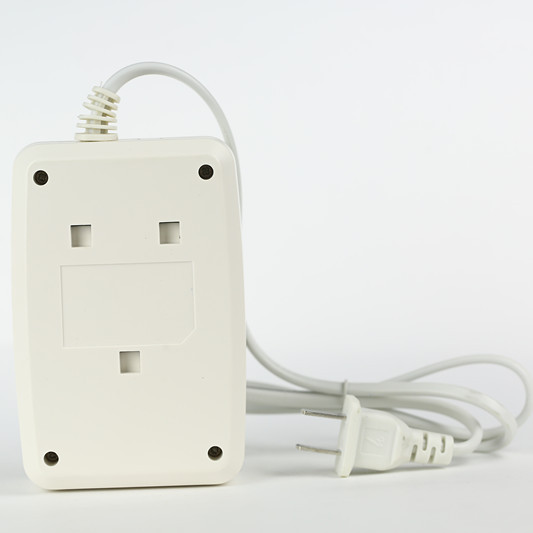

Easy to Install--Unit plugs directly into any wall outlet.
Easy operation--Clearly visible status indications LEDS (power, preheat, fault and alarm).
--Button for test and rest: Test the alarm electronics and reset the unit during alarm.
--Loud 80dB at 1m
Low total cost--Ideal for easy installation

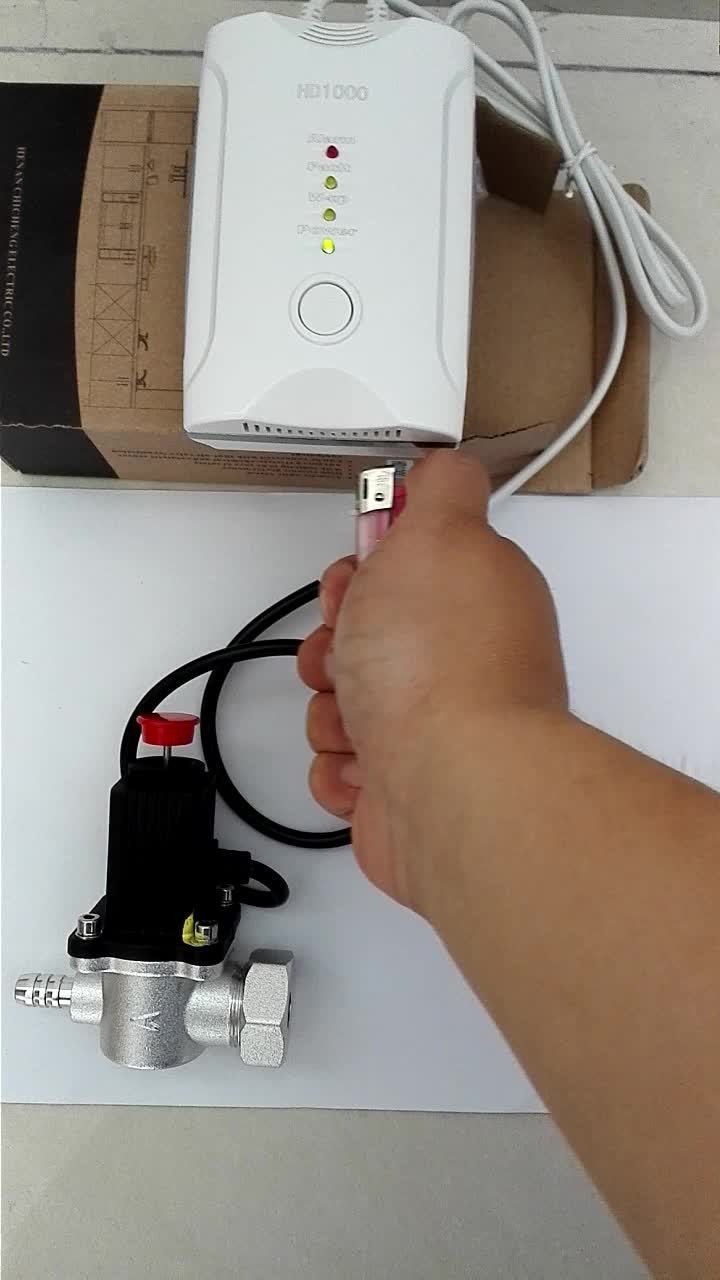

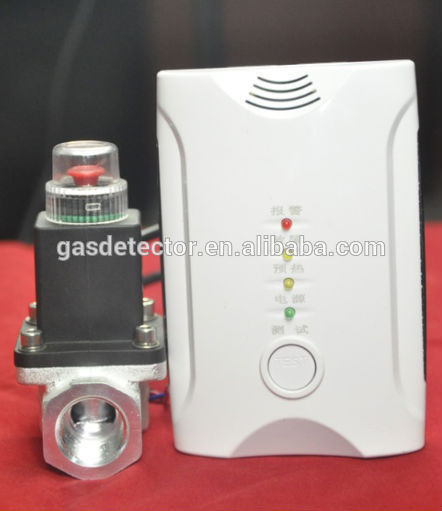

--Direct connection to a solenoid valve
--5 years working life with 2 year guarantee.
Designed for residential environment--Slim,small, compact design with stylish features, ideal for residential setting and modern decorations.
Technical Specifications:
| Model | HD1000 |
| Detect gas | Combustible Gas (LEL) or Carbon Monoxide (CO) |
| Detecting principle | Catalytic combustion sensor or electro-chemical detector |
| Setting alarm | 7%LEL for natural gas/LPG, 100umol/mo/CO. |
| Accuracy | +/-3%LEL |
| Output | Shut off valve output or relay output |
| Wiring | Plug-in |
| Audible alarm level | >=80dB |
| Response time | T90<=30s. |
| Operating voltage | 110V-230VAC 50/60Hz |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 1×b×h, 120mm×82mm×45mm |
| Weight | 330g |
| Lifetime | 5 years |
| Warranty | 2 years |
Specification of all the products :
Packaging & shipping :
-Fast delivery:
Sample order in stock and 3-7 working days for bulk production.
-Payment:
You can pay for the order via T/T, Western Union, PayPal & Money Gram.
-Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You also can choose your own shipping forwarder.
Company Information

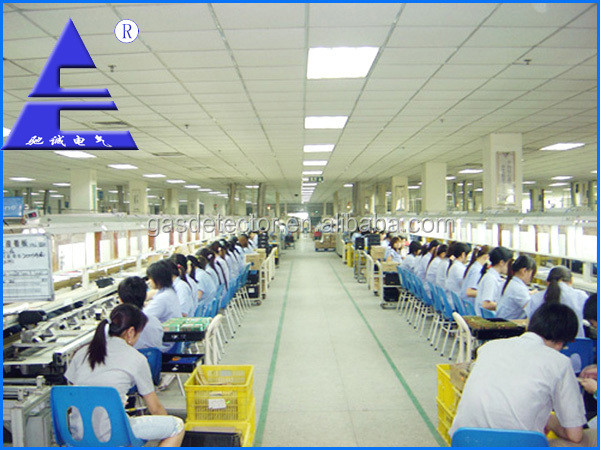

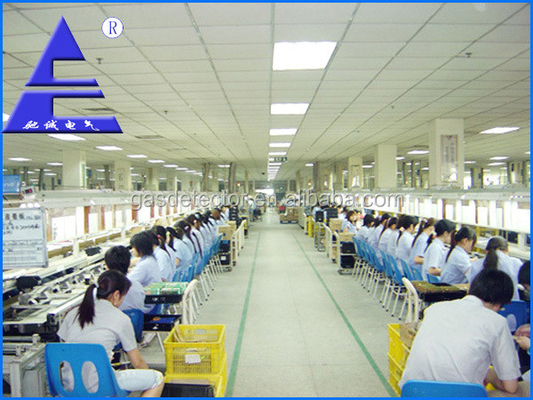

Henan Chicheng Electric Co., Ltd is a ISO9001-2000 certified high-tech import and export company and also the government permitted gas detecting device manufacture with Measurement of production License (MC), The explosion-proof certificate (EX) and Fire type certificate (CNAS) approved, we are in in the research and marketing a range of portable and fixed gas detection products, industrial process automation control, safety protection and analytical instrument and we are in Zhengzhou Henan China.
We aim at providing customers quality product. Each properly suited to its task, timely service and support. Sincerely welcome customers worldwide.
