Best home gas safety device to protect elder people to cook at home
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CHICHENG |
| Certification | CE |
| Model Number | HD1000A |
| Minimum Order Quantity | 50 Sets |
| Price | $6.00 - $12.00/Sets |
| Packaging Details | each set home smart sensor gas alarm will be packed with the export standard carton package. |
| Supply Ability | 2000 Set/Sets per Day home gas safety device |
| Detected Gas | Natural Gas, CH4, LPG | Color | White |
|---|---|---|---|
| Model | HD1000A | Response Time | T90<=30s |
| Alarm Level | 7%LEL | Temperature | -10℃~+55℃ |
| Audible Alarm Level | >=80dB | Size | 120mm (L)*82mm(W) *45mm(H) |
| Warranty | 2 Years | Weight | 230g |
| Port | Qingdao |
Best gas safety device to protect elder people to cook at home
Best home gas safety device to protect elder people to cook at home , HD1000A were designed to detect the leakage of flammable gas such as LPG, city gas, natural gas, methane, etc.
It adopts highly accurate advanced semi-conductor or catalytic sensor and utilizes sophisticated electronic components, offering a high level of functionality, reliability and flexibility.

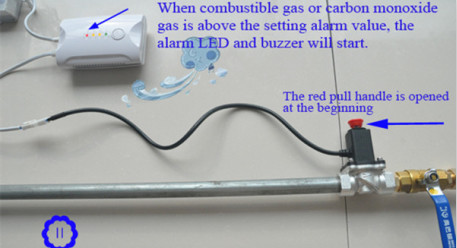

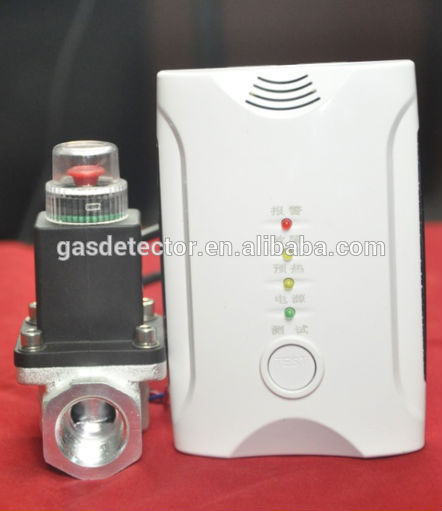

HD1000A series detectors is calibrated to alert before 7%LEL or as the customers requirement, and it can activate solenoid valves, sirens and any other signal or alarm handling device if any, by means of the built in relay.
1.High performance digital processor for high reliability.
2.High performance gas sensor promises high sensitivity.
3.Swift warm up & fast response
4.The circuit board adopt SMT process for the reliability
5. With temperature compensation, detecting results is more accurate.
6.Buzzer frequency changes as per different gas density.
7.The sensor can diagnose itself. Alerts users to replace the alarm when it is overdue.
8.The working life is about 5 years.
9. Sensor module design, once the sensor reaches its lifespan, if the board is fine, just replace the sensor module, it will be a new good gas detector.
Technical Index:
| Model | HD1000A |
| Detect gas | Flammable gas, LPG, CH4, Ntural gas, etc |
| Detecting principle | Catalytic combustion sensor |
| Setting alarm | 7%LEL |
| Accuracy | +/-3%LEL |
| Output | Shut off valve output or relay output |
| Wiring | Plug-in |
| Audible alarm level | >=80dB |
| Response time | T90<=30s. |
| Operating voltage | 110V-230VAC 50/60Hz |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 1×b×h, 120mm×82mm×45mm |
| Weight | 230g |
| Lifetime | 5 years |
| Warranty | 2 years |
The detail illustration :

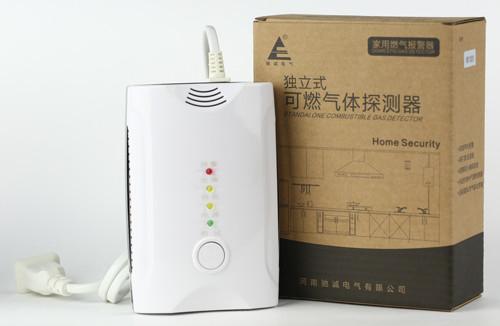

| The packaging includes:
1. Alarm with plug 2. Setscrew 3. Install backplane 4. Warranty card 5. Quality Certificate
| |
| Carton box specification: 1. Quantity: 30pcs per carton box 2. Carton box size: Length:48cm Width :30cm Height:27cm 3. one Carton box weight: 9.6kg |
Packing & Delivery:
Packaging: Carton box or Aluminum box on your requirement
Delivery: Sample order in stock and 3-7 working days for bulk production.
Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
1. Where do I locate the natural gas detector?
The natural gas leak detector should be placed about 300mm below the ceiling and within 2 to 4 metres of the appliance or gas source.
The LPG Gas detector should be placed low down on a wall or panel within 300mm of the floor and within 2 to 4 metres of the appliance or gas source.
2.The following locations should be avoided.
Areas subject to strong ventilation such as open windows, exhaust fans etc
Areas subject to moisture.
Areas where the detector is covered or blocked from clean air.
Areas involving high temperatures or excessive amounts of smoke.
1.Basic Information:
a. Founded in 2004;
b. 10 million annual sales volume;
c. Located in Zhengzhou, Henan province, China;
d. ODM & OEM service available;
e. Factory price.
f. Delivery on time;
g.1-3 year warranty;
2.Mold Workshop:
a. 3000 square meter factory area;
b. 10 production lines;
c. 50 experience R&D engineers;
d. Strict production flow;
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
d. Your other ideas about gas detection tools, we can help you design and put them into production.
e. Different language versions, such as English, Russian, Chinese, etc. according to customers requirement.
