Home Usage propane and carbon monoxide leak dual gas detector with relay output
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Certification | CE |
| Model Number | HD1100 |
| Minimum Order Quantity | 50 Sets |
| Price | $10.00 - $25.00/Sets |
| Packaging Details | standard export carton box |
| Supply Ability | 1000 Set/Sets per Day |
| Network | NBiot | Color | White |
|---|---|---|---|
| Enclosure Material | ABS | Power Supply | AC110/220V |
| Plug | EU, USA Standard | Solenoid Valves | Optional |
| Detected Way | Natural Diffusion | Usage | Electronic Power Gas Leak Detector With Solenoid Valve |
| Gas | LPG, LNG, CO, CH4, Natural Gas, Combustible Gas Etc | Output | 12V DC Output, Connected With Valve |
| Warranty | Free Calibration And Free Warranty Within 2 Years | Port | Qingdao, Tianjin, Shanghai, Shenzheng, Hongkong |

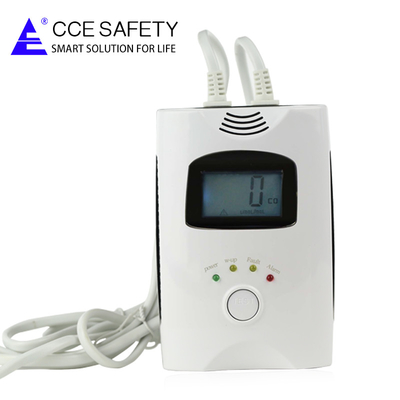

Home Usage propane and carbon monoxide leak dual gas detector with relay output
Product Description

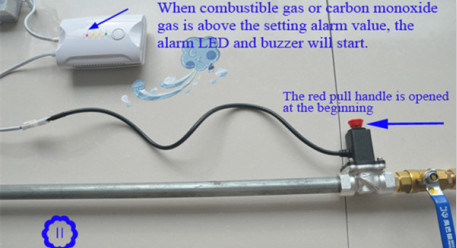

This detector is applied in detecting natural gas in the air at home. Once the gas concentration is over the pre-set alarm value,the device will give out audible-visual alarm to remind people to take safety measures or drive the ventilation device so that preventthe potential fire accident.
Features
- Advanced catalytic sensor
- Professional low profile design
- With special circuit (MCU processing control and SMT manufacture Technology)

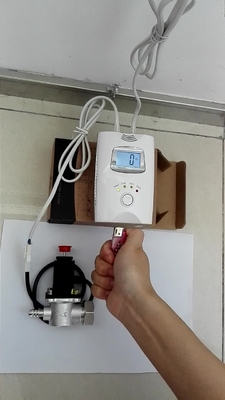

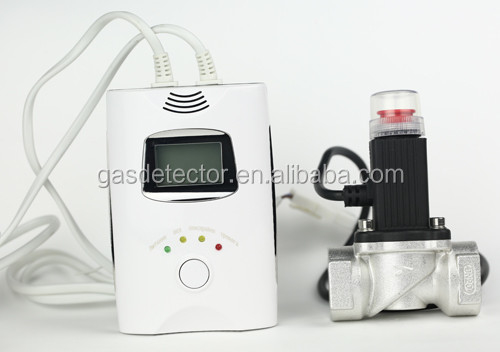

- Direct connection to a solenoid valve

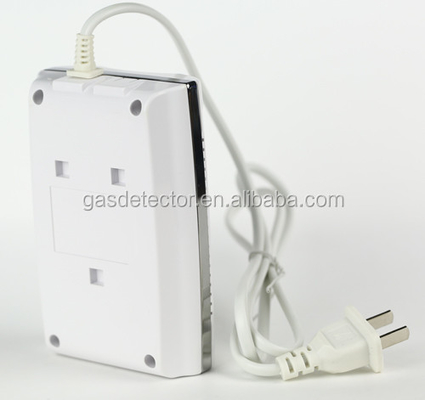

Installation: Unit plugs directly into any wall outlet
Operation: Clearly visible status indications LEDS (power, preheat, fault and alarm) and LCD digital display.
Technical Specification
| Model | HD1100 |
| Detect gas | natural gas |
| Detecting principle | Advanced semiconductor sensor & electro-chemical CO sensor |
| Setting Alarm | 7%LEL for natural gas/LPG, 100ppm/CO |
| Wiring | plug-in |
| Accuracy | +/-3%LEL |
| Audible alarm level | ≥80dB |
| Response time | T90≤30s |
| Operating voltage | AC220V/110V ±15% (as per different electric spec) |
| Power consumption | 2.5W |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 120mm (L)×82mm(W)×45mm(H) |
| Weight | 230g |
| Lifetime | 5 Years |
| Warranty | 2 Years |
Product Details
Company Introduction
More than 10 years industrial experience
ODM & OEM service
1-3 year warranty
3000 square meter factory area
10 production lines
50 experience R&D engineers
Products Overview
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.
Delivery: Sample order in stock and 3-7 working days for bulk production.
Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
FAQ
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
d. Your other ideas about gas detection tools, we can help you design and put them into production.
e. Different language versions, such as English, Russian, Chinese, etc. according to customers requirement.
——————————————————————————————————————————
