Home security LPG gas alarm safety device with 2 years warranty
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CHICHENG |
| Certification | CE |
| Model Number | HD1000 |
| Minimum Order Quantity | 50 Sets |
| Price | $6.00 - $12.00/Sets |
| Packaging Details | each set lpg gas detector will be packed with the export standard carton package. |
| Supply Ability | 2000 Set/Sets per Day lpg gas detector |
| Detected Gas | Lpg Gas | Color | White |
|---|---|---|---|
| Model | HD1000 | Response Time | T90<=30s |
| Alarm Level | 7%LEL | Temperature | -10℃~+55℃ |
| Audible Alarm Level | >=80dB | Size | 120mm (L)*82mm(W) *45mm(H) |
| Warranty | 2 Years | Weight | 230g |
| Port | Qingdao |
Home security LPG gas alarm safety device with 2 years warranty
LPG (Liquified Petroleum Gas) is a mixture of a number of hydrocarbons primarily consisting of mixes of propane and butane. LPG has a very low boiling point so in order to prevent evaporation the gas is stored under very high pressure where it becomes a liquid.
LPG is heavier than air so it will naturally tend to flow to the floor. This characteristic is why leaking LPG is so dangerous, particularly in the home , caravan or cabin.
As most people sleep in relatively small confined spaces (and low to the floor) the consequences of an LPG leak can be tragic.
Application:
It is optimized for use by professionals with explosive gas leak detection and it is ideally suited
for use in private or social housing, such as bedrooms, hotels, hospitals and even dormitory
rooms where the natural gas and LPG, CO pose a substantial hazard if a leak occurs.
1.High performance digital processor for high reliability.
2.High performance gas sensor promises high sensitivity.
3.Swift warm up & fast response
4.The circuit board adopt SMT process for the reliability
5. With temperature compensation, detecting results is more accurate.
6.Buzzer frequency changes as per different gas density.
7.The sensor can diagnose itself. Alerts users to replace the alarm when it is overdue.
8.The working life is about 5 years.
Technical Index:
| Model | HD1000 home lpg gas safety device |
| Detect gas | Combustible Gas, LPG, natural gas, CH4 |
| Detecting principle | Catalytic combustion sensor or electro-chemical detector |
| Setting alarm | 7%LEL for natural gas/LPG |
| Accuracy | +/-3%LEL |

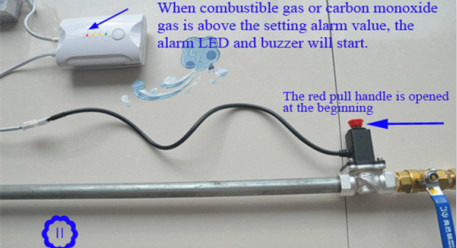

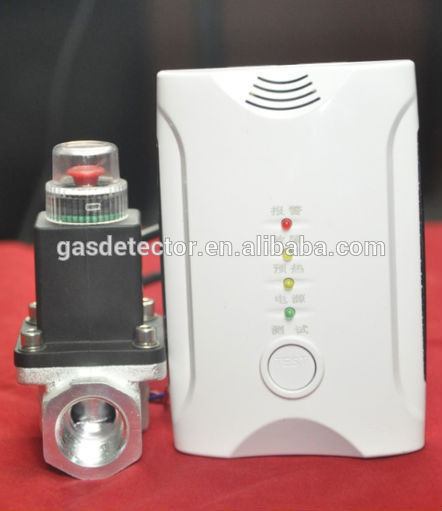

| Output | Shut off valve output or relay output |
| Wiring | Plug-in |
| Audible alarm level | >=80dB |
| Response time | T90<=30s. |
| Operating voltage | 110V-230VAC 50/60Hz |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 1×b×h, 120mm×82mm×45mm |
| Weight | 230g |
| Lifetime | 5 years |
| Warranty | 2 years |
The detail illustration :

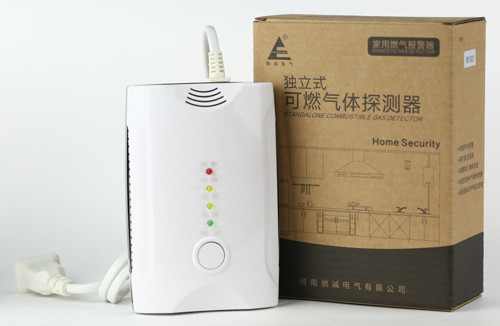

| The packaging includes:
1. Alarm with plug 2. Setscrew 3. Install backplane 4. Warranty card 5. Quality Certificate
| |
| Carton box specification: 1. Quantity: 30pcs per carton box 2. Carton box size: Length:48cm Width :30cm Height:27cm 3. one Carton box weight: 9.6kg |
Packing & Delivery:
Packaging: Carton box or Aluminum box on your requirement
Delivery: Sample order in stock and 3-7 working days for bulk production.
Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
1. Where do I locate the home lpg gas detector?
The LPG Gas detector should be placed low down on a wall or panel within 300mm of the floor and within 2 to 4 metres of the appliance or gas source.
The natural gas leak detector should be placed about 300mm below the ceiling and within 2 to 4 metres of the appliance or gas source.
2.The following locations should be avoided.
Areas subject to strong ventilation such as open windows, exhaust fans etc
Areas subject to moisture.
Areas where the detector is covered or blocked from clean air.
Areas involving high temperatures or excessive amounts of smoke.
1.Basic Information:
a. Founded in 2004;
b. 10 million annual sales volume;
c. Located in Zhengzhou, Henan province, China;
d. ODM & OEM service available;
e. Factory price.
f. Delivery on time;
g.1-3 year warranty;
2.Mold Workshop:
a. 3000 square meter factory area;
b. 10 production lines;
c. 50 experience R&D engineers;
d. Strict production flow;
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
d. Your other ideas about gas detection tools, we can help you design and put them into production.
e. Different language versions, such as English, Russian, Chinese, etc. according to customers requirement.
