HD1000 Wholesale OEM ODM home gas detector alarm from factory with relay output
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Certification | CE |
| Model Number | HD1000-CO |
| Price | $9.50/Pieces 1-99 Pieces |
| Packaging Details | cartons |
| Network | NBiot | Product Name | Wholesale OEM ODM Home Gas Detector Alarm |
|---|---|---|---|
| Sampling Method | Diffusion | Gas | CH4,LPG,LNG,CO |
| Alarm Point | 7%LEL(CH4,LPG), 100ppm(CO) | Audible | >80dB |
| Working Voltage | AC220V/110V ±15% | Working Environment | -10 °C~+55 °C |
| Humidity | <95% RH | Atmospheric Pressure | 86kpa~106kpa (indoor) |
| Size And Weight | 120 X 82 X 45 Mm, 230g |
HD1000 Hot sale home gas detector alarm from factory
Home gas detector alarm product description
This detector is applied in detecting combustible gas LPG, methane, CO in the air at home. Once the gas
concentration is over the pre-set alarm value,the device will send out audible-visual alarm to remind
people to take safety measures or drive the ventilation device to prevent the potential fire accident.
Home gas detector alarm features
- Advanced catalytic sensor
- Electro-chemical CO sensor
- Professional low profile design
- With special circuit (MCU processing control and SMT manufacture Technology)

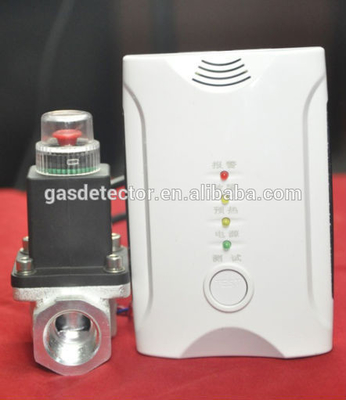

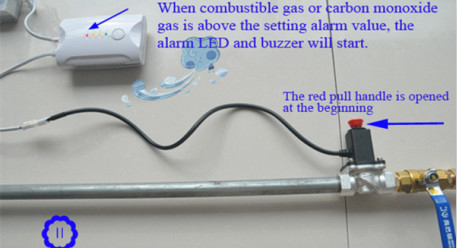

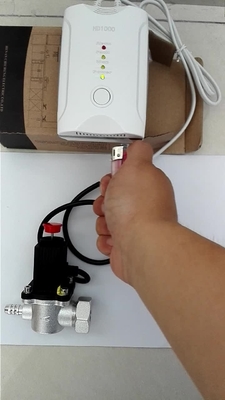

- Direct connection to a solenoid valve
Installation: Unit plugs directly into any wall outlet
Home gas detector alarm applications
Home gas detector alarm specification
| Model | HD1000 |
| Detect gas | LPG, natural gas, LNG and carbon monoxide (CO) |
| Detecting principle | Advanced semiconductor sensor & electro-chemical CO sensor |
| Setting Alarm | 7%LEL for natural gas/LPG, 100ppm/CO |
| Wiring | plug-in |
| Accuracy | +/-3%LEL |
| Audible alarm level | ≥80dB |
| Response time | T90≤30s |
| Operating voltage | AC220V/110V ±15% (as per different electric spec) |
| Power consumption | 2.5W |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 120mm (L)×82mm(W)×45mm(H) |
| Weight | 230g |
| Lifetime | 5 Years |
| Warranty | 2 Years |

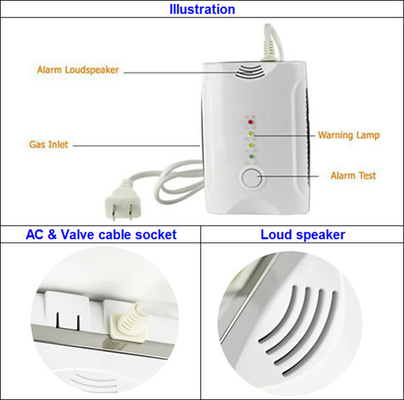

Home gas detector alarm product details
Company introduction
Product overview:
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.
Home gas detector alarm packing & delivery
Delivery: Sample order in stock and 3-7 working days for bulk production.
Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
FAQ:
1. Can i have a sample order?
A:Yes, you are welcome to have sample to test and check the quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
