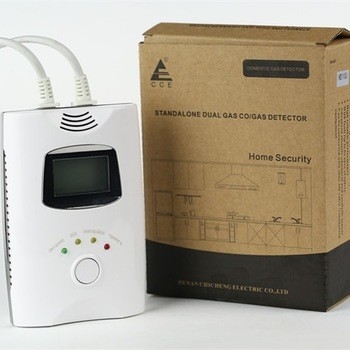

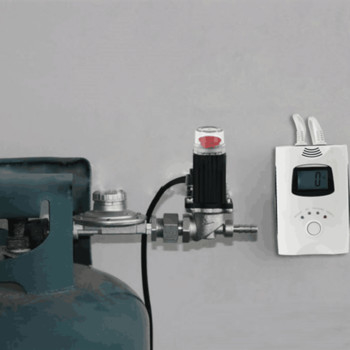

HD1100 relay output LCD display kitchen cooking gas leak detector with shut-off valve
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Certification | CE |
| Model Number | HD1100 |
| Price | $15.00 - $30.00/Units |
| Supply Ability | 5000 Unit/Units per Week |
| Network | NBiot | Sampling Method | Diffusion |
|---|---|---|---|
| Gas | CH4,LPG,LNG,CO | Alarm Point | 7%LEL(CH4,LPG), 100ppm(CO) |
| Audible | >80dB | Working Voltage | AC220V/110V ±15% |
| Working Environment | -10 °C~+55 °C | Humidity | <95% RH |
| Atmospheric Pressure | 86kpa~106kpa (indoor) | T90 | <30S |
| Size And Weight | 120 X 82 X 45 Mm, 250g |
HD1100 relay output LCD display kitchen cooking gas leak detector with shut-off valve
HD1100 series home gas detector alarm works alone which adopted high precision electronic components has excellent sensitivity, it can be installed in kitchen, nearby gas pipeline where gas leak exists, to ensure the health and safety of people.
Features:
♦ quick response
♦ SMT pcb, stable performance
♦ Buzzer frequency changes along with the gas leak concentration

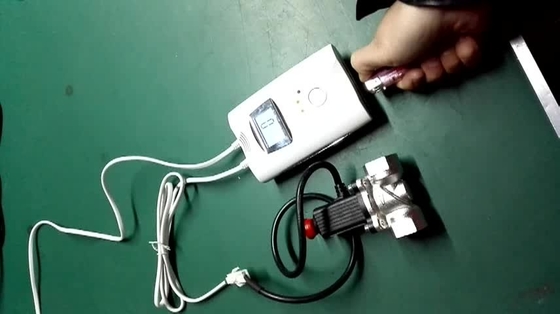

♦ relay signal output and solenoid valve is available if necessary
♦ service life of detector over five years

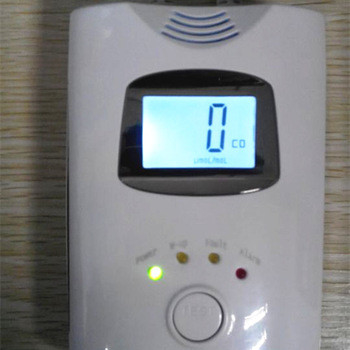

♦ LCD screen display the readings
Technical specification:
| Model | HD1100 relay output LCD display kitchen cooking gas leak detector with shut-off valve |
| Gas | Natural gas,LPG,LNG/CO |
| Alarm point | 7% LEL natural gas and lpg, 100ppm for CO |
| Audible | >80dB |
| Response | T90<30S |
| Operating voltage | AC220V/110V ±15% |
| work temperature | -10~+55 degrees |
| Humidity | ≤95%RH, no condensation |
| Atmospheric pressure | 86kPa~106kPa (indoor) |
| Dimension | 120 x 80 x 40 mm |
| Weight | 230 g |
| Warranty | 2 years |
1. Carton box: size 15.5*12*5.5cm gross weight 300g/pc
2. Shipping by: DHL, TNT, FEDEX, EMS and BY SEA if necessary
packing of HD1100 relay output LCD display kitchen cooking gas leak detector with shut-off valve
1, OEM
2, Development and design according to customers requirements.
3, Delivery on time.
4, 1 year warranty
1, Founded in 2004, located in zhengzhou, henan province, central China.
2, R&D team: 50 engineers
3, Annual sales: 20000 units detectors and controll pannels (2014)
4, ISO9001-2000, CE
5, Main products: portable and fixed gas detectors, multi channel control pannels.
1, Payment terms: T/T, western union, paypal, L/C, money gram
2, Delivery: 2-3 working days
3, Calibration: one year, you can calibrate it in your country or send the sensor back to us.
