Kitchen Cooking CE Approved LPG Natural Gas Leaking Sensor Gas Detector
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Certification | CE |
| Model Number | HD1000 |
| Minimum Order Quantity | 50 Sets |
| Price | $5.00 - $10.00/Sets |
| Packaging Details | in standard export carton package. |
| Supply Ability | 2000 Set/Sets per Day |
| Network | NBiot | Color | White |
|---|---|---|---|
| Enclosure Material | ABS | Power Supply | 110/220VAC |
| Plug | EU, USA Standard | Solenoid Valves | Brass Or Aluminum (optional) |
| Detected Way | Natural Diffusion | Usage | Household LPG Gas Detector Alarm With EN50291 |
| Gas | LPG, LNG, CH4, CO, Natual Gas, Combustible Gas Etc. | Output | 12V DC Output, Connected With Valve |
| Warranty | Free Calibration And Free Warranty Within 2 Years | Port | Tianjin, Qingdao, Shanghai, HK Etc. |
Kitchen Cooking CE Approved LPG Natural Gas Leaking Sensor Gas Detector
HD1000 is a Kitchen Cooking CE Approved LPG Natural Gas Leaking Sensor Gas Detector. It adopts advanced gas-sensitive elements which with advanced gas detection industrial electric technique and technology. This alarm for home use is applied in detecting combustible gas LPG, methane in the air at home. Once the gas concentration is over the pre-set alarm value. This detector will give out audible-visual alarm to remind people to take safety measures or drive the ventilation device so that the dangerous fire disaster can be prevented, people can be safe at home.
Kitchen Cooking CE Approved LPG Natural Gas Leaking Sensor Gas Detector:
Application: HD1000 Detector is optimized for use by professionals with explosive gas leak detection and it is ideally suited for use in private or social housing, such as bedrooms, hotels, hospitals and even dormitory rooms where the natural gas and LPG pose a substantial hazard if a leak occurs.
Features & Benefits:
Detecting gas: natural/methane gas and propane gas, coal gas etc combustible gas.
High reliability--Catalytic combustion gas sensor
--professional low profile design
--With special circuit (MCU processing control and SMT manufacture Technology).
--Comply to GB15322.2-2003.
Easy to Install--Unit plugs directly into any wall outlet.
Easy operation--Clearly visible status indications LEDS (power, preheat, fault and alarm).
--Button for test and rest: Test the alarm electronics and reset the unit during alarm.
--Loud 80dB at 1m
Low total cost--Ideal for easy installation

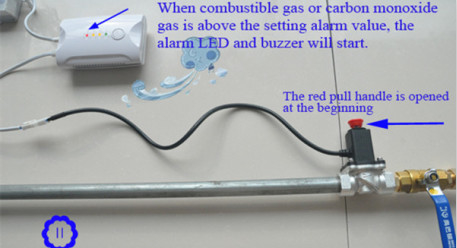

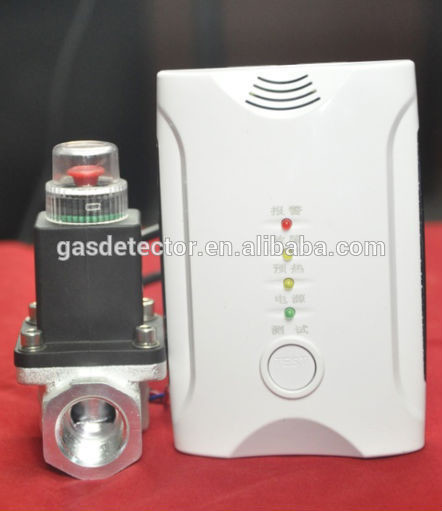

--Direct connection to a solenoid valve
--5 years working life with 2 year guarantee.
Designed for residential environment--Slim,small, compact design with stylish features, ideal for residential setting and modern decorations.
Technical Specifications:
| Model | HD1000 |
| Detect gas | Combustible Gas (LEL) or Carbon Monoxide (CO) |
| Detecting principle | Catalytic combustion sensor or electro-chemical detector |
| Setting alarm | 7%LEL for natural gas/LPG, 100umol/mo/CO. |
| Accuracy | +/-3%LEL |
| Output | Shut off valve output or relay output |
| Wiring | Plug-in |
| Audible alarm level | >=80dB |
| Response time | T90<=30s. |
| Operating voltage | 110V-230VAC 50/60Hz |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 1×b×h, 120mm×82mm×45mm |
| Weight | 330g |
| Lifetime | 5 years |
| Warranty | 2 years |
Specification of all the products :
Packaging & shipping:
Size of packaging box is 15.5*12*5.5cm. Net weight is 0.3kg/pc. Gross weight is 0.5kg/pc.
-Fast delivery:
Sample order in stock and 3-7 working days for bulk production.
-Payment:
You can pay for the order via T/T, Western Union, PayPal & Money Gram.
-Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You also can choose your own shipping forwarder.
Installation Position:
The position should be installed on the wall indoors, where is 1.5--4 meters from the gas appliance or gas source. Please install the detector upon the gas type. For example:
- manufactured gas, natural gas and carbon monoxide are lighter than air, you can install the detector on the wall 0.3 meters from the ceiling.
- While liquefied petroleum gas (LPG) is heavier than air, you can install it on the wall about 0.3 meters above the floor.
