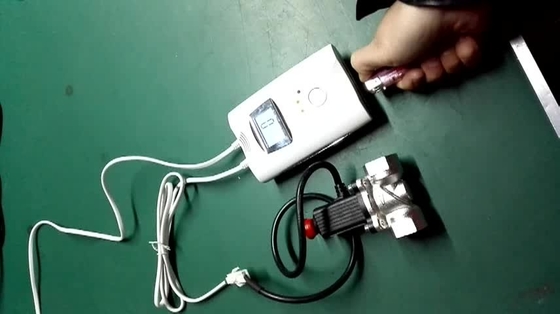

Gas cylinder leak detector,lpg leak detector with 9V backup battery and shutoff valve for lpg gas
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Certification | CE |
| Model Number | HD1100 |
| Price | $12.00/Units 1-99 Units |
| Packaging Details | Carton box |
| Network | NBiot | Product | Gas Cylinder Leak Detector |
|---|---|---|---|
| Color | White | MOQ | 50 |
| Size | 120mm*82mm*45mm | Screen | Back Lit LCD |
| Warranty | 2 Year | Gas Detected | Lpg |
| Lifetime | >5 Year | Working Voltage | AC220V Or 110V |
| Sensor | Catalytic Combustion Sensor |
Gas cylinder leak detector,lpg leak detector with 9V backup battery and shutoff valve for lpg gas
LPG (Liquified Petroleum Gas) is a mixture of a number of hydrocarbons primarily consisting of mixes of propane and butane. LPG has a very low boiling point so in order to prevent evaporation the gas is stored under very high pressure where it becomes a liquid.
LPG is heavier than air so it will naturally tend to flow to the floor. This characteristic is why leaking LPG is so dangerous, particularly in the home , caravan or cabin.
As most people sleep in relatively small confined spaces (and low to the floor) the consequences of an LPG leak can be tragic.
Features of gas cylinder leak detector:
1.large backlit LCD screen displays lpg Gas value in turns
2.Four LED lights shows the alarm working status
3.Fashion design for modern decoration.
4.Easy to install, plug in design with backup battery
5.Audible and visual alarm, voice alarm to remind you of danger
6.Relay output or shut-off valve optional, ZIGBEE or GPRS is optional
Technical index of gas cylinder leak detector:
| Product | gas cylinder leak detector |
| Model | HD 1100 |
| Audible alarm | ≥80 dB |
| Response | T90≤30s |
| Operating voltage | AC220V/110V±15%,with back-up battery |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH(no condensation) |
| Atmospheric pressure | 86kPa-106kPa (indoor) |
| Size | 1*b*h,120mm*82mm*45mm |
| Weight | 250g |
| warranty | 2 years |
Sample order in stock and 3-7 working days for bulk production.
-Payment:
You can pay for the order via T/T, Western Union, PayPal & Money Gram.
-Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You also can choose your own shipping forwarder.
a. Customer brand(law allowance) can be made on the sticker.
b. Customized gas detection tools are welcomed
c. Customized color box.
d. Any your idea gas detection tool we can help you to design and put it into production
a.All products will have been strictly Quality Checked before packing.
b.All products will be well packed before shipping.
c.All our products have 1 year warranty.And we're sure the product will be free from maintenance within warranty period.
Our Advantage on company:
1.CCE takes 'protecting and safeguarding human beings as her responsibility'.

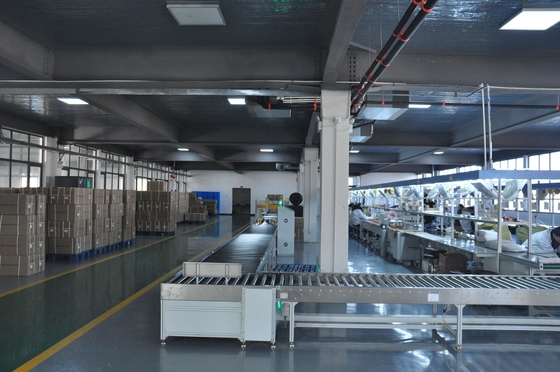

2.CCE has steady manufacturing machines.
3.CCE has professional R&D team.
4.CCE's manage team and idea is dynamic, young and full of passion.
5.CCE has her own industrial zone in Henan province.
6. CCE has special certifications.
- Will my current smoke detector alert me if there is a gas leak ?
No! Smoke detectors work on the priciple of detecting particulates in the air. Leaking gas will not trigger a smoke alarm.
- I use both LPG and Natural gas. Can I install a single gas leak detector to detect both an LPG and a Natural gas leak.. ?
No! The complex detector systems in the alarm are specific for each type of gas. Also as LPG is heavier than air and natural Gas is lighter than air, placing the alarm low to the floor will mean it would be unlikely to detect a natural gas leak. Conversely placing an alarm on the ceiling is unlikely to detect an LPG leak (unless the gas leak is a massive one and or has continued for a long time.
- How long do the units last ?
Even though the units will operate for at least 5 years we recommend 5 years as the replacement frequency to guarantee optimum performance of the sensor.
- Where do I locate the unit... ?
The LPG gas leak detector should be placed low down on a wall or panel within 300mm of the floor and within 2 to 4 metres of the appliance or gas source.
The Natural Gas leak detector should be placed about 300mm below the ceiling and within 2 to 4 metres of the appliance or gas source.
- The following locations should be avoided.
Areas subject to strong ventilation such as open windows, exhaust fans etc
Areas subject to moisture.
Areas where the detector is covered or blocked from clean air.
Areas involving high temperatures or excessive amounts of smoke.
