Carbon Monoxide Alarm CO Gas Detection System With Shut-off Valve
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Chicheng |
| Certification | CE |
| Model Number | HD1100 |
| Minimum Order Quantity | 50 Pieces |
| Price | $10.00 - $25.00/Pieces |
| Packaging Details | in standard export carton package. |
| Supply Ability | 1000 Piece/Pieces per Day |
| Enclosure Material | ABS | Power Supply | 110/220VAC |
|---|---|---|---|
| Plug | EU, USA Standard | Solenoid Valves | Optional |
| Detected Way | Natural Diffusion | Usage | Carbon Monoxide Alarm CO Gas Detection System With Shut-off Valve |
| Gas | LPG, LNG, CO, CH4, Natural Gas, Combustible Gas Etc | Output | 12V DC Output, Connected With Valve |
| Warranty | Free Calibration And Free Warranty Within 2 Years | Port | Tianjin, Qingdao, Shanghai, Hong Kong Etc. |

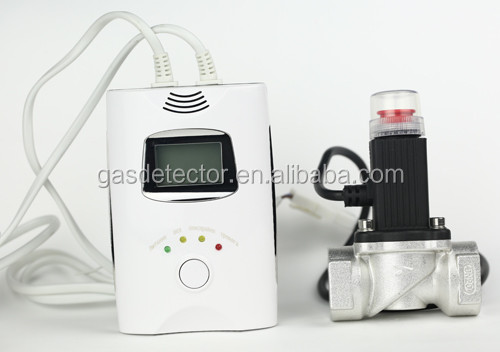

Carbon Monoxide Alarm CO Gas Detection System With Shut-off Valve

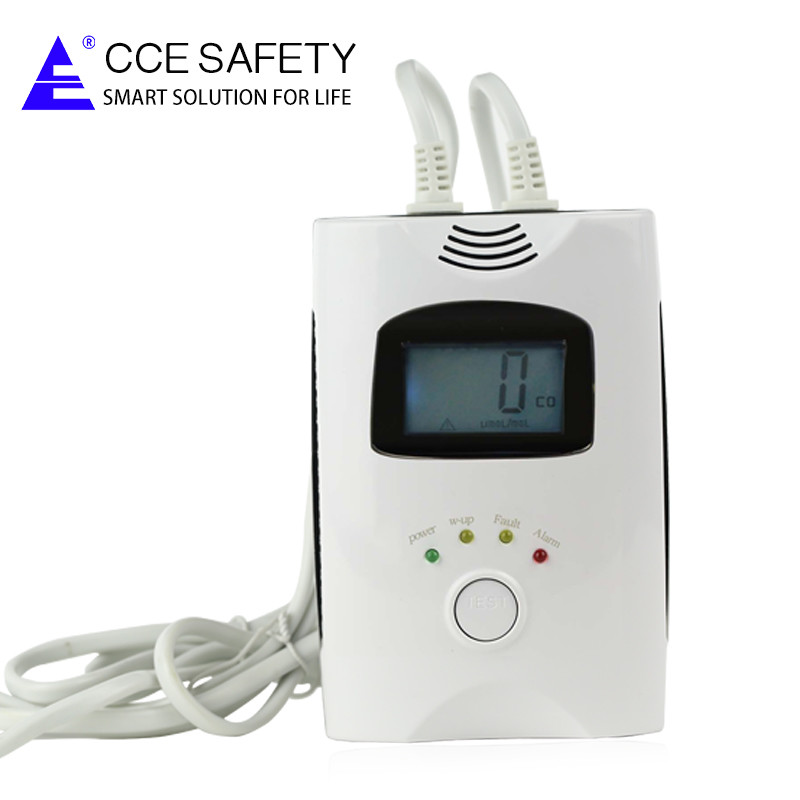

HD1100 is a Carbon Monoxide Alarm CO Gas Detection System With Shut-off Valve, adopting advanced gas-sensitive element with advanced gas detection industrial electric technique and technology. This alarm is applied in detecting combustible gas, LPG, methane, CO in the air at home. Once the gas concentration is over the pre-set alarm value, the detector will give out audible-visual alarm to remind people to take safety measures or drive the ventilation device so that the dangerous fire disaster can be prevented, people can be safe at home.
Carbon Monoxide Alarm CO Gas Detection System With Shut-off Valve:
Application: HD1100 Detector is optimized for use by professionals with the two deadly threads--carbon monoxide and natural gas leak detection and it is ideally suited for use in private or social housing, such as bedrooms, hotels, hospitals and even dormitory rooms where the carbon monoxide or natural gas pose a substantial hazard if a leak occurs.
Features & Benefits:
High reliability—Advanced catalytic sensor
--Electro-chemical CO sensor
--Professional low profile design
--With special circuit (MCU processing control and SMT manufacture Technology).
-- Execute criterion: GB15322, EN50291, UL2034, EN50194

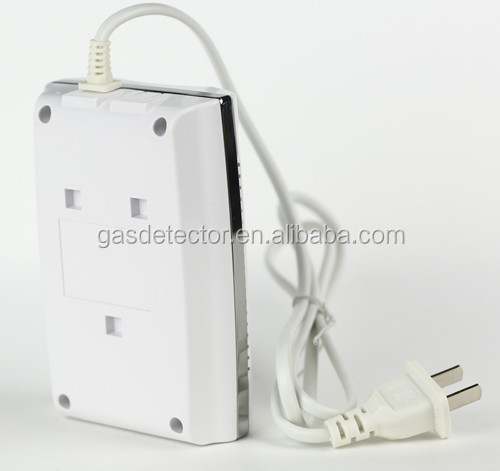

Easy to Install---Unit plugs directly into any wall outlet with power cord
Easy operation—Clearly visible status indications LEDS (power, preheat, fault and alarm) and LCD digital display.
-- Button for test and rest: Test the alarm electronics and reset the unit during alarm.
--Loud 85dB at 1m
Low total cost—Ideal for easy installation

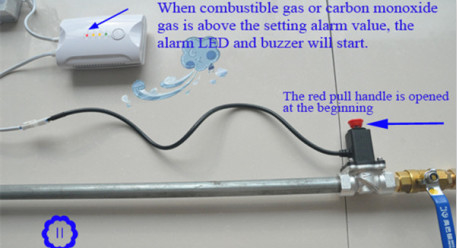

--Direct connection to a solenoid valve
--5 years working life with 2 year guarantee.
Designed for residential environments—Slim, small, compact design with stylish features, ideal for residential setting and modern decorations.
Technical Specifications:
| Model | HD1100 |
| Detect gas | Methane, LPG, natural gas, combustible gas (LEL) and carbon monoxide (CO) |
| Detecting principle | Advanced semiconductor sensor & electro-chemical CO sensor |
| Setting alarm | 7%LEL for natural gas/LPG, 50ppm/CO |
| Wiring | plug-in |
| Accuracy | +/-3%LEL |
| Audible alarm level | >=85dB |
| Response time | T90<=30s |
| Operating voltage | AC220V/110V ±15% (as per different electric spec.) |
| Power consumption | 2.5W |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 1×b×h, 120mm×82mm×45mm |
| Weight | 330g |
| Lifetime | 5 Years |
| Warranty | 2 Years |
Specification comparison of all the products :
Packaging & shipping :
Size of packaging box is 15.5*12*5.5cm. Net weight is 0.3kg/pc. Gross weight is 0.5kg/pc.
-Fast delivery:
Sample order in stock and 3-7 working days for bulk production.
-Payment:
You can pay for the order via T/T, Western Union, PayPal & Money Gram.
-Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You also can choose your own shipping forwarder.
Our service:
a. All products will have been strictly Quality Checked before packaging.
b. All products will be well packaged before shipping.
c. All the similar products have two years warranty. The calibration within one year is FOC with the fright cost charged. And we promise the products will be free from maintenance within warranty period.
Installation Position:
The position should be installed on the wall indoors, where is 1.5--4 meters from the gas appliance or gas source. Please install the detector upon the gas type. For example:
- manufactured gas, natural gas and carbon monoxide are lighter than air, you can install the detector on the wall 0.3 meters from the ceiling.
- While liquefied petroleum gas (LPG) is heavier than air, you can install it on the wall about 0.3 meters above the floor.
Company Information

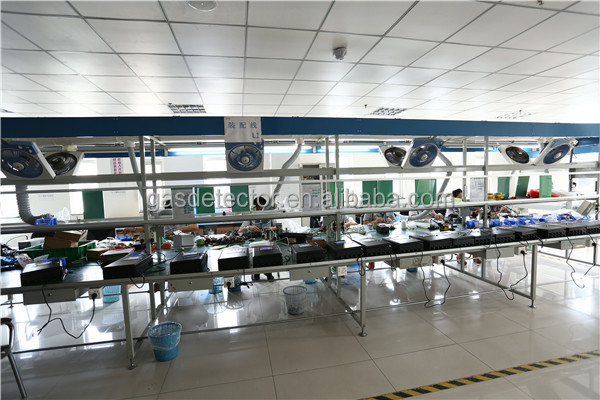

Henan Chicheng Electric Co., Ltd is a ISO9001-2000 certified high-tech import and export company and also the government permitted gas detecting device manufacture with Measurement of production License (MC), The explosion-proof certificate (EX) and Fire type certificate (CNAS) approved, we are in in the research and marketing a range of portable and fixed gas detection products, industrial process automation control, safety protection and analytical instrument and we are in Zhengzhou Henan China.
We aim at providing customers quality product. Each properly suited to its task, timely service and support. Sincerely welcome customers worldwide.
Your questions will be highly appreciated, please feel free to contact us.
